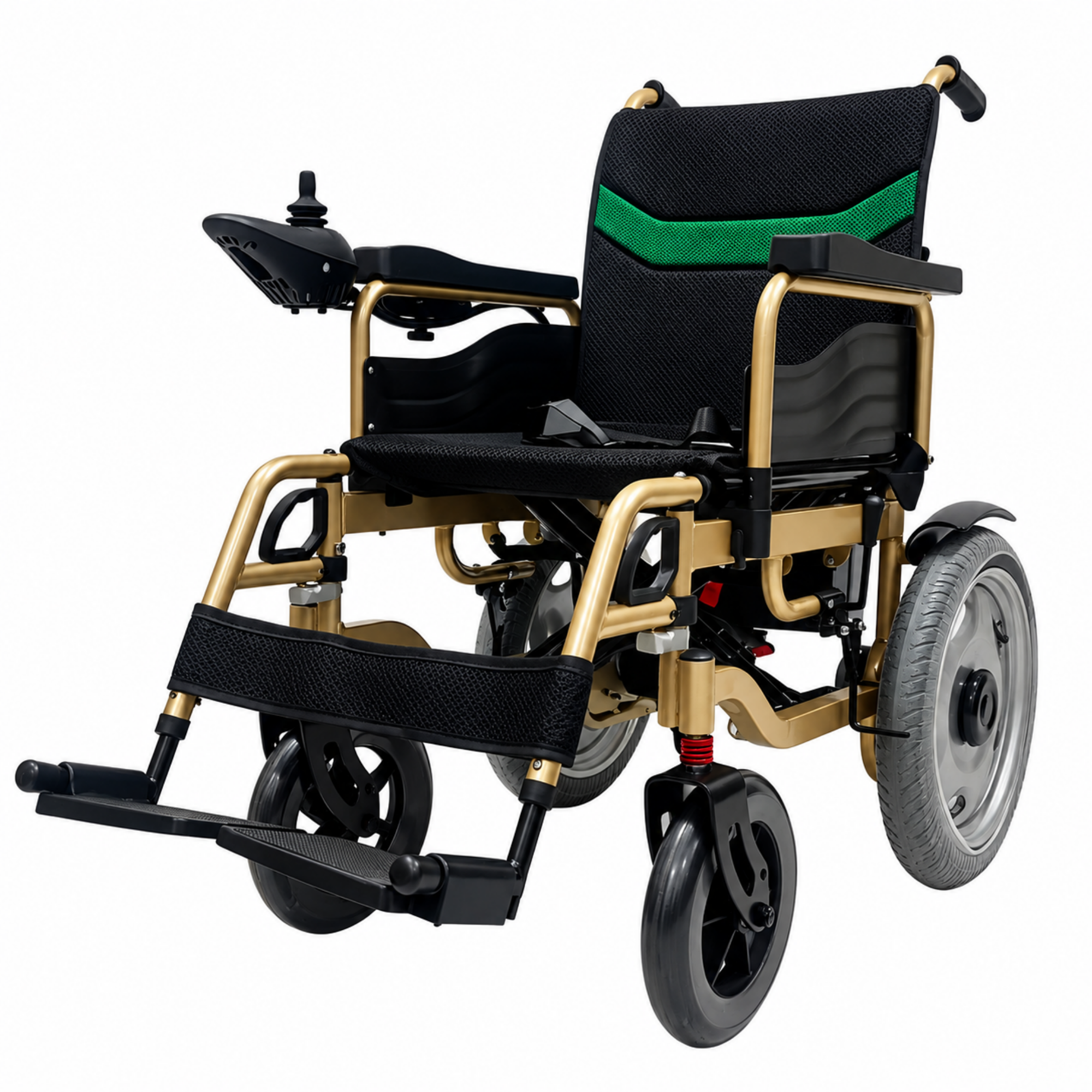

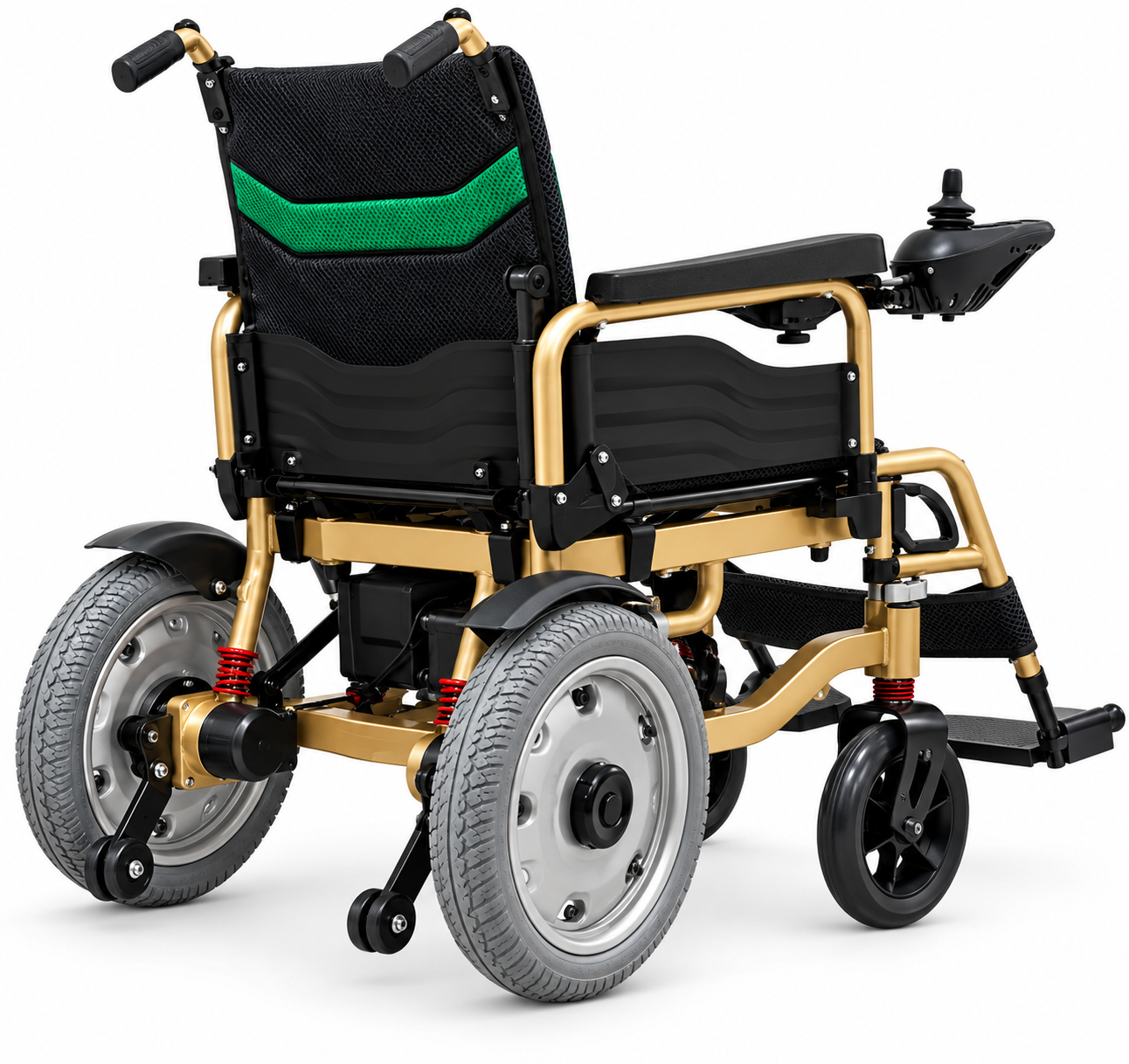

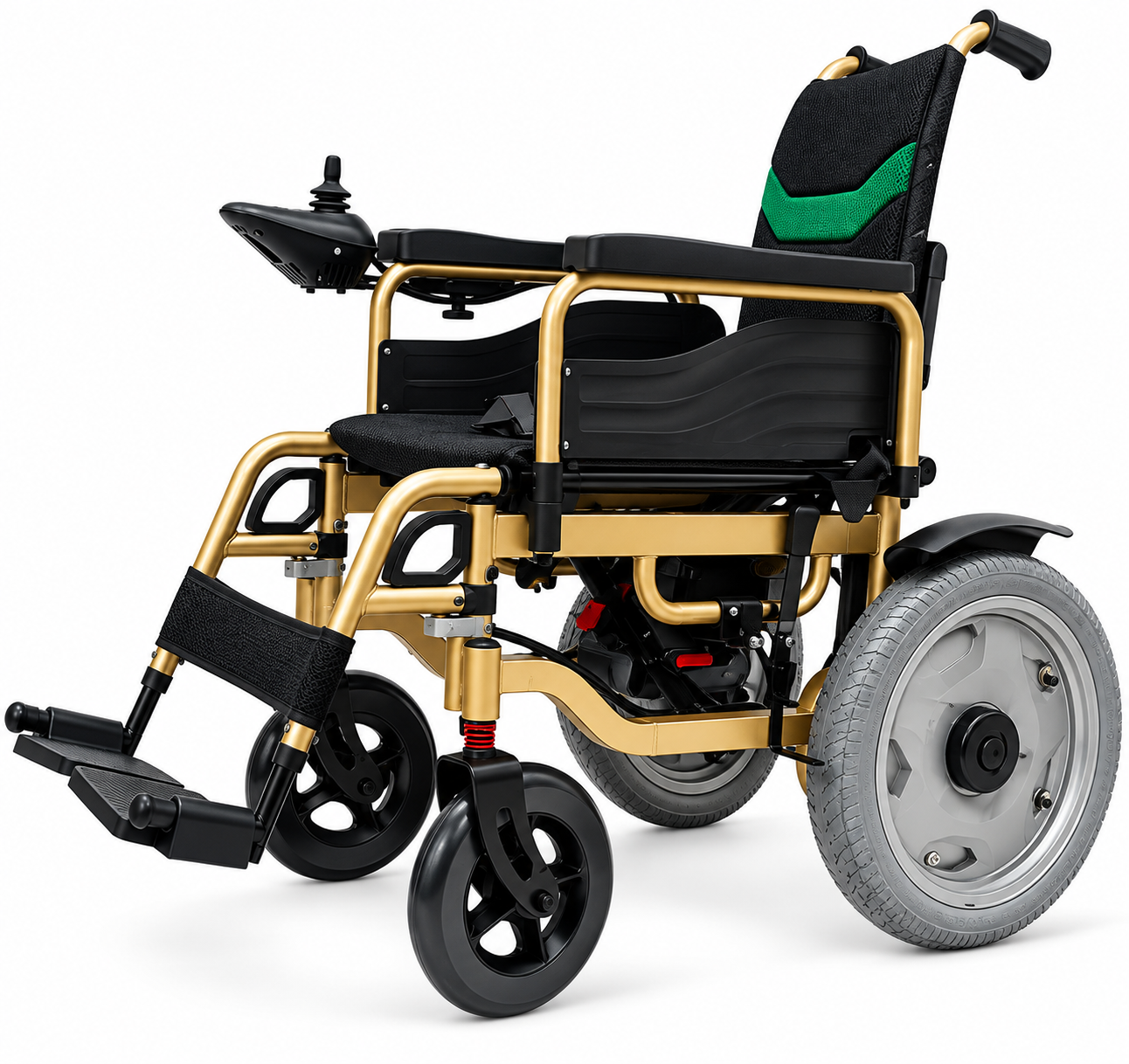

The Kangli Medical Steel Tube Electric Wheelchair combines a foldable, powder-coated steel frame with dual 250W motors and a 24V 12Ah lead-acid battery. It has a maximum load capacity of 100 kg and a maximum speed of up to 6 km/h. A 450 mm seat width, flip-up armrests and detachable leg rests provide practical features for daily mobility and routine care.
Foldable steel frame: The powder-coated steel tube frame folds to 810 × 400 × 720 mm for storage and transport planning.
Dual 250W motors: Two motors work with a 24V 45A controller and electronic braking system.
24V 12Ah lead-acid battery: The listed theoretical driving range is at least 15 km. Actual range varies with user weight, terrain, gradients, temperature and battery condition.
Removable mesh upholstery: The breathable mesh seat cushion and backrest can be removed for cleaning and maintenance.
Convenient access: Flip-up armrests and adjustable, detachable leg rests with a 180° swing-away design allow easier access for transfers.
Foot and calf support: Engineering-plastic anti-slip footplates and calf straps support the lower legs.
Wheel configuration: 10-inch solid PU front wheels require no inflation; 16-inch pneumatic rear wheels require pressure checks according to the operating manual.
Control and stability features: The wheelchair includes a slope-holding controller, electronic brakes and anti-tip wheels. Follow the operating manual for permitted use conditions.
| Overall dimensions | 1130 × 660 × 930 mm |
|---|---|
| Folded dimensions | 810 × 400 × 720 mm |
| Seat width | 450 mm |
| Width between armrests | 450 mm |
| Front seat height | 500 mm |
| Backrest height | 400 mm |
| Armrest height | 220 mm |
| Frame material | Steel tube with electrostatic powder coating |
|---|---|
| Front wheels | 10-inch solid PU |
| Rear wheels | 16-inch pneumatic |
| Motors | 250W × 2, with electronic braking |
| Controller | 24V 45A |
| Battery | 24V 12Ah lead-acid |
| Charger | 24V 2A |
| Maximum load capacity | 100 kg |
|---|---|
| Gross weight with battery | 42 kg |
| Net weight without battery | 33 kg |
| Maximum speed | ≤ 6 km/h |
| Theoretical driving range | ≥ 15 km |
| Minimum turning radius | 1200 mm |
| Climbing ability | ≥ 6° |
| Obstacle climbing height | ≥ 40 mm |
| Ditch crossing width | 100 mm |
| Level-road braking distance | ≤ 1.5 m |
|---|---|
| Braking distance on maximum safe slope | ≤ 3.6 m (6°) |
| Slope-holding performance | 9° |
| Static stability | ≥ 9° |
| Dynamic stability | ≥ 6° |
Specification notes: The figures above retain the published product specifications. Driving range is a theoretical value, not a guarantee for every journey. Gross and net weights use the original specification labels; request confirmed handling and packed shipping weights before arranging transport. Ask for the operating manual and test conditions when assessing braking, gradient and stability figures.
Check fit and access: Compare the 450 mm seat width, 660 mm overall width and 1200 mm turning radius with the intended user and environment.
Plan storage and handling: Check the folded dimensions and confirm the weight to be lifted, the carton size and any handling requirements.
Confirm the charging setup: Verify the charger input rating, plug type and instructions for the destination market.
Review product documentation: Request the manual, available test reports and any required compliance documents for the exact model and destination.
For a quotation, send your required quantity, destination country or port, intended configuration and documentation requirements. Ask us to confirm available packaging, labelling, spare parts, delivery terms and any requested customisation before ordering.
Folded product dimensions are not carton dimensions. Request the confirmed carton size, packed gross weight and battery shipping information when comparing freight options. Confirm the applicable warranty terms, service process and replacement-part availability with your quotation.
Yes. The steel tube frame folds to 810 × 400 × 720 mm. Check the storage space and handling requirements before transport.
The listed maximum load capacity is 100 kg.
It uses two 250W motors with an electronic braking system and a 24V 45A controller.
The listed battery is a 24V 12Ah lead-acid battery, with a 24V 2A charger. Confirm the charger input rating and plug type for your destination.
The theoretical driving range is ≥ 15 km. Actual range depends on load, terrain, gradients, temperature and battery condition.
The listed maximum speed is ≤ 6 km/h.
The published specifications list a gross weight with battery of 42 kg and a net weight without battery of 33 kg. Request confirmed handling and packed shipping weights for your order.
The armrests flip up. The leg rests are adjustable, detachable and designed to swing away through 180°.
Yes. The breathable mesh seat cushion and backrest are removable for cleaning and maintenance. Follow the care instructions supplied with the product.
The 10-inch front wheels use solid PU tyres. The 16-inch rear wheels use pneumatic tyres and require pressure checks according to the operating manual.
Send your requested configuration, labelling and packaging requirements with your order quantity. Availability, order requirements and lead time must be confirmed in the quotation.
Contact Kangli Medical with the product name, quantity, destination and any configuration or document requirements. Request pricing, delivery terms, packaging details and after-sales terms for your order.
Discuss your quantity, destination and configuration requirements with Kangli Medical.
