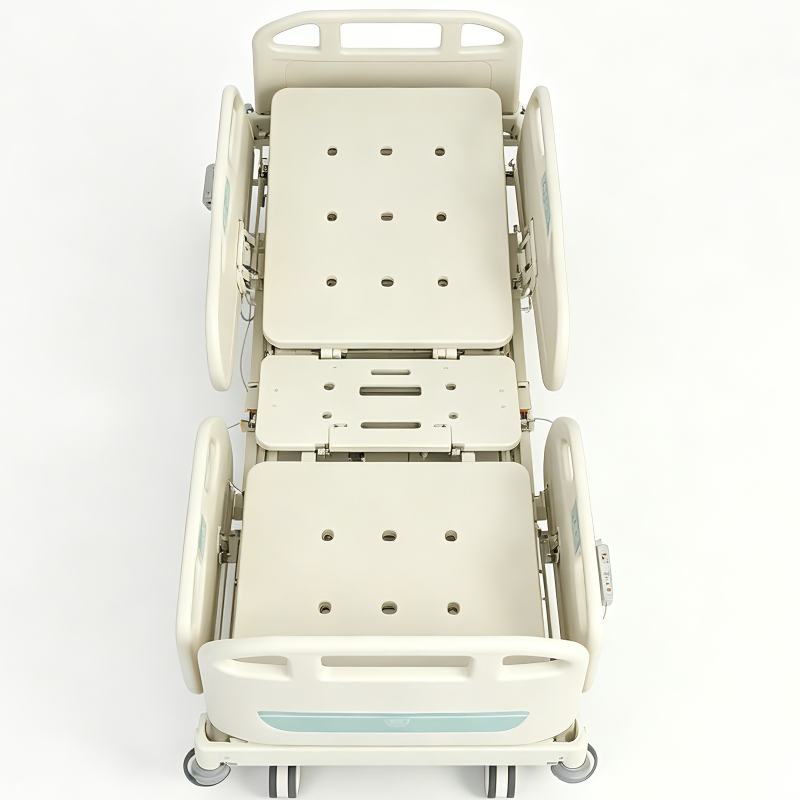

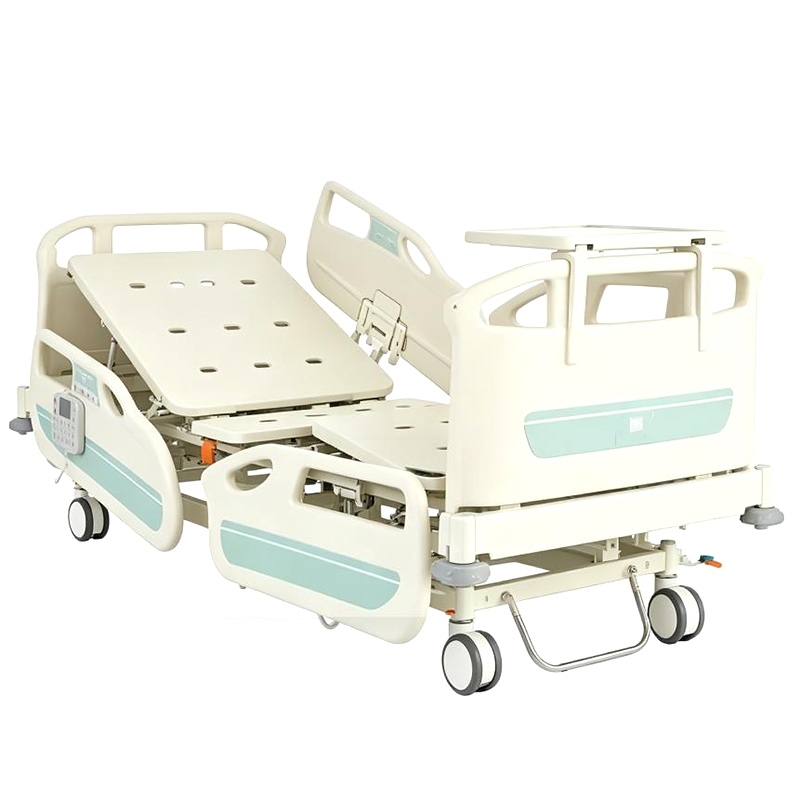

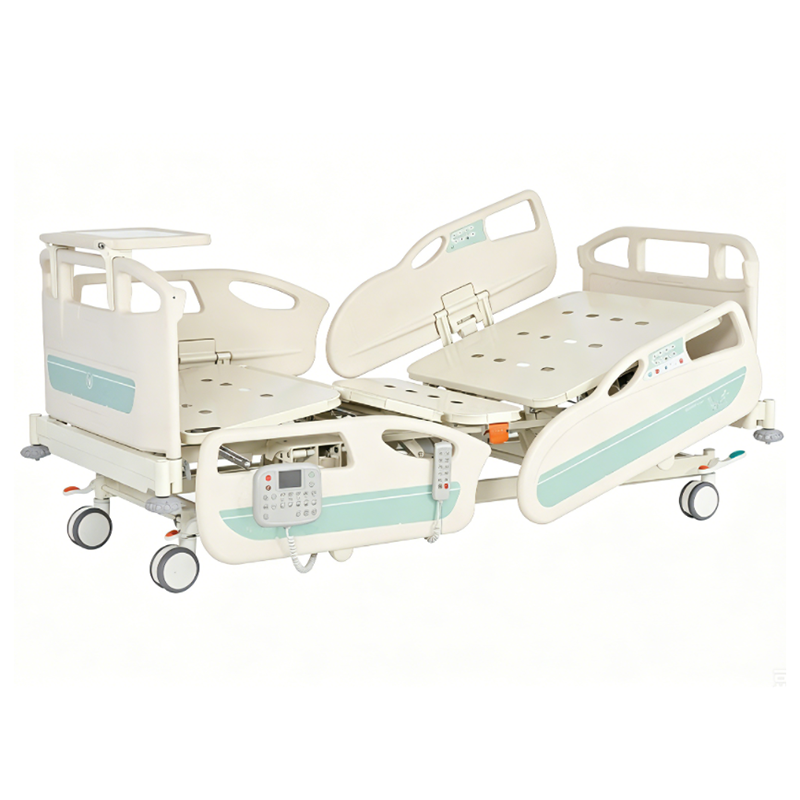

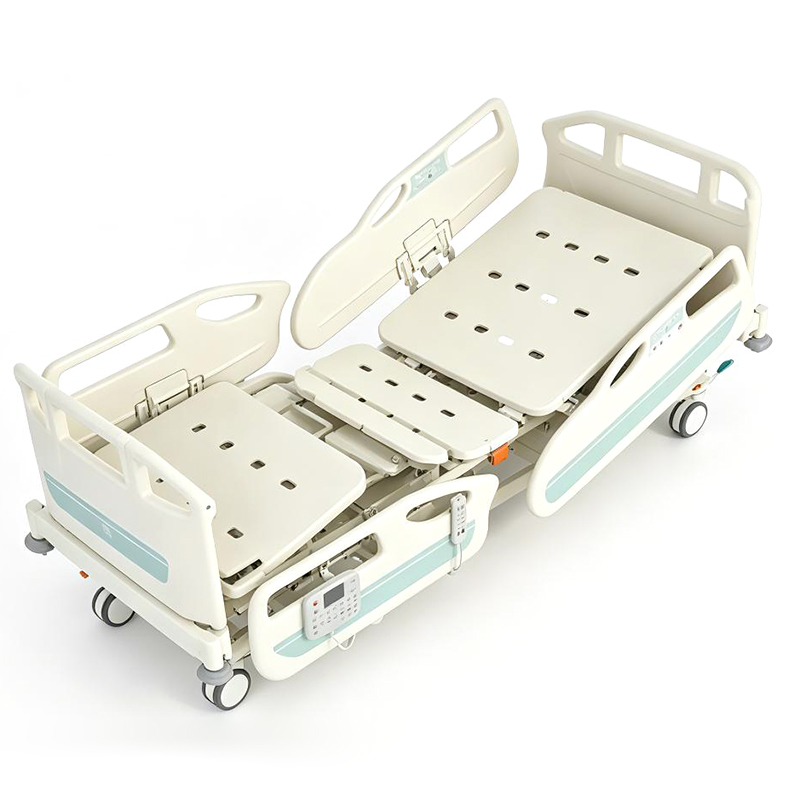

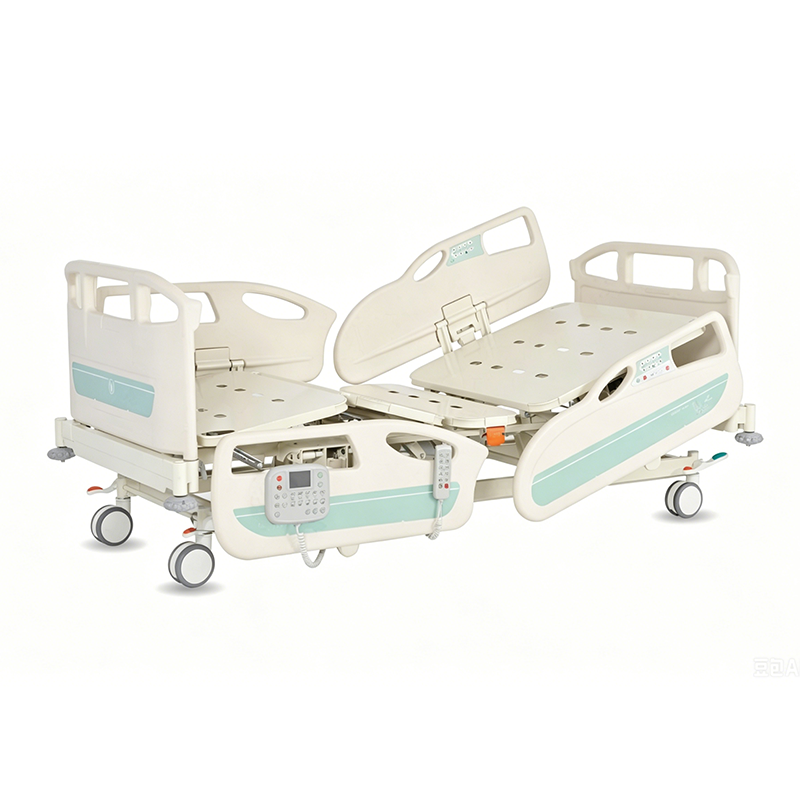

5-Function ICU Bed with Built-in Weight Scale

Advanced Electric ICU Bed for Critical-Care Environments

This five-function electric ICU bed combines essential electric positioning, a standard built-in patient weighing system, emergency CPR controls, cardiac-chair positioning, UPS backup power and central braking in one integrated critical-care platform.

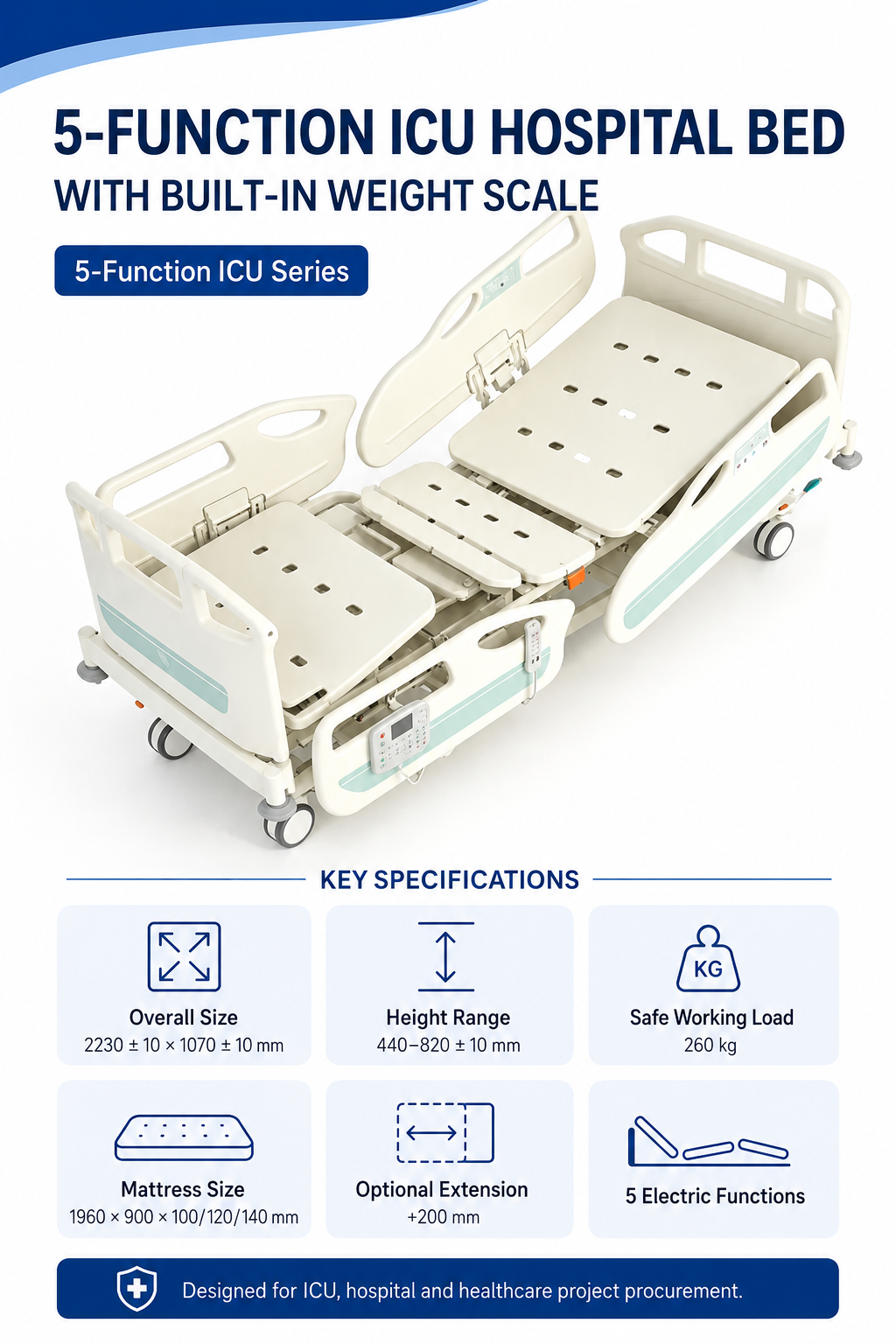

With a 260 kg safe working load and a 440–820 mm height-adjustment range, it is designed for intensive care units, critical-care wards, emergency departments, hospital projects, government tenders, medical-equipment distributors and OEM/ODM procurement.

Core Technical Specifications

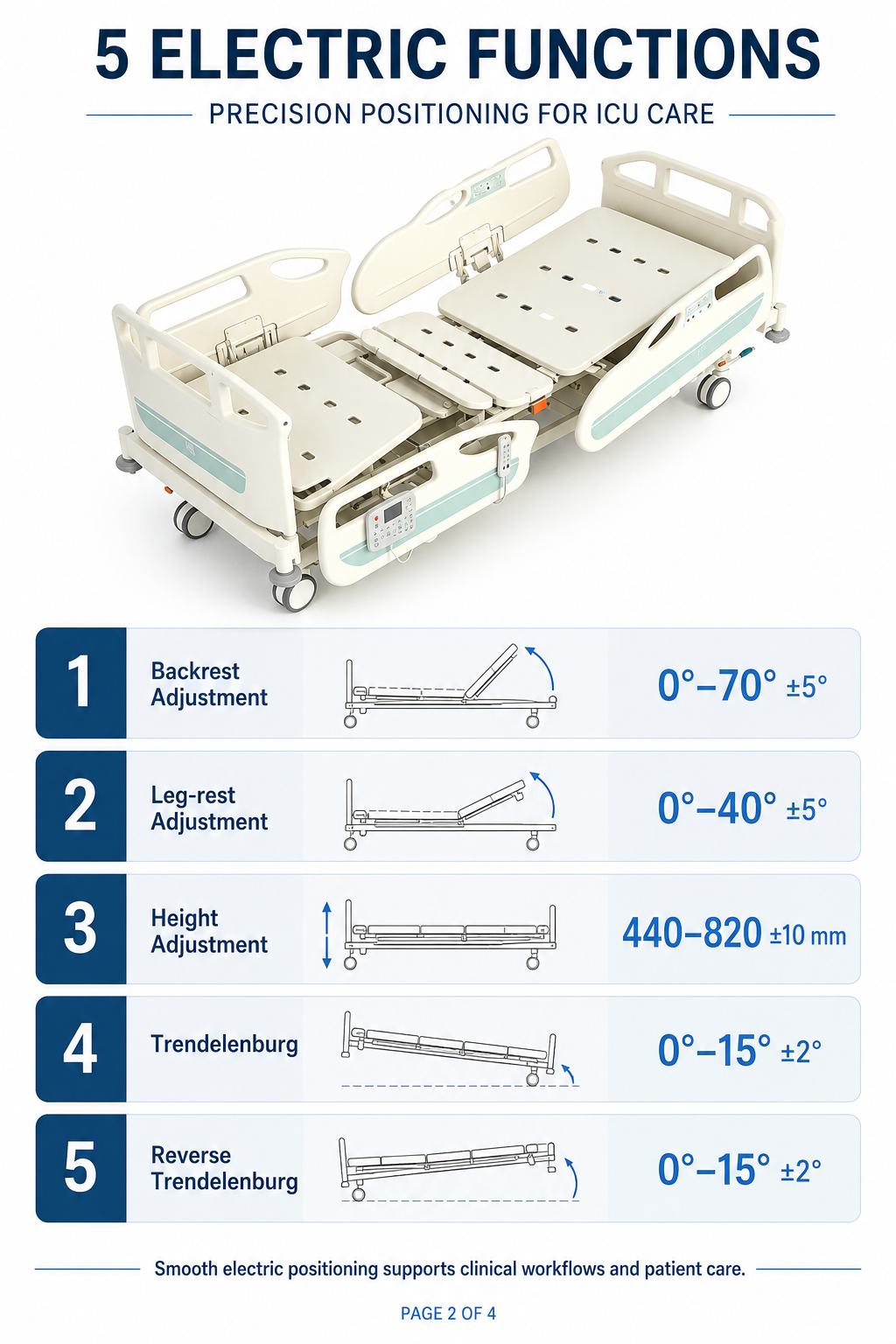

Five Primary Electric Positioning Functions

1. Backrest Adjustment: 0°–70° ±5°

Supports upright positioning for patient care, feeding, communication, monitoring and respiratory-support workflows.

2. Knee-Rest Adjustment: 0°–40° ±5°

Provides adjustable lower-limb support and helps maintain a stable patient position.

3. Height Adjustment: 440–820 mm ±10 mm

Allows medical staff to select an appropriate working height for examination, nursing and patient-transfer procedures.

4. Trendelenburg: 0°–15° ±2°

Provides controlled head-down positioning for qualified clinical workflows and emergency-care requirements.

5. Reverse Trendelenburg: 0°–15° ±2°

Provides controlled head-up positioning according to the patient’s condition and institutional clinical protocols.

Clinical-use notice: All bed positions should be selected and supervised by qualified medical personnel according to patient condition and hospital procedures.

Standard Built-in Patient Weighing System

The integrated patient weighing system is supplied as standard on this model. It supports routine patient-weight monitoring without requiring unnecessary transfer from the ICU bed.

• 0.1 kg display resolution

• Zeroing function

• Weight holding and data-saving functions

• Storage of up to 20 historical weight records

• Patient off-bed alert function

• Designed to support weighing in different bed positions

The final weighing range, permitted tolerance and calibration procedure will be confirmed in the technical specification supplied with the quotation.

12 Positioning, Preset and Safety Functions

1. Electric backrest elevation

2. Electric knee-rest elevation

3. Synchronized backrest and knee-rest adjustment

4. Overall bed-height adjustment

5. Trendelenburg and reverse Trendelenburg adjustment

6. Auto-regression for pelvic-area pressure and shear reduction

7. Manual CPR rapid-release function

8. One-touch electric CPR position

9. One-touch cardiac-chair position

10. One-touch Trendelenburg position

11. UPS backup power supply

12. Emergency-stop function

Watch the ICU Bed in Operation

Watch the product demonstration to review the electric positioning functions, weighing system, nurse control panel, side-rail controls, CPR operation, central braking system and overall ICU bed structure.

If the video does not display,                    watch the ICU bed demonstration on YouTube        .

Patient-Safety and Nursing Design

Auto-Regression System

As the backrest rises, the back section moves toward the head end to create additional pelvic-area space. This design helps reduce pressure and shear caused by conventional backrest movement.

Four-Section Safety Guardrails

Enclosed guardrails include internal protective covers and gas-spring-assisted lowering for quiet, controlled operation. Mechanical angle indicators help caregivers check the backrest position.

Inside and Outside Guardrail Controls

Integrated controls allow caregivers and authorized users to operate basic bed positions from inside or outside the guardrails. A button-lock function helps prevent unintended operation.

Detachable Headboard and Footboard

Plug-in head and foot panels support rapid removal when emergency access is required. Panel colors can be customized to suit different ward environments.

Central Braking System

Pressing one brake pedal can lock all four Ø125 mm twin-wheel casters simultaneously, helping maintain bed stability during nursing and clinical procedures.

Drainage and Accessory Support

Drainage-bag hooks are positioned on both sides of the bed. IV-pole sockets, accessory holders and additional drainage hanger rods can be supplied according to hospital requirements.

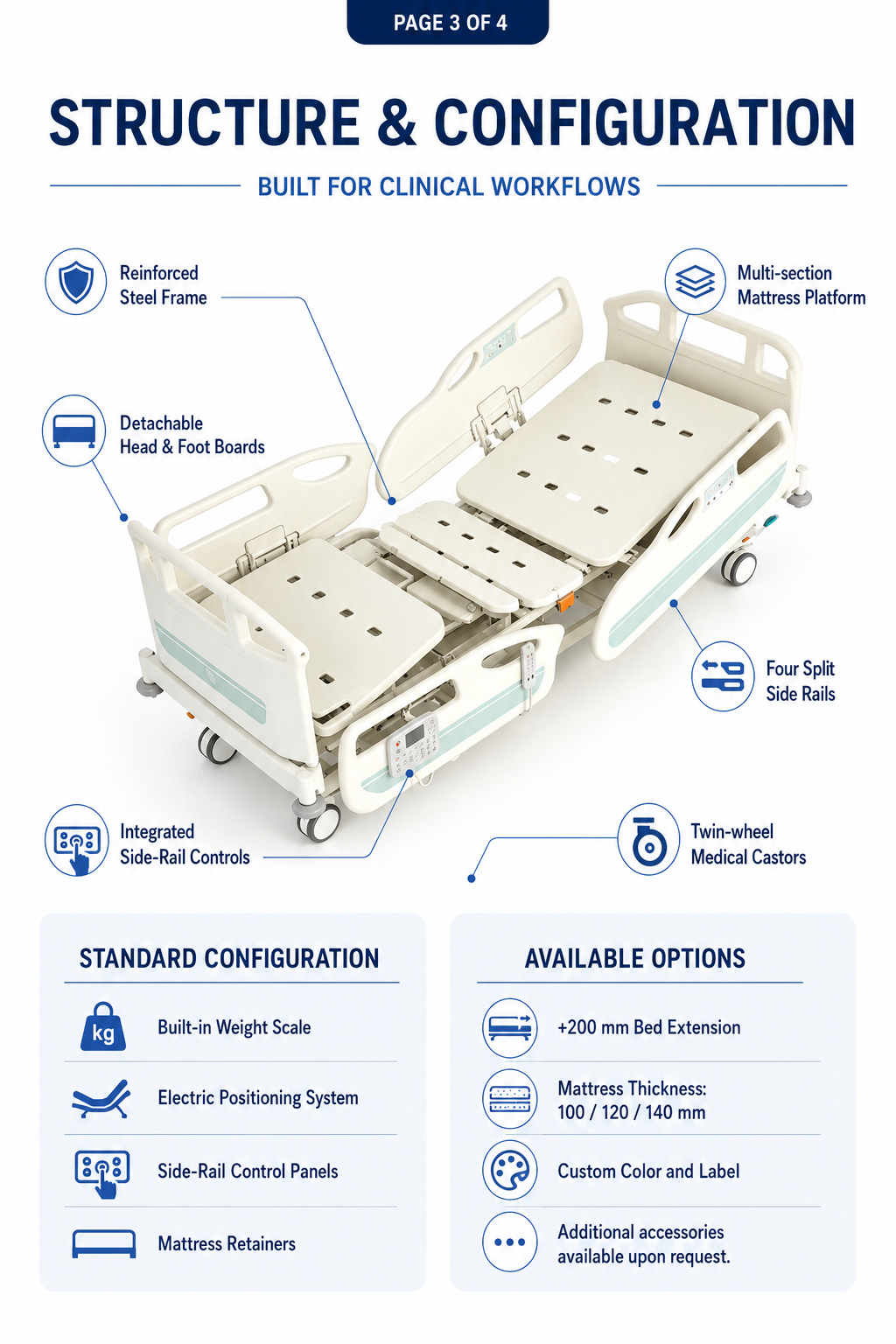

Standard Configuration

Optional Configurations and Accessories

Optional Bed Configurations

• X-ray-translucent bed deck and cassette support

• HDPE bed deck

• Additional 200 mm bed-frame extension

• Under-bed examination light

• Lowest-position indicator light

• Battery-status indicator light

• LCD nurse control console

• Brake alarm system

• Fifth-wheel steering system

• Assist-bar socket

Optional Accessories

• Patient assist bar or trapeze pole

• Folding platform

• Stainless-steel IV pole

• Oxygen-cylinder holder

• Orthopedic traction frame

• Hospital mattress in selected thickness

Available Color Options

Wanrui blue, bright yellow-green, mint green, noble orange, modern gray, elegant pink, natural beech wood and red-yellow peach wood. Final color availability is subject to order confirmation.

Recommended Applications

• Hospital intensive care units

• Critical-care and high-dependency wards

• Emergency and recovery departments

• Specialist hospitals and medical centers

• Government and institutional tender projects

• Medical-equipment distributors and importers

• OEM/ODM hospital-bed projects

Production, Delivery and Warranty

Hospital Bed Manufacturer Since 1998

Tianjin Kangli Medical Equipment Co., Ltd. was established in 1998 and operates a manufacturing and assembly facility covering more than 20,000 square meters.

We manufacture hospital beds, nursing beds, ICU beds, wheelchairs, medical carts, stainless-steel medical furniture and related hospital equipment.

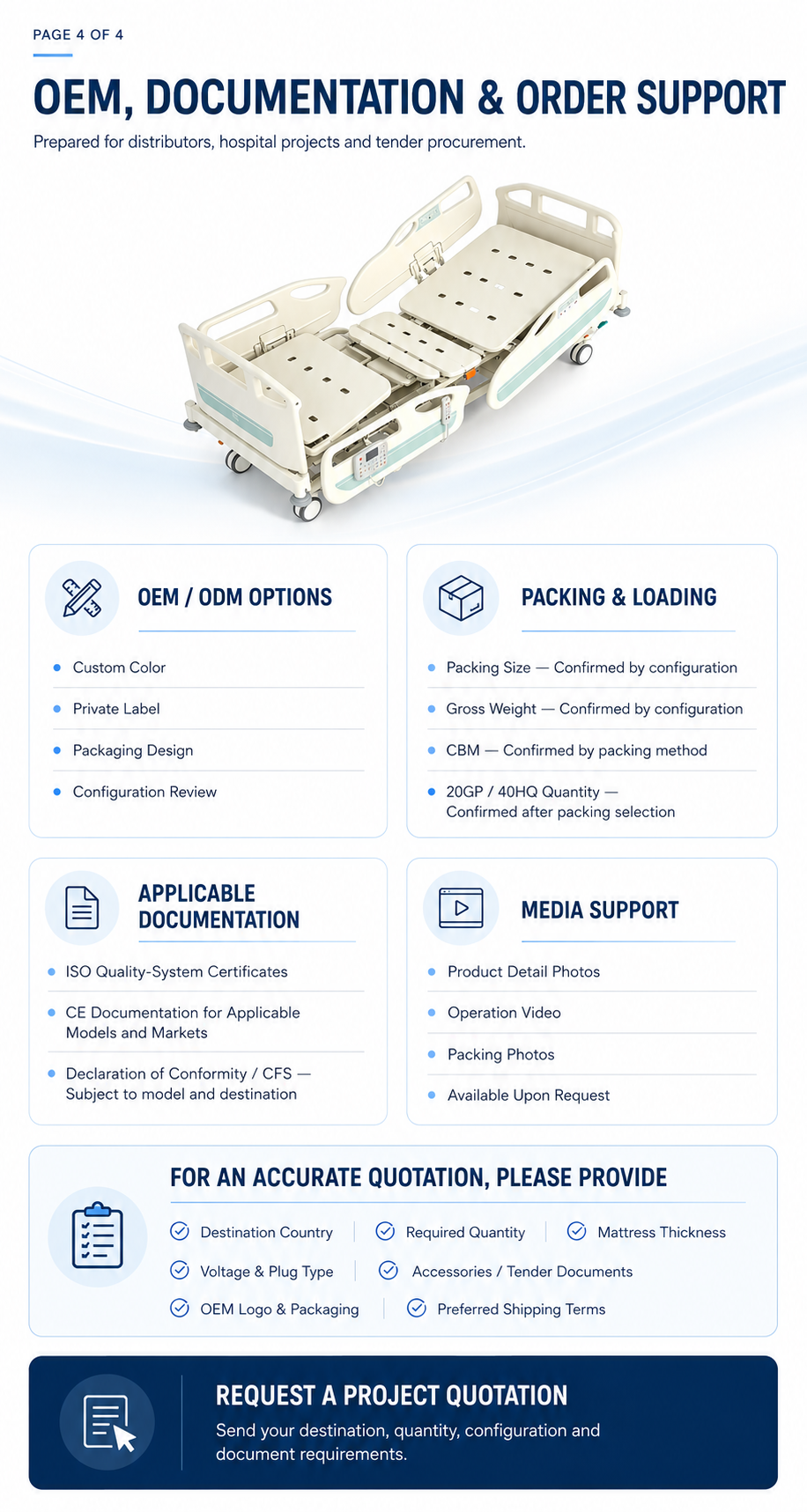

We support medical-equipment distributors, hospitals, healthcare contractors and project buyers with OEM/ODM production, private labeling, customized configurations, export packaging, spare-parts coordination and tender-document support.

Quality Management and Export Documentation

Quality-management and export documents can be supplied according to the confirmed product configuration and destination-market requirements. Certificate applicability should be verified before quotation and order placement.

ISO 9001:2015 Quality Management System Certificate

Valid until April 14, 2028

Certificate for Exportation of Medical Products

Valid until December 29, 2027

The applicability of certificates and supporting documents to a specific model, configuration and destination market must be confirmed before order placement.

Buyer FAQ

1. Is the patient weighing system included as standard?

Yes. The built-in patient weighing system is supplied as standard on this version of the five-function ICU bed.

2. Why is it called a five-function bed if it has 12 functions?

The five functions refer to the five primary electric positioning movements. The total of 12 also includes coordinated movement, preset positions, emergency controls and safety functions.

3. Is the X-ray-translucent bed deck included?

The X-ray-translucent bed deck is an optional configuration and must be specified before quotation and production.

4. Can the voltage, plug, color and logo be customized?

Yes. Voltage, plug type, panel color, logo, labeling, accessories and export packaging can be customized according to the confirmed order.

5. What is the production lead time?

Production lead time depends on order quantity, selected configuration, accessories, customization requirements and the current production schedule.

6. What is the warranty period?

The warranty period is generally 3–5 years, depending on the configuration and the terms confirmed in the final sales contract.

7. What information is required for an accurate quotation?

Please provide the required quantity, destination country or seaport, voltage, plug type, selected accessories, certification requirements, tender specifications and expected delivery time.
