A-10-01

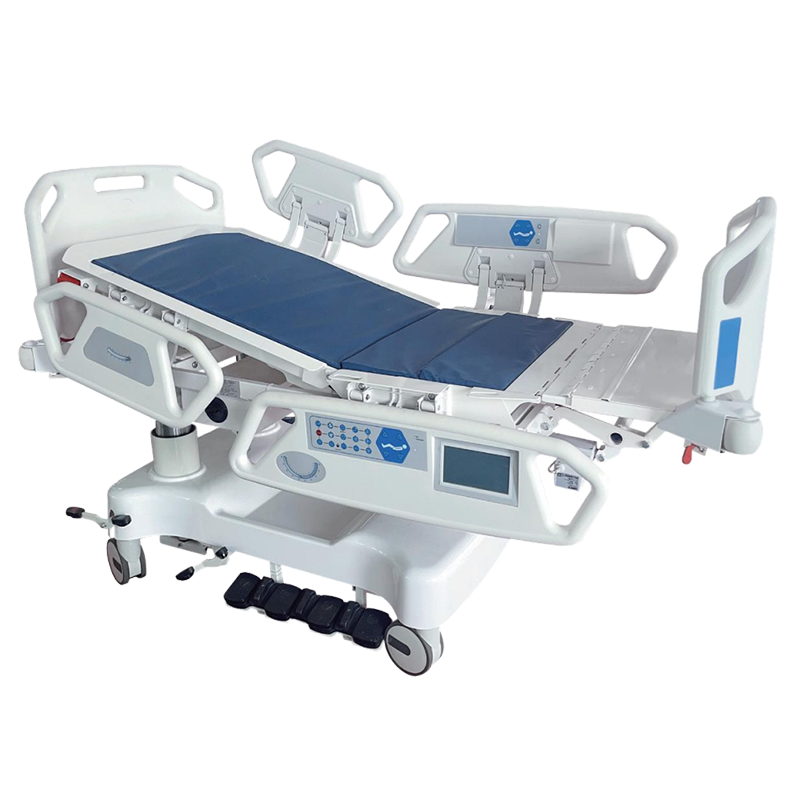

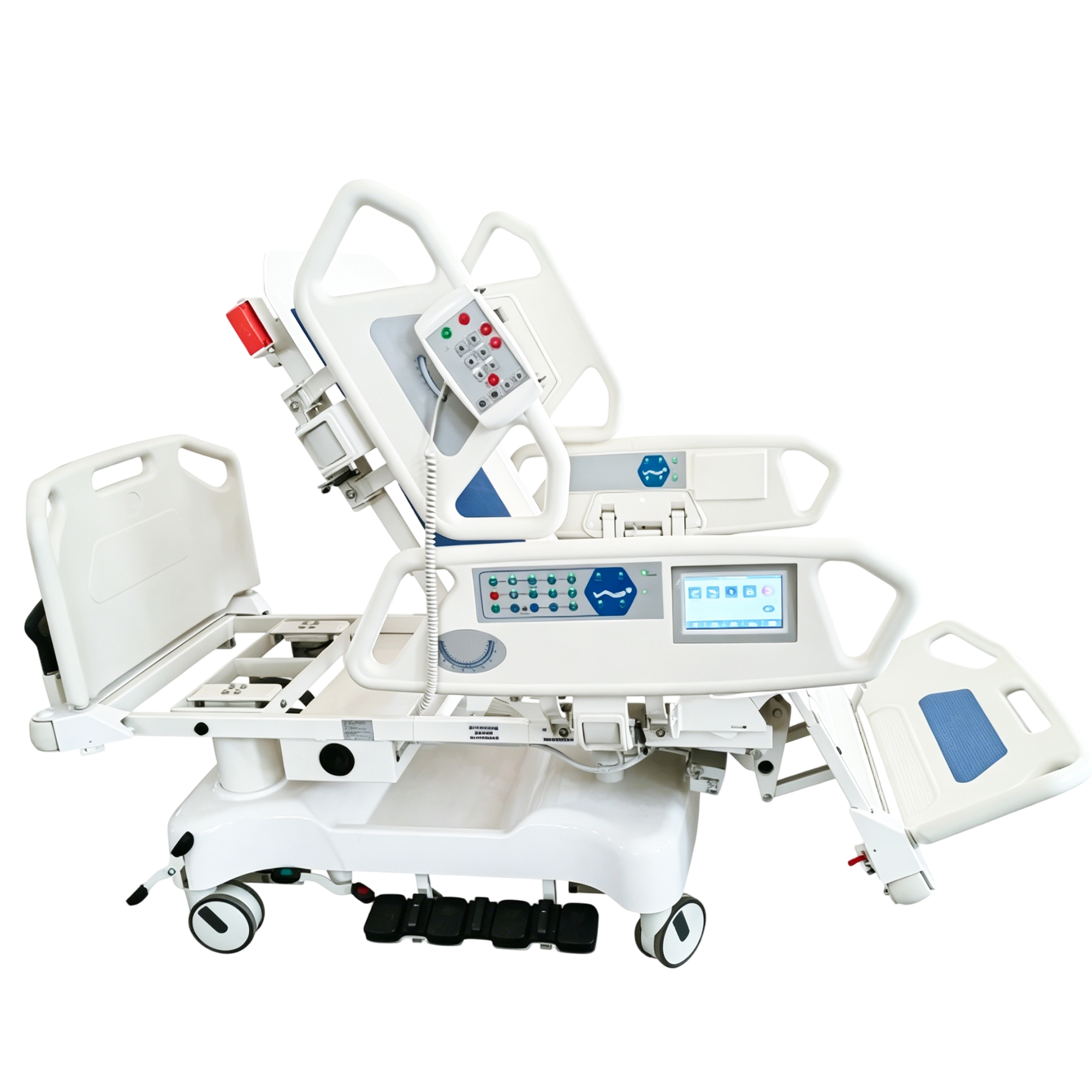

The A-10-01 10-Function Electric ICU Hospital Bed is designed for intensive care units, critical-care wards, emergency departments and hospital projects requiring advanced electric positioning and integrated patient-weight monitoring.
The bed combines backrest, knee-section and foot-section adjustment with Trendelenburg, reverse Trendelenburg and lateral-tilt functions. Electric CPR, one-button chair positioning and one-button flat positioning support faster caregiver response during routine nursing and emergency procedures.
An integrated weighing system allows clinical staff to monitor changes in patient weight while the patient remains on the bed, helping reduce unnecessary transfers. Four-piece PP side rails, aluminum support frames, guardrail-integrated controls and quiet medical casters support intensive daily use.
Electric backrest elevation from 0° to 70° ±5° supports respiratory comfort, examination, communication and upright patient positioning.

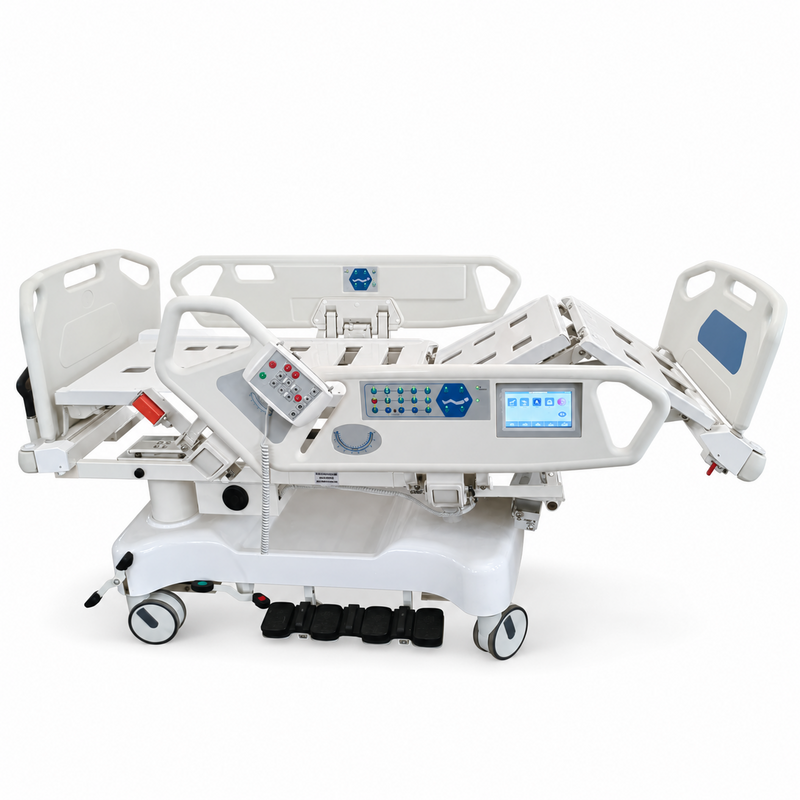

The knee section adjusts from 0° to 30° ±5° to support lower-limb positioning and help reduce patient sliding.

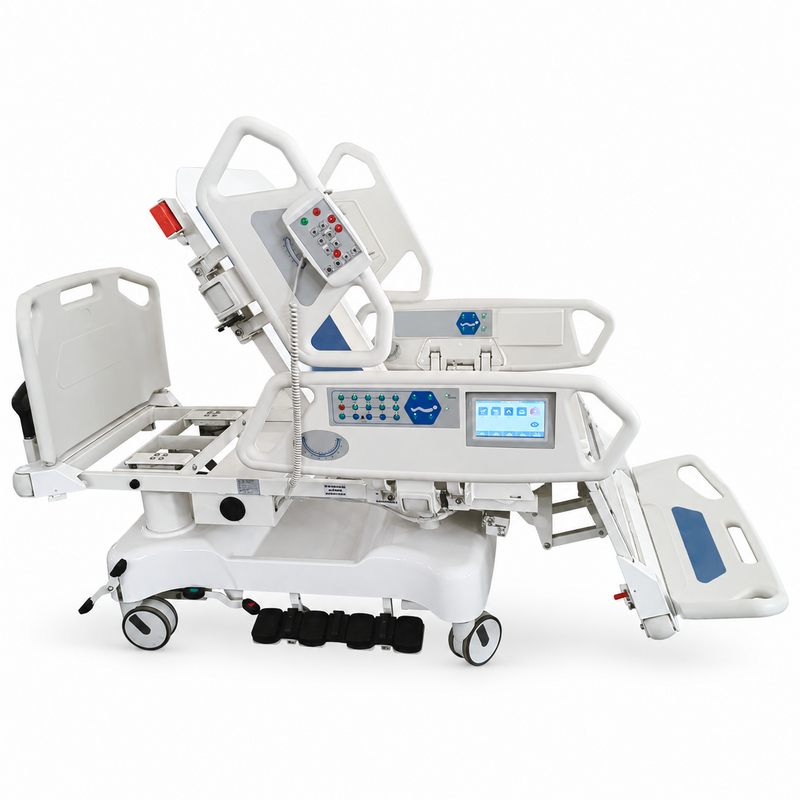

The foot section provides an adjustment range of 0° to 75° ±5° for clinical positioning and patient-care requirements.

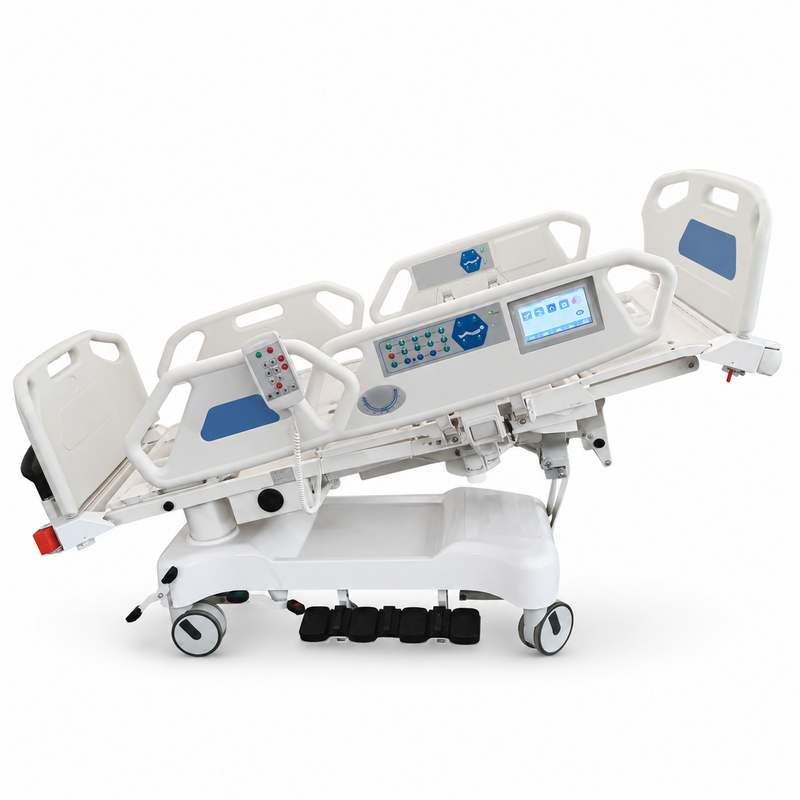

Forward inclination up to 10° supports clinical positioning according to the approved operating procedure.
Backward inclination up to 10° supports head-up positioning and selected nursing procedures.
Electric lateral inclination up to 20° in either direction assists patient repositioning and routine nursing care.

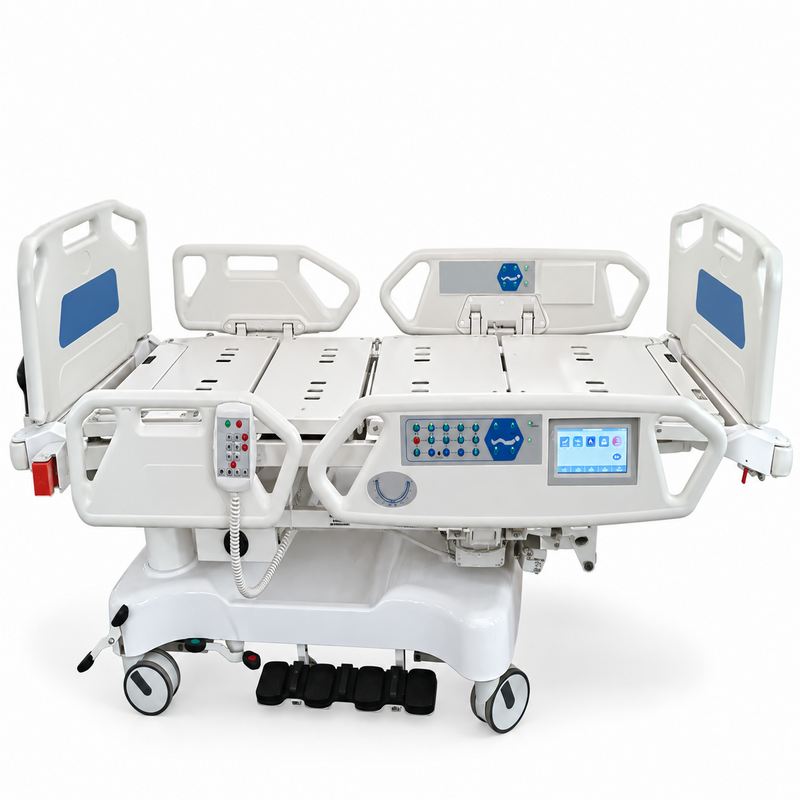

The electric CPR control returns the platform toward a flat emergency position to support faster clinical response.
Coordinated electric movement transforms the platform into a supportive seated position for selected patient-care activities.
Patient weight can be monitored without transferring the patient to a separate weighing device.

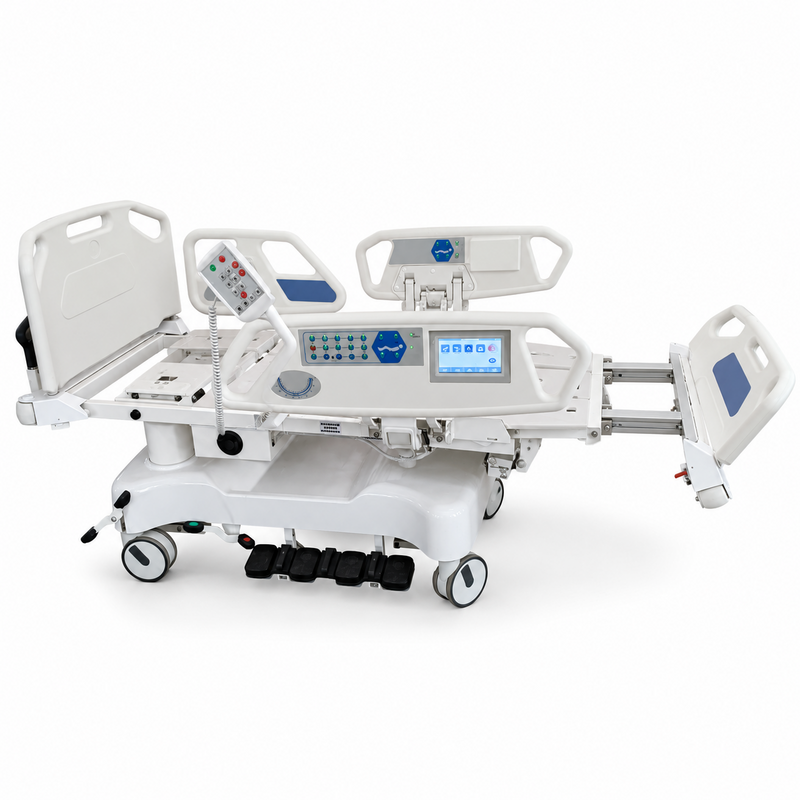

The extendable foot section provides additional platform length when required by the patient or project configuration.
Product Name | 10-Function Electric ICU Hospital Bed with Weighing System |
|---|---|
Model | A-10-01 |
Standard / Extended Length | 2050 / 2300 mm |
Bed Width | 820 mm |
Platform Height | 600 / 830 mm |
Backrest Adjustment | 0°–70° ±5° |
Knee-Section Adjustment | 0°–30° ±5° |
Foot-Section Adjustment | 0°–75° ±5° |
Trendelenburg / Reverse Trendelenburg | ±10° |
Left / Right Lateral Tilt | ±20° |
Emergency Position | Electric CPR and One-Button Flat Position |
Chair Position | One-Button Electric Adjustment |
Weighing | Integrated Patient Weighing System |
Bed Platform | Stamped Cold-Rolled Steel with Powder-Coated Finish |
Headboard and Footboard | Removable One-Piece Injection-Molded PP Panels |
Side Rails | Four-Piece PP Side Rails with Aluminum Support Frames |

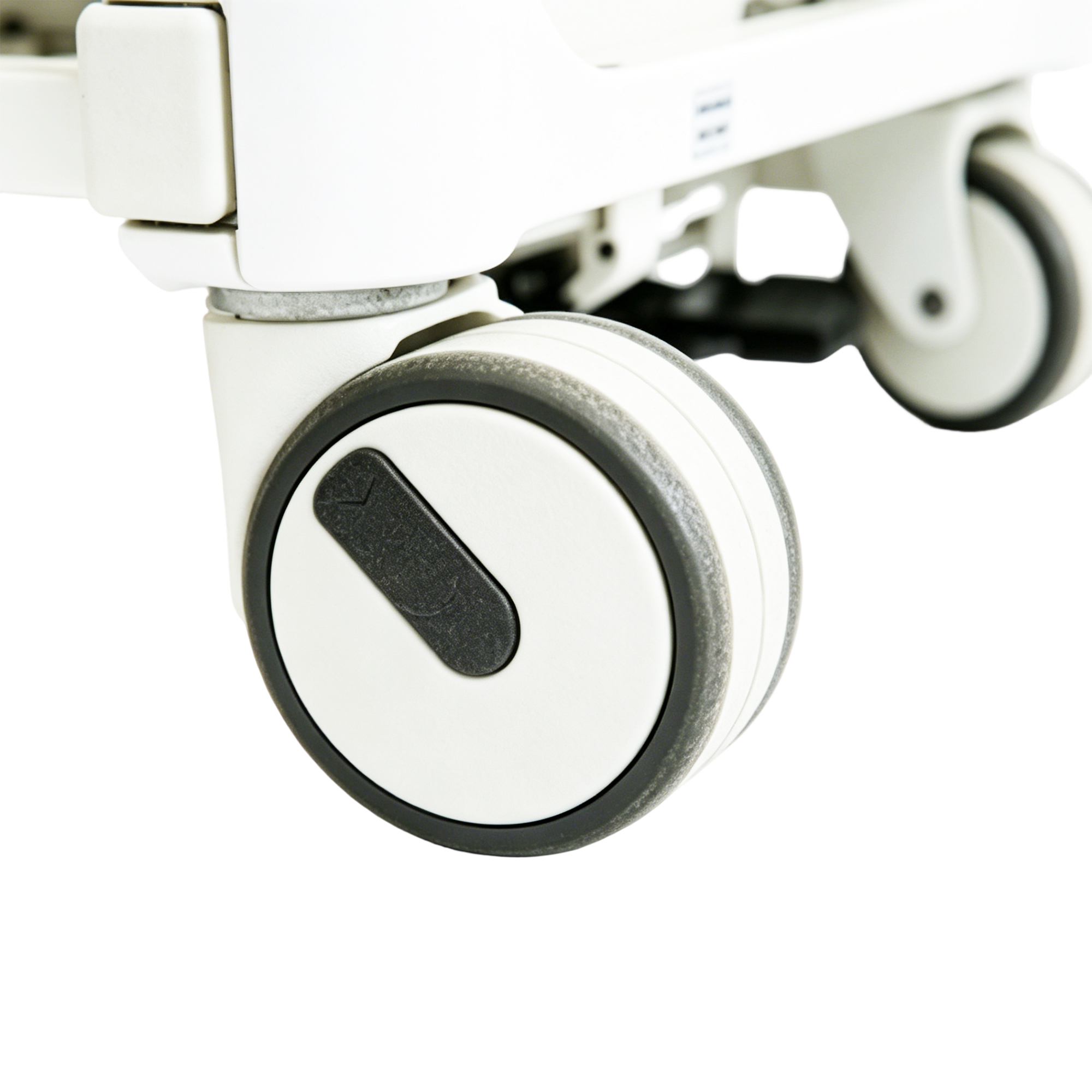

Casters | Ø125 mm Double-Sided, Quiet and Anti-Tangle Medical Casters |

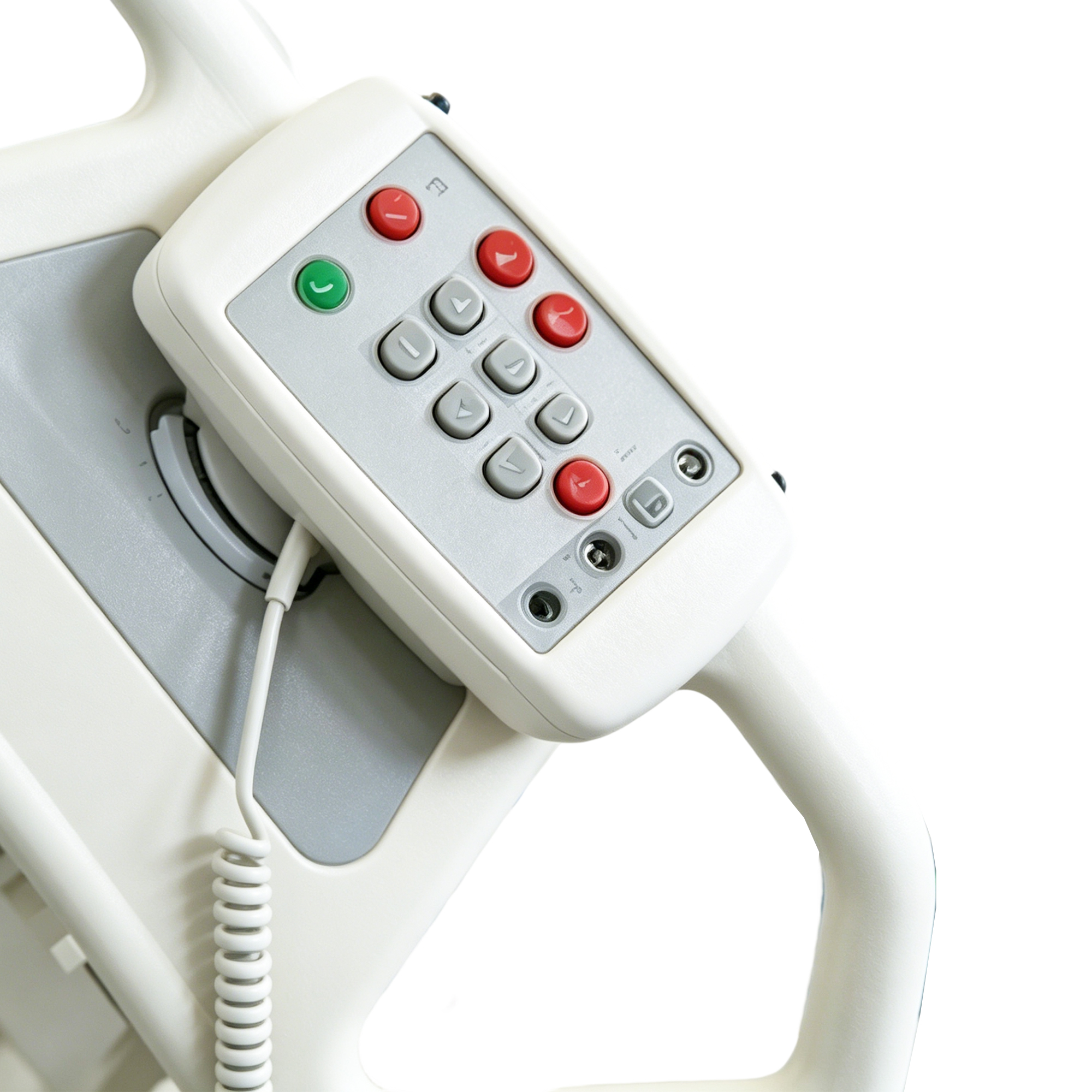

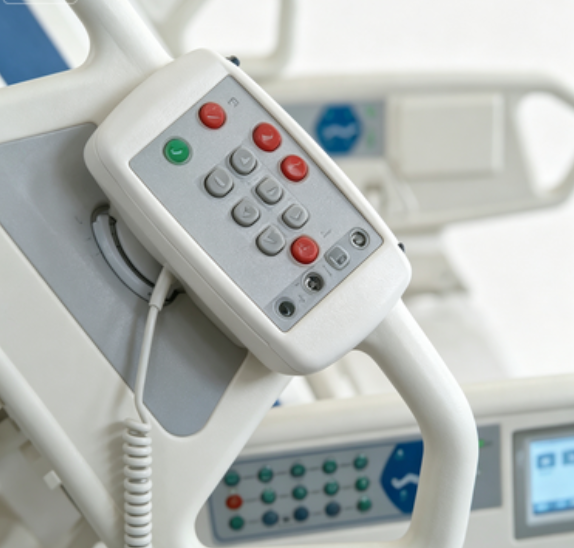

Control System | Guardrail-Integrated Controllers |
Dimensions and functional ranges are based on the current product record. Final dimensions, load capacity, electrical specifications and weighing-system accuracy should be confirmed in the approved quotation or technical agreement.
The platform is formed from cold-rolled steel sheet and finished with electrostatic powder coating. The ventilated panel design supports routine cleaning and stable mattress placement.
Steel plates and frame components are laser-cut and laser-welded to support dimensional consistency and structural stability.
The streamlined headboard and footboard are manufactured from one-piece injection-molded PP material. Concealed locking mechanisms support convenient removal during cleaning, maintenance or emergency access.

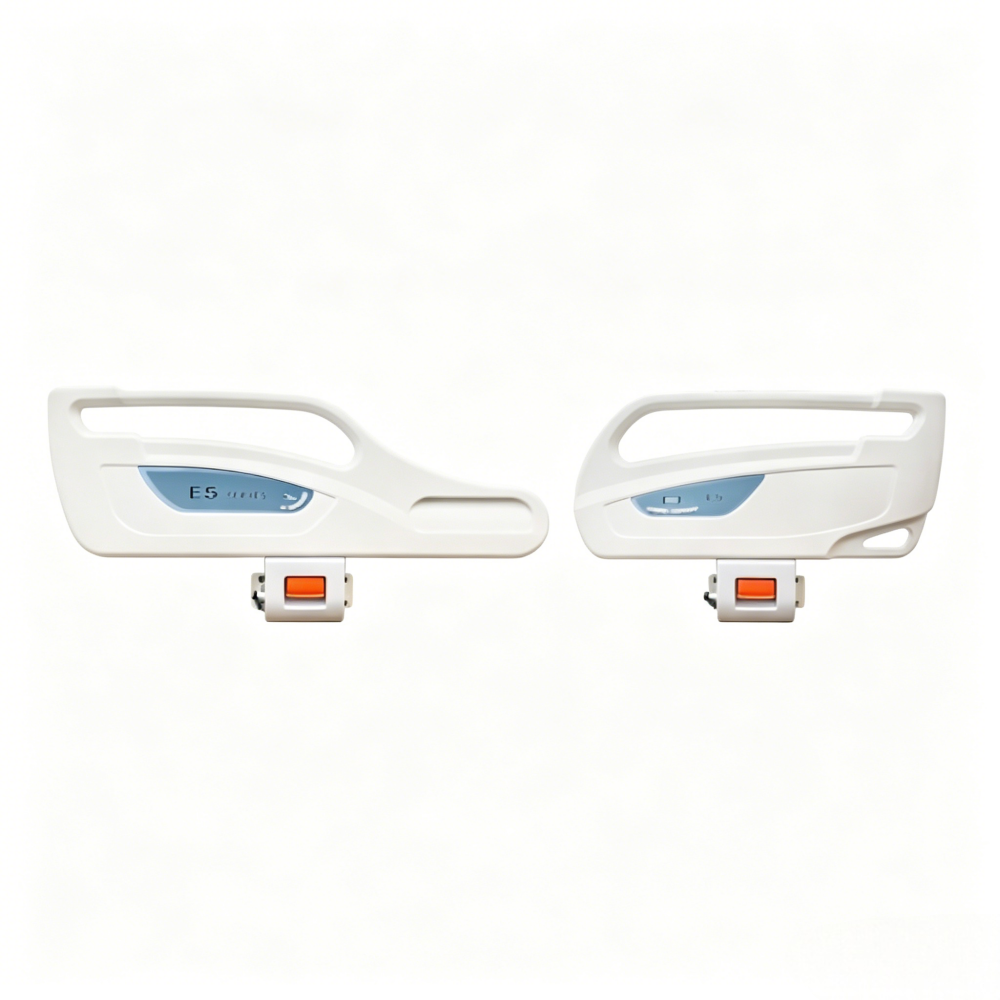

Four individual PP side rails provide patient protection while allowing caregivers to access different areas of the bed. Aluminum support frames improve strength and stability.
Electric CPR emergency positioning
One-button flat platform function
One-button chair positioning
Left and right lateral repositioning

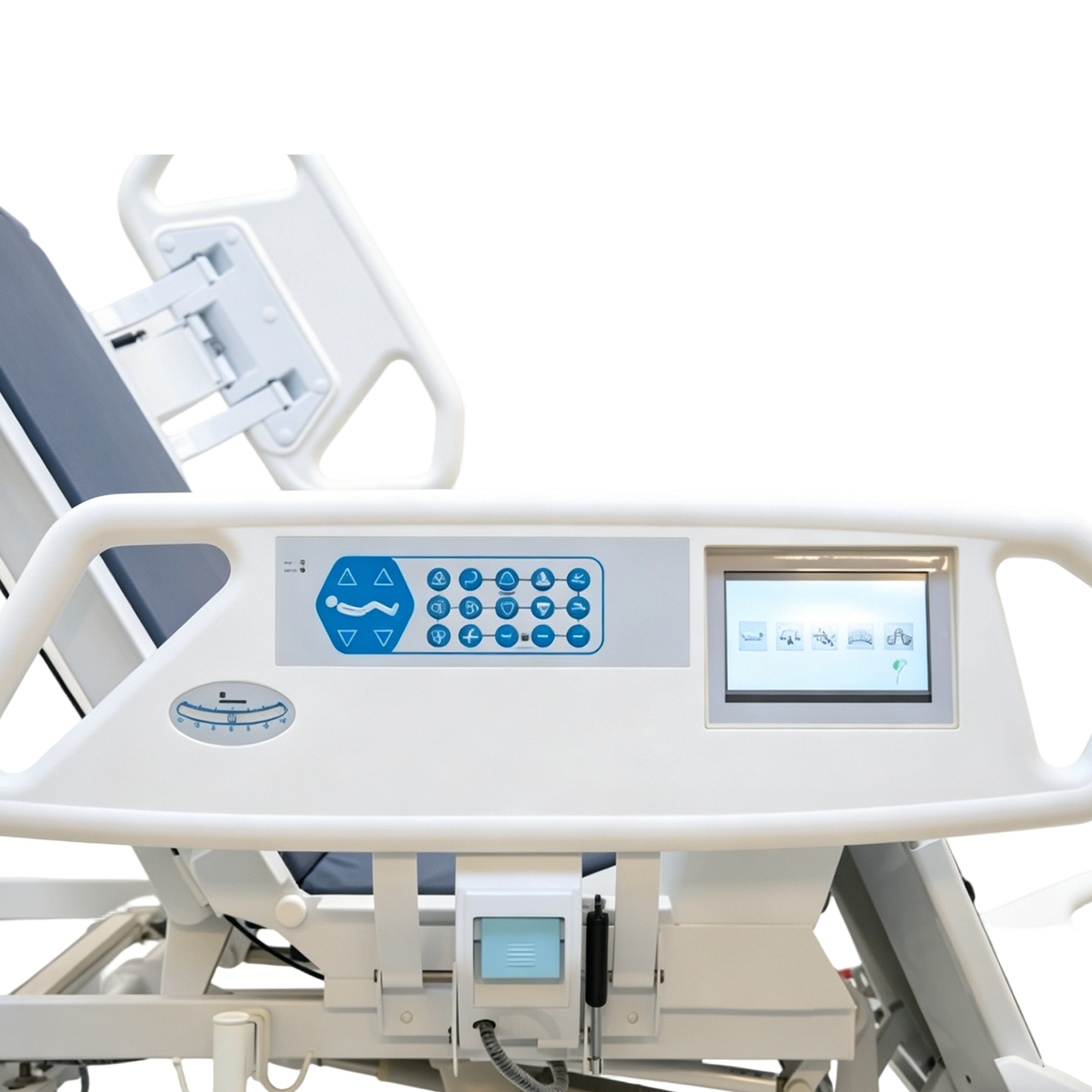

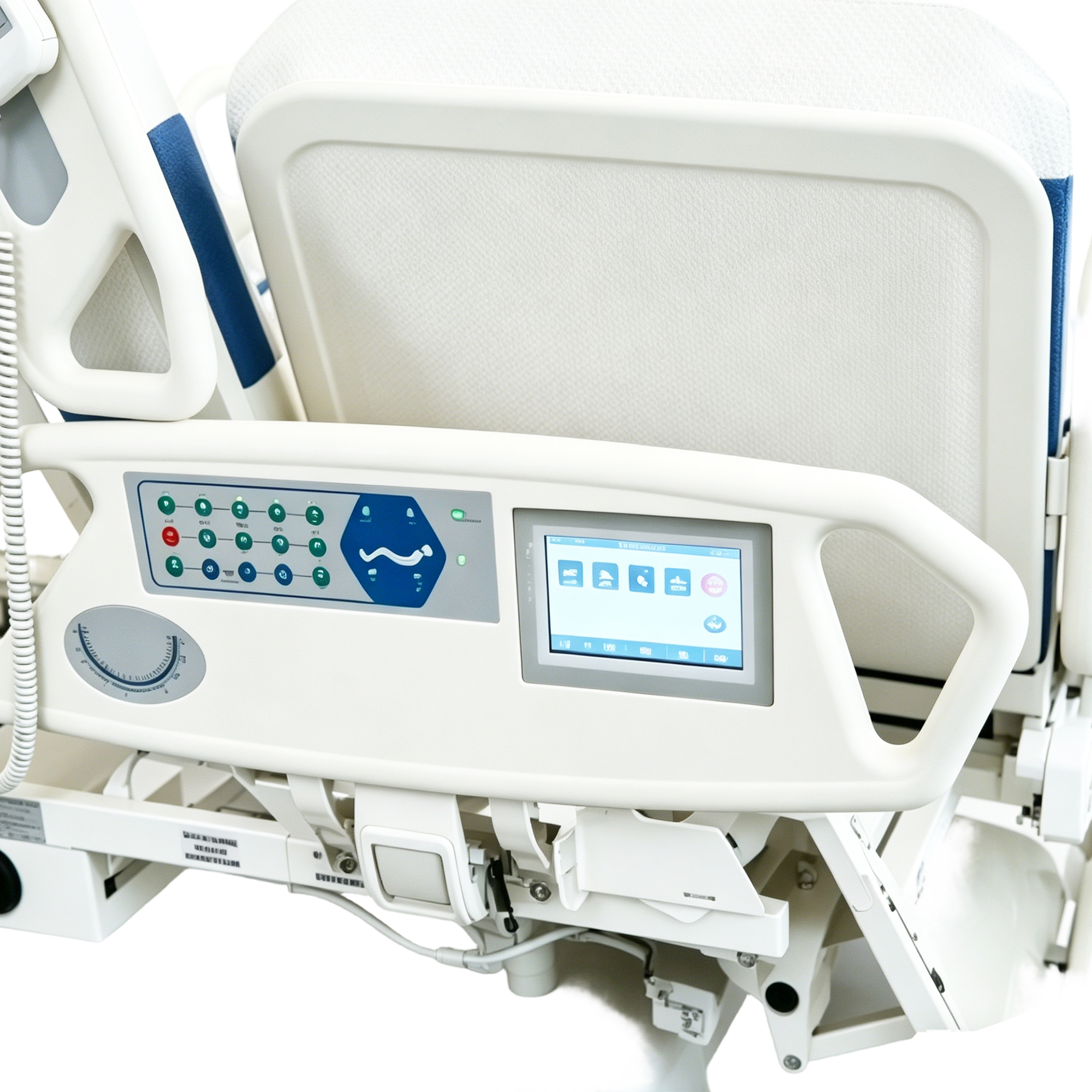

Guardrail-integrated controls
Emergency stop control
Foot-end mattress retainers
Drainage-bag and accessory hooks
Patient information card holder
Quiet anti-tangle medical casters
1 Electric ICU Hospital Bed Frame
1 Integrated Patient Weighing System
1 Detachable PP Headboard
1 Detachable PP Footboard
4 PP Side-Rail Sections
Guardrail-Integrated Controllers
4 Ø125 mm Medical Casters
Foot-End Mattress Retainers
Drainage-Bag and Accessory Hooks
Patient Information Card Holder
Medical-Grade Sectional Mattress
Waterproof and Breathable Mattress Cover
Stainless-Steel IV Pole
Overbed Table
Bedside Cabinet
Patient Lifting Pole
Drainage-Bag Holders
Project-Specific Electrical Configuration
Optional-accessory availability, specifications and quantities must be confirmed before quotation and production.
Hospital Intensive Care Units
Critical-Care Wards
Emergency and Observation Departments
High-Dependency Units
Specialist Treatment Centers
Government Hospital Projects
Medical Equipment Distribution
Hospital Tender Procurement
MOQ is confirmed according to the required configuration, electrical standard, accessories, customization and order quantity. Sample-order requirements can be discussed separately.
Production time is confirmed after the final quantity, configuration, documentation and OEM requirements have been approved.
Export-standard protective packaging can be arranged according to the final product configuration and transportation requirements. Packing dimensions, net weight, gross weight and CBM are confirmed before order placement.
The loading quantities for 20GP and 40HQ containers depend on the approved packing method and final accessories. A loading plan can be provided before order confirmation.
The warranty period, covered components and spare-parts policy are confirmed in the final quotation and sales contract. Remote technical assistance and operation guidance are available upon request.
Tianjin Kangli Medical Equipment Co., Ltd. can provide applicable company and product documentation according to the selected configuration, destination country and tender requirements.
Applicable ISO Certificates
Applicable CE Documentation
Certificate of Free Sale, Where Applicable
Declaration of Conformity
Technical Data Sheet
Operation and Maintenance Manual
Packing List and Commercial Invoice
Tender Compliance Documents
Document availability must be confirmed before quotation. Do not assume that every certificate applies automatically to every model or destination market.
OEM and ODM services are available for medical-equipment distributors, hospital contractors, project buyers and tender customers.
Customer Logo and Private Label
Product Color Customization
Electrical Plug and Voltage Selection
Accessory Configuration
Carton Marking and Packaging
Customized User Manuals
Tender-Specific Configuration
Spare-Parts Packages
Medical Equipment Manufacturing Since 1998
Approximately 20,000 m² Manufacturing Base
Experience with Hospitals and Distributors
Hospital Project and Tender Support
OEM and ODM Manufacturing Services
Export Packaging and Loading Support
Spare-Parts and Technical Assistance
FOB and CIF Quotation Support
Yes. The A-10-01 is equipped with an integrated patient weighing system. The required weighing range and accuracy should be confirmed before quotation.
Yes. The current configuration provides left and right lateral inclination of up to 20°.
Yes. It provides electric CPR positioning and a one-button flat function for faster emergency response.
Applicable technical, certification, packing and commercial documents can be prepared according to the tender requirements and confirmed product configuration.
Yes. Logo, colors, electrical standards, accessories, packaging and selected configurations can be discussed for OEM or ODM orders.
Please provide your destination country, seaport, required quantity, electrical standard, mattress and accessory requirements, certification requirements and preferred trade term.
