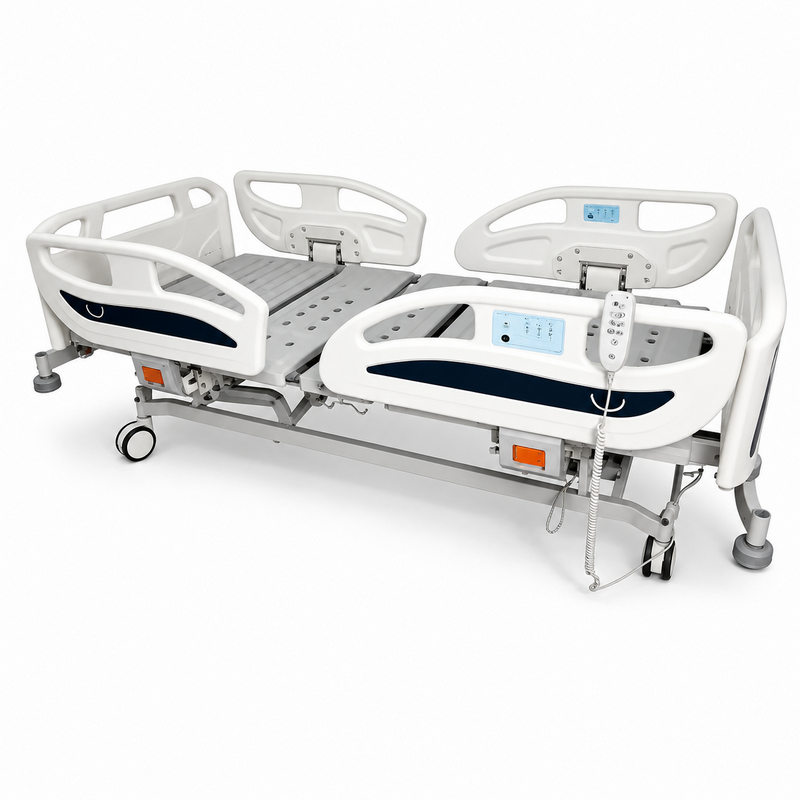

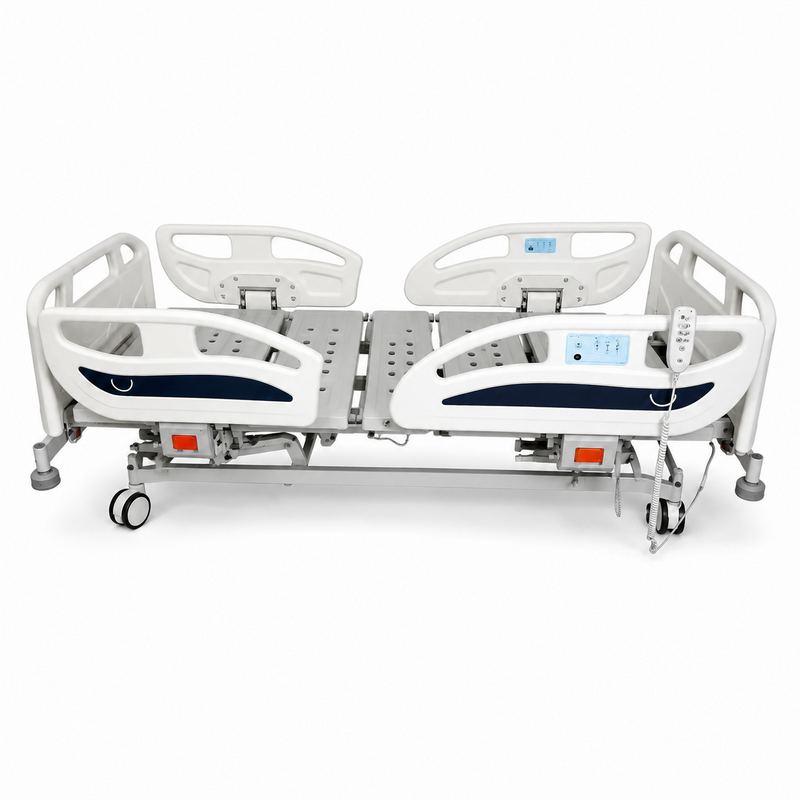

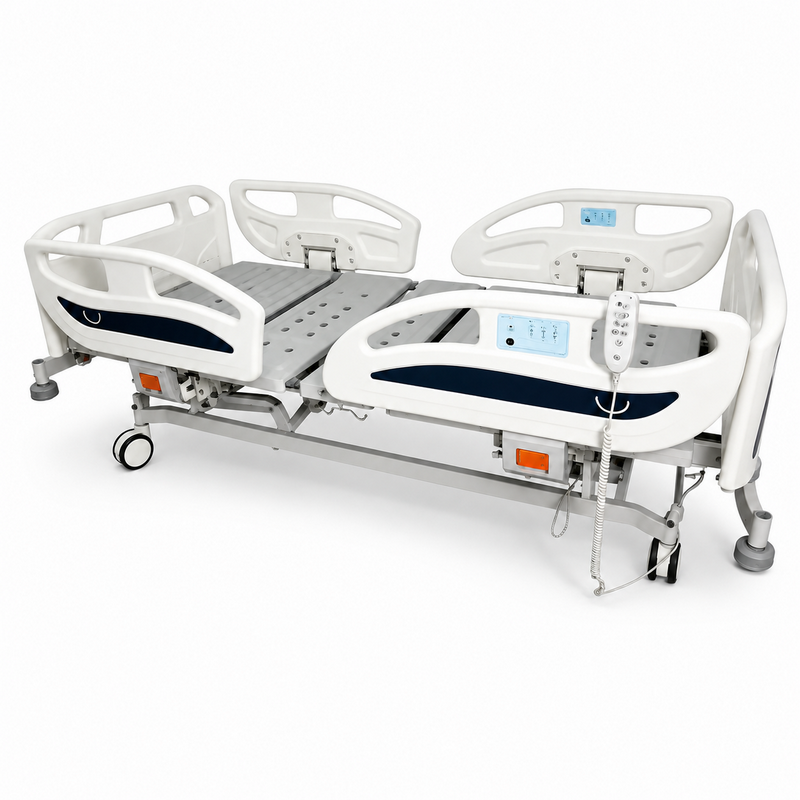

Three-Function Electric Hospital Bed With Grey Bedhead

Specification: 2170 × 1080 × 440-660 mm
Safe Working Load: ≥ 200 kg (440 lbs)
Key Functions: Backrest lift, Legrest lift, Hi-Low height adjustment
Certifications: CE / ISO 13485 Certified
The bed board is made of high-quality grade one cold-rolled steel plate, with a bare plate thickness of 1.0mm. It is produced by a one-time mold-pressed bed board production line, with the entire board being mold-pressed and formed, and treated with ultrasonic rust removal. The surface is phosphated and then coated with powder by electrostatic spraying. The four corners are smooth and complete, making it easy to clean. It has an anti-slip design for the mattress, meeting the anti-slip function. The body is made of steel powder-coated after phosphating treatment. The back is reinforced with a steel pipe structure, which is firm, safe and reliable, and has a mold-pressed ventilation groove and dense air holes.

Availability:



Inquire Add to Basket

Model:
V-01-2

Product Description

Designed for modern healthcare environments, this premium motorized bed combines robust mechanical stability with low-noise clinical efficiency. The elegant, high-grade grey ABS bedhead provides a soothing, modern medical appearance while ensuring durability and easy infection control.

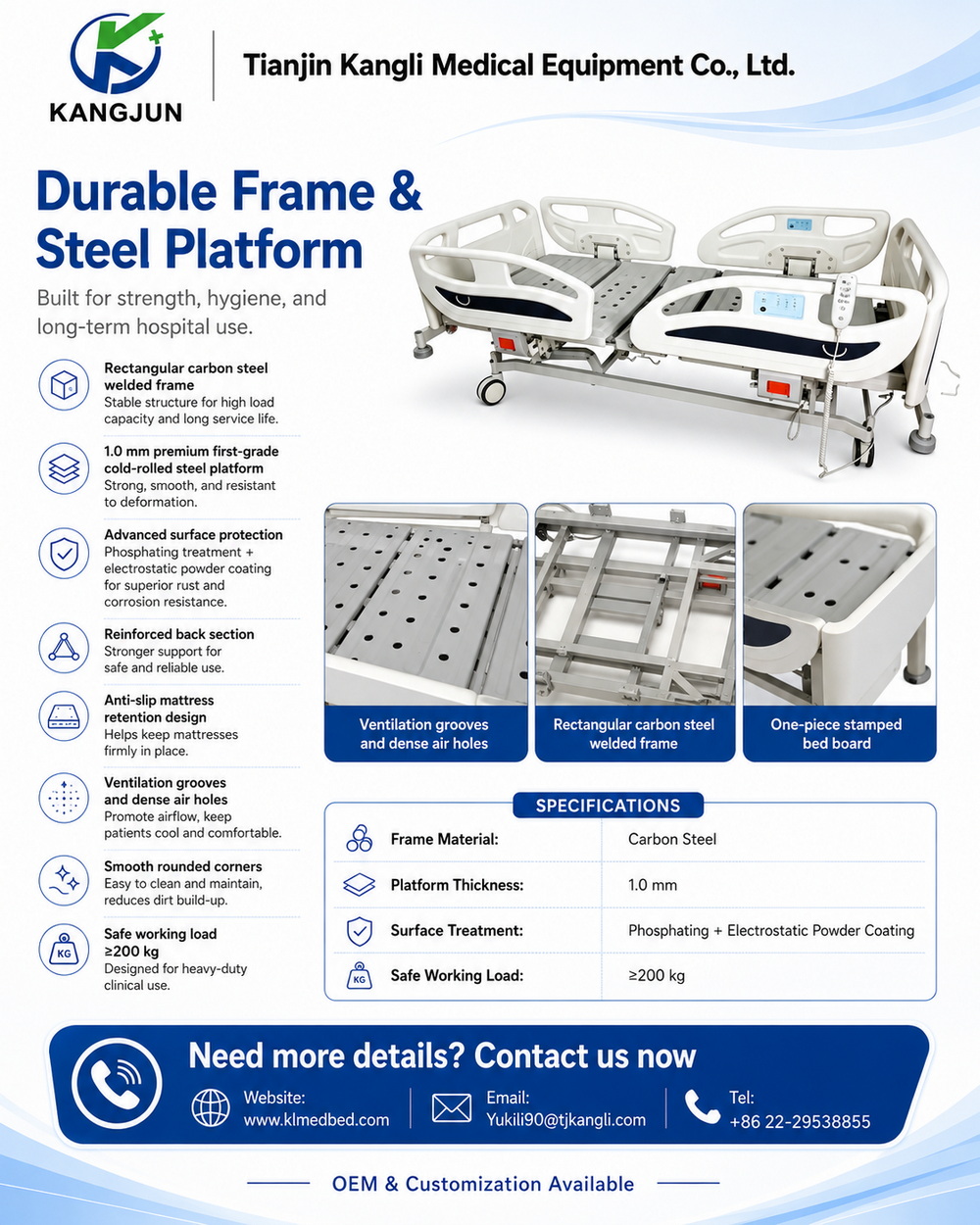

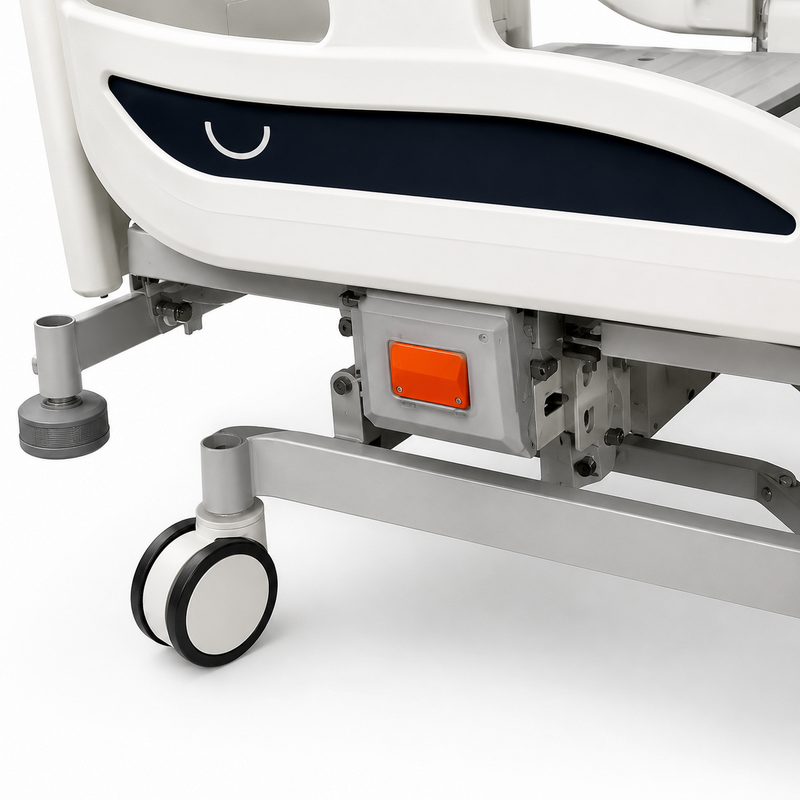

Three-Function Electic Hospital Bed With Grey Bedhead (2).jpg

Premium Material & Advanced Surface Treatment

· Structural durability: The bed frame is built with high-strength rectangular carbon steel pipes, welded to help prevent warping or structural fatigue under continuous loads.

· Anti-bacterial surface treatment: The bed surface is treated with ultrasonic rust removal and phosphating, then coated with electrostatic powder spraying for scratch resistance and easier cleaning.

· Ergonomic bedboard: The one-time mold-pressed bedboard includes an anti-slip design to keep the

mattress in place. Ventilation grooves and air holes support airflow for patient hygiene.

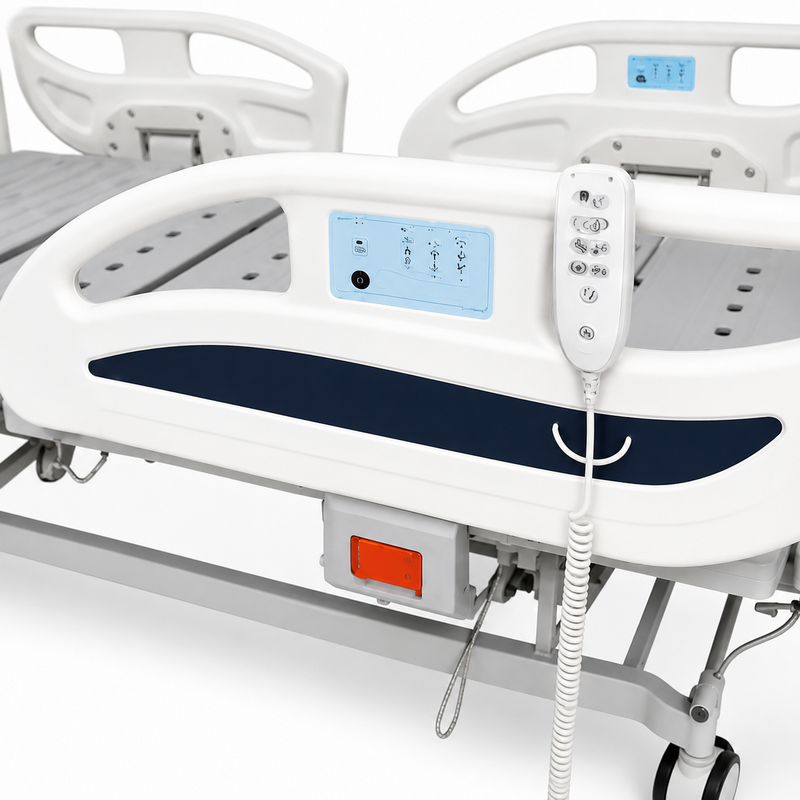

Intelligent & Silent Motor Drive

· Medical-grade actuators: Driven by electric push rods with limit-warning protection.

· Quiet operation: Smooth adjustment helps reduce sudden movement, supporting patient comfort and caregiver convenience.

Parameter	Specification Standard	Details & Features
Overall Dimensions	2170 × 1080 × 440-660 mm	Optimized size for standard hospital wards and patient comfort.
Safe Working Load	≥ 200 kg / 440 lbs	Heavy-duty reinforced structure for patient safety.
Backrest Adjustment	0°-75° (±5°)	Relieves chest pressure and assists with dining and respiratory care.
Legrest Adjustment	0°-35° (±5°)	Promotes lower-limb blood circulation and helps reduce long-term pressure risk.
Hi-Low Adjustment	440-660 mm	Reduces caregiver strain and facilitates safer patient entry and exit.
Frame Material	Rectangular carbon steel	Welded structure designed for long-term stability and daily clinical use.
Bedboard Thickness	1.0 mm bare plate	High-quality grade-one cold-rolled steel, one-time mold-pressed.
Caster System	φ125 mm central control casters	One-foot central braking system, noiseless movement, and wear-resistant performance.

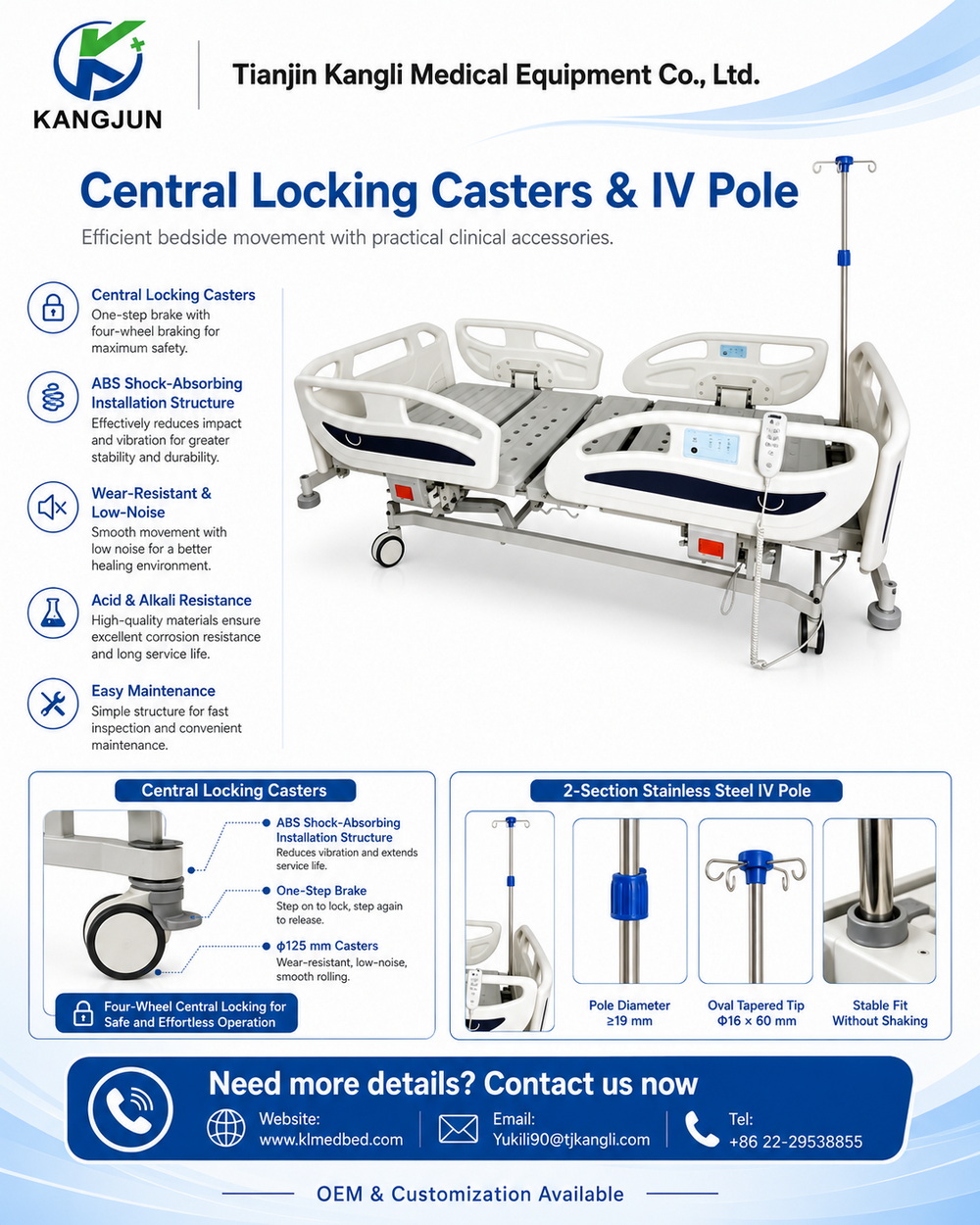

Three-Function Electic Hospital Bed With Grey Bedhead (4).jpg

Advanced Safety Guardrails & Mobility

· ABS blow-molded guardrails: Four-section split side rails are made from high-grade engineering ABS plastic. The surface is smooth, seamless, and easy to clean.

· Gas spring dampening: Equipped with 8 gas rods for smooth, quiet rail movement. The hidden buffer function saves side space and includes built-in angle indicators.

· Central brake casters: φ125 mm casters include an internal ABS shock-absorbing structure. They are acid-resistant, alkali-resistant, and wear-resistant. A single foot pedal activates four-wheel braking.

· Detachable headboard and footboard: One-time blow-molded ABS design with integrated anti-collision corners and patient information card slots.

Standard Accessories Included

· IV pole: Stainless steel two-section drip stand with diameter ≥ 19 mm. Height-adjustable, sturdy, and designed with an elliptical shrinkage joint for a tight fit without shaking.

Commercial Information for B2B Buyers

· OEM/ODM customization: Custom logos, bedhead colors, plug and voltage standards, and alternative guardrail configurations are available for bulk project orders.

· International certifications: Compliant with CE and ISO 13485 medical device quality management requirements, according to available product documentation.

· Supply chain and packaging: Products can be shipped in heavy-duty export-standard cartons or bulk packing optimized for container loading efficiency. Contact our sales team for 20FT/40HQ loading layouts and shipping-cost optimization.
