A-33-3

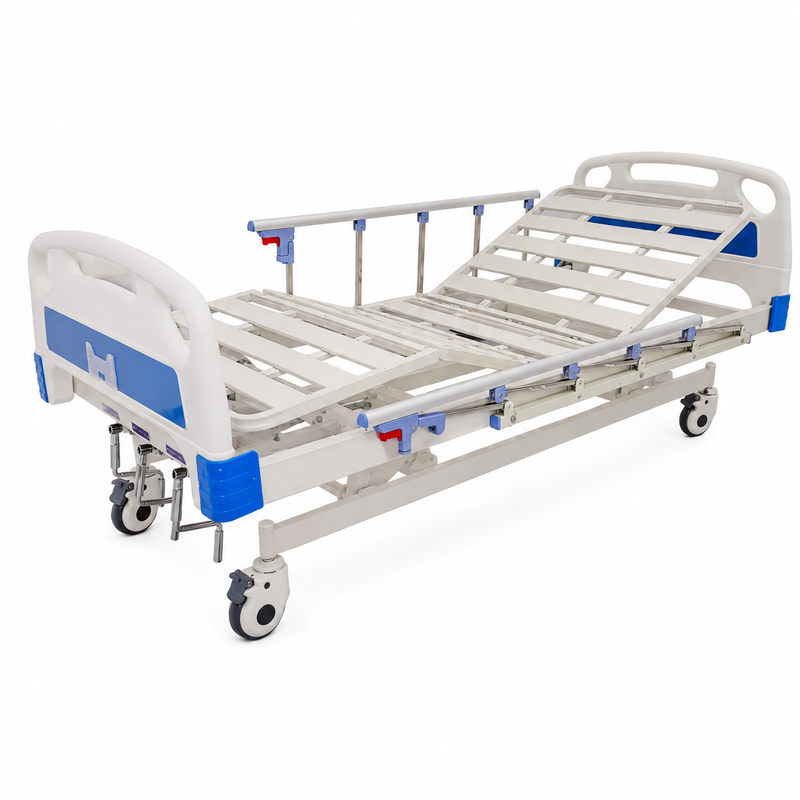

The A-33-3 Three-Function Manual Hospital Bed is designed for hospitals, clinics, rehabilitation centers, nursing facilities and long-term care institutions that require reliable patient positioning without electrical power.
Three independent stainless-steel cranks control the backrest, knee section and platform height. The bed combines a powder-coated strip-steel frame, detachable ABS headboard and footboard, 5-bar aluminum-alloy side rails and independently locking noiseless casters for practical daily care and straightforward maintenance.
Model | A-33-3 |
|---|---|
Manual Functions | 3 Independent Adjustments |
Overall Size | 2080 × 960 mm |
Weight Capacity | 250 kg |
Side Rails | 5-Bar Aluminum Alloy |
Power Requirement | No Electrical Power Required |
Planning a hospital, nursing facility or distributor order?
REQUEST FOB / CIF QUOTECHAT ON WHATSAPP

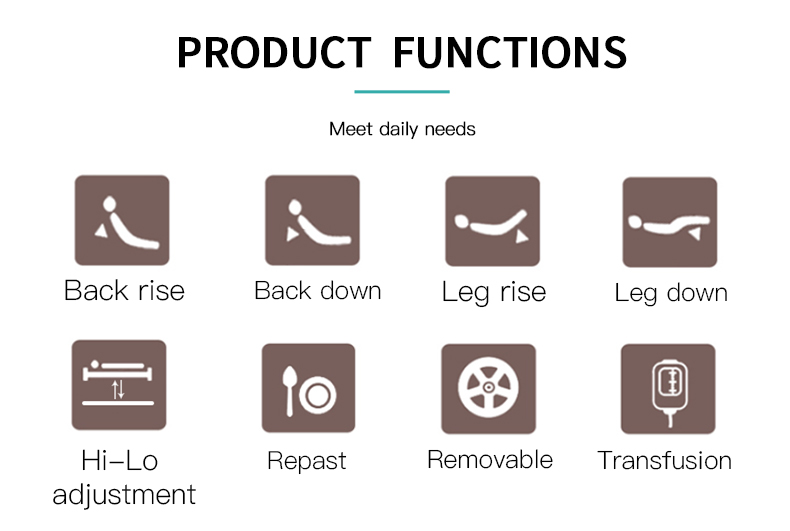

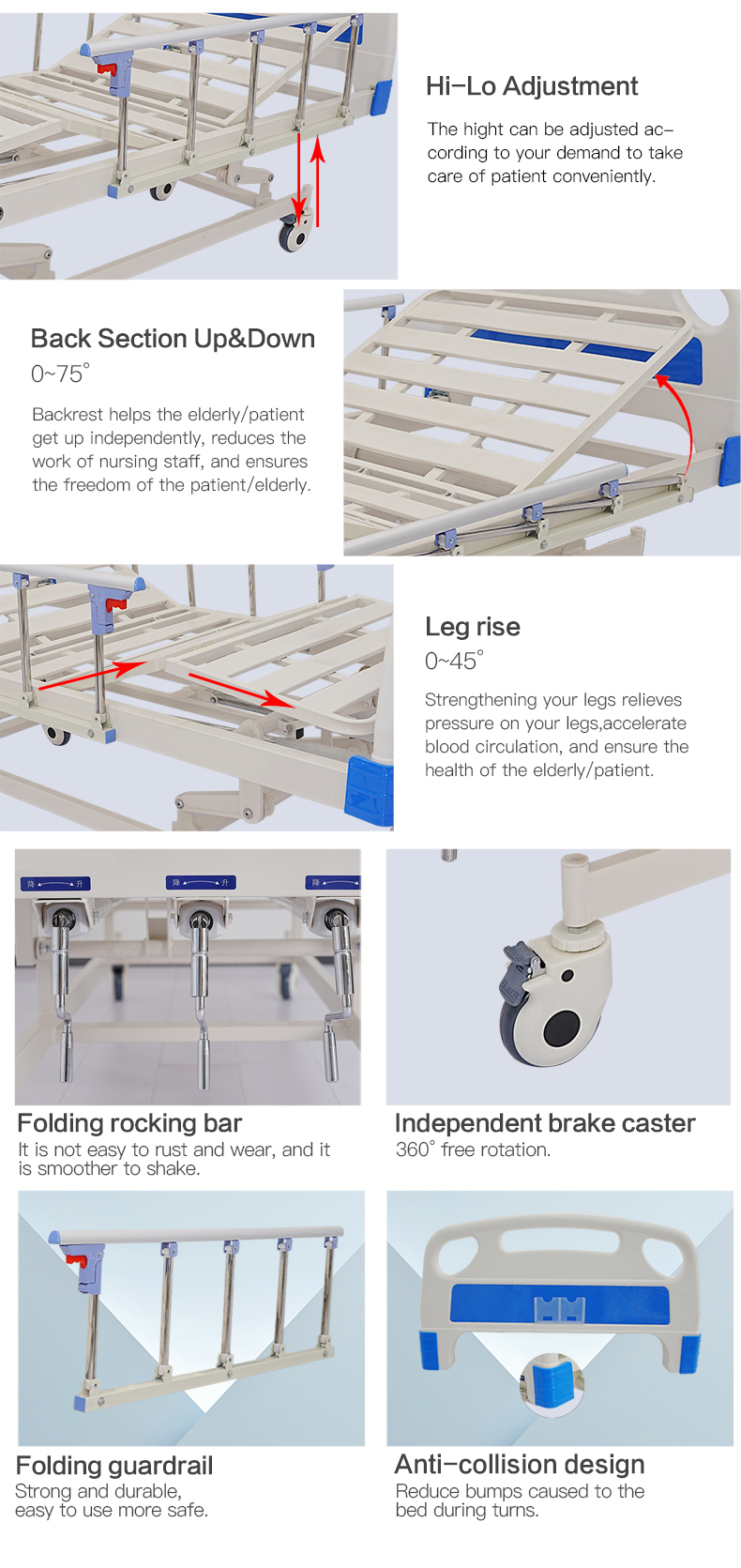

Function | Range | Care Benefit |
|---|---|---|

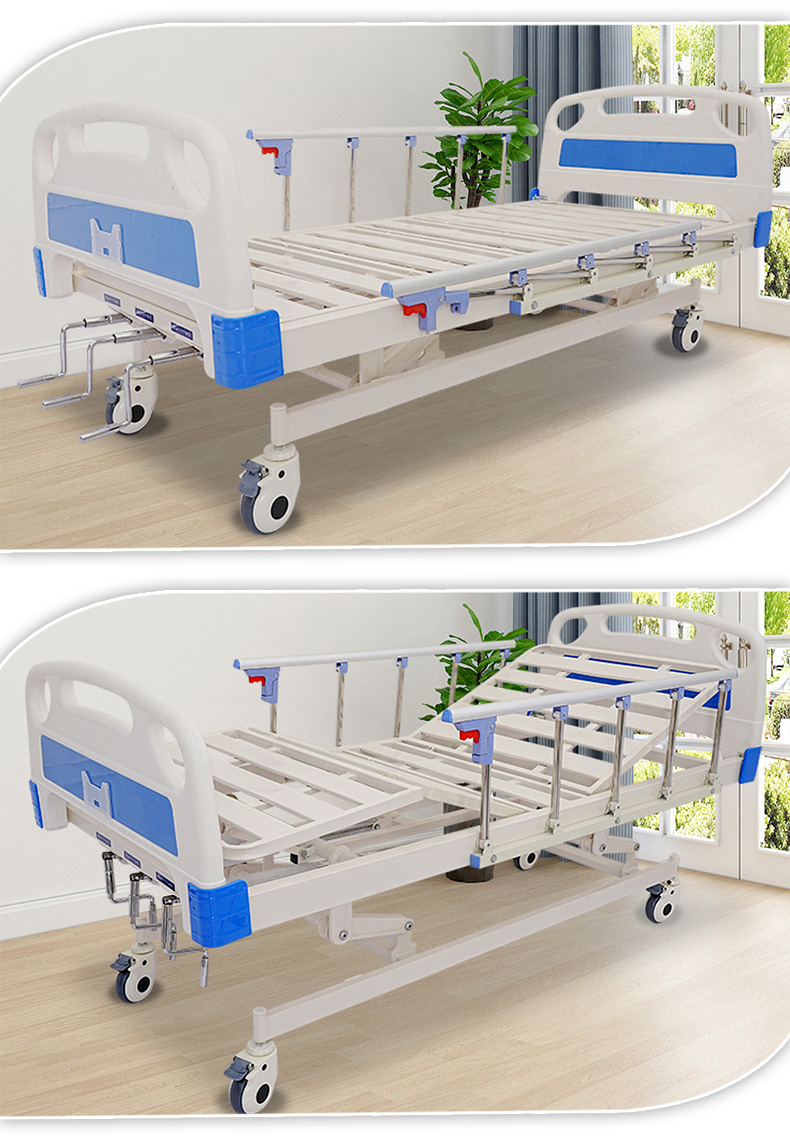

01 · Backrest Adjustment | 0°–75° | Supports upright positioning for dining, communication, respiratory comfort and routine nursing procedures. |
02 · Knee-Section Adjustment | 0°–45° | Improves lower-limb support and helps reduce patient sliding when the backrest is raised. |
03 · Platform Height | 440–750 mm | Allows caregivers to select a practical working height for nursing care, examination and patient transfer. |

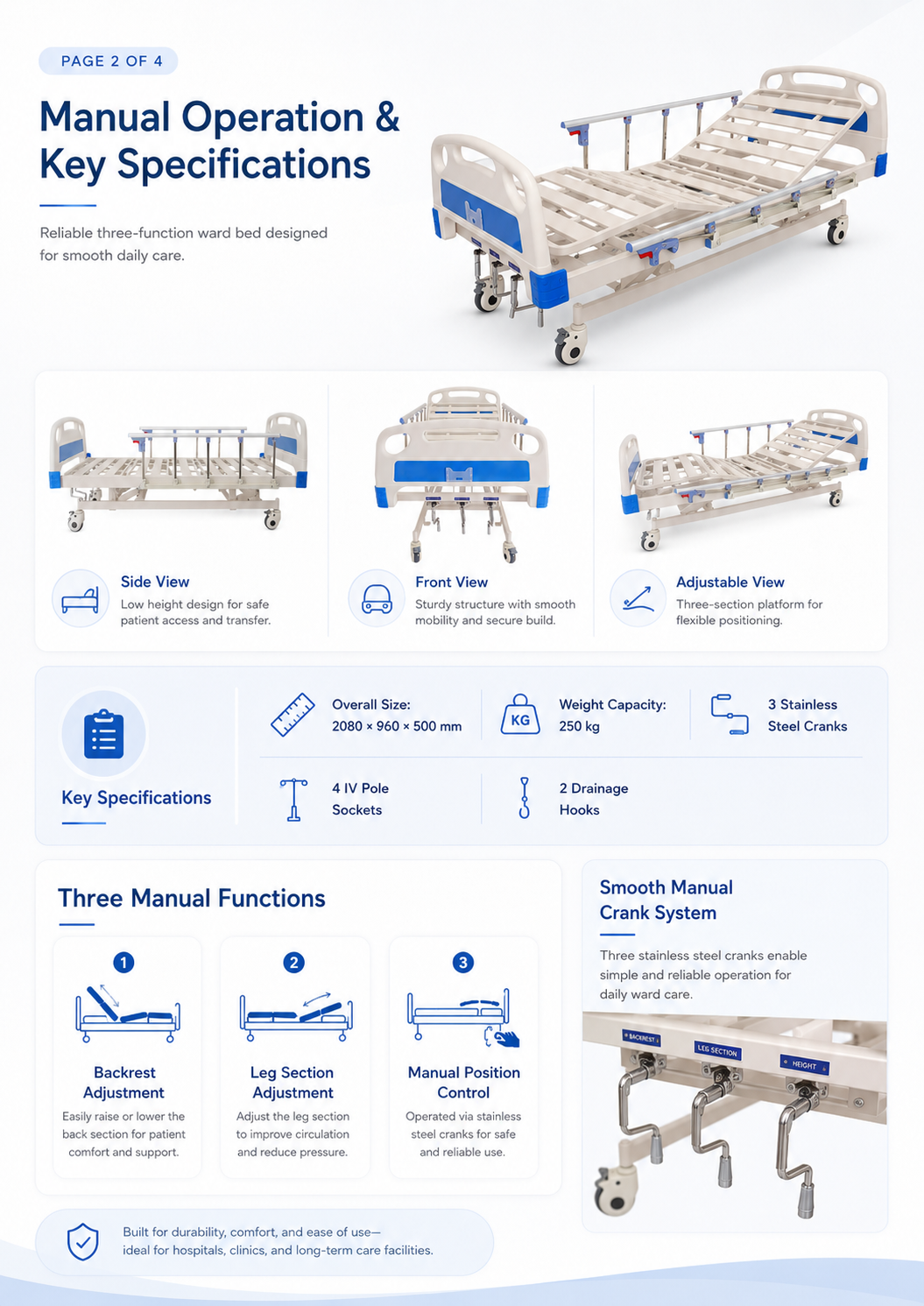

Power-free operation: Each function is independently controlled by a dedicated stainless-steel crank. No electrical connection is required.

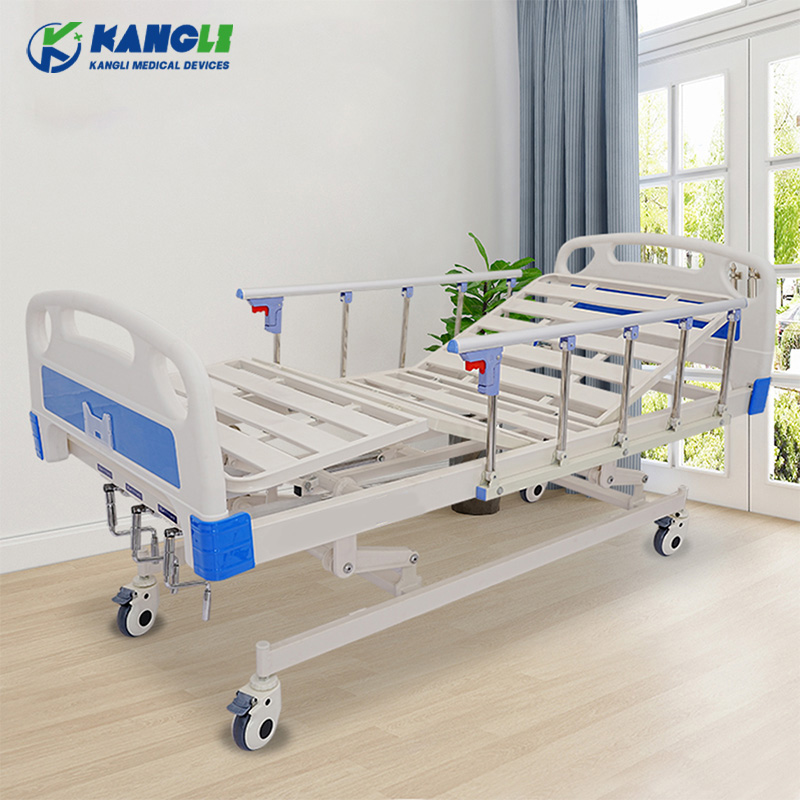

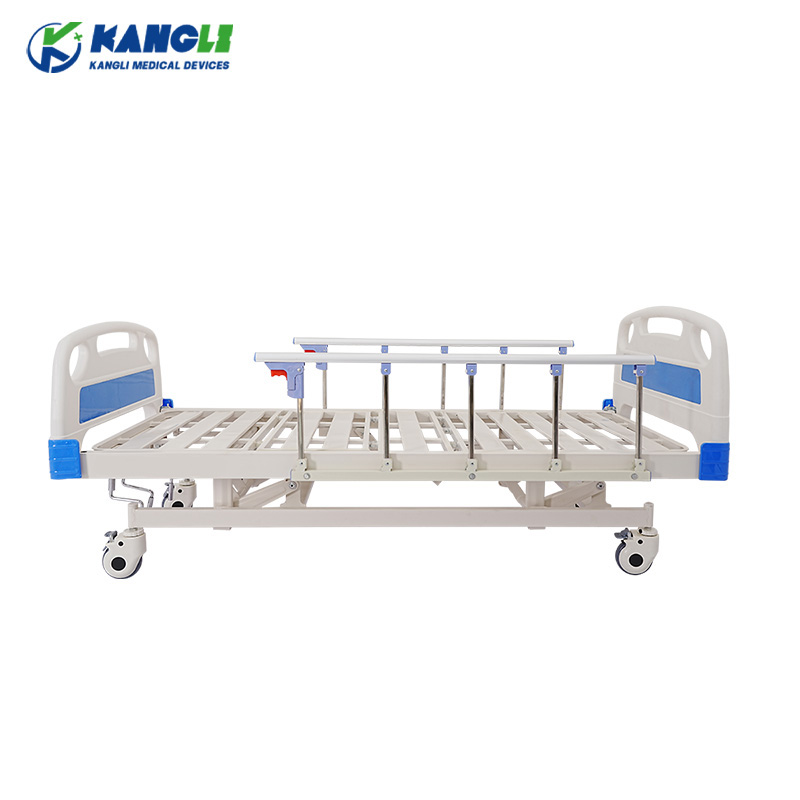

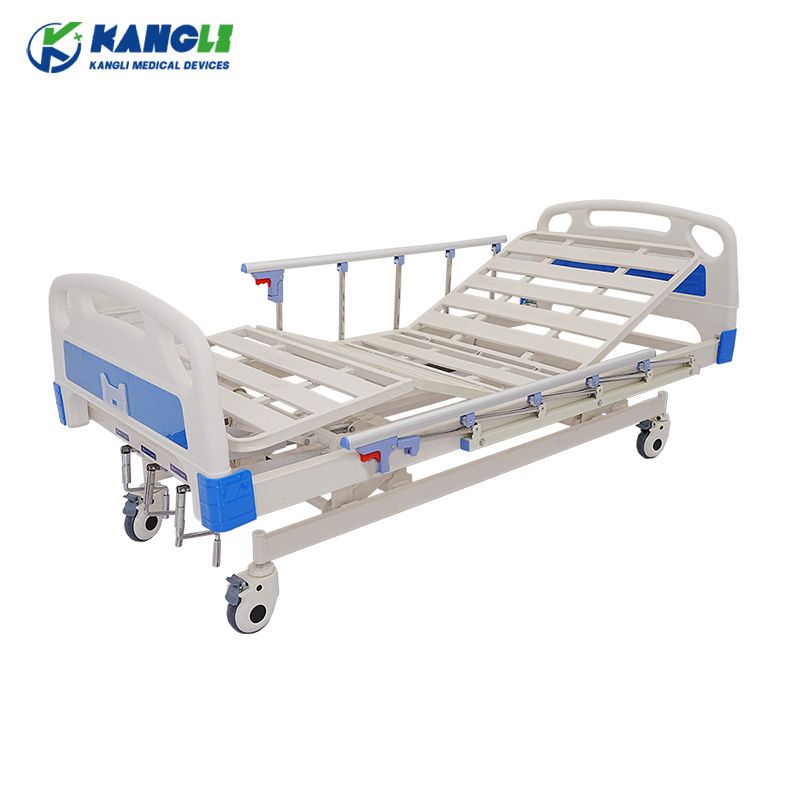

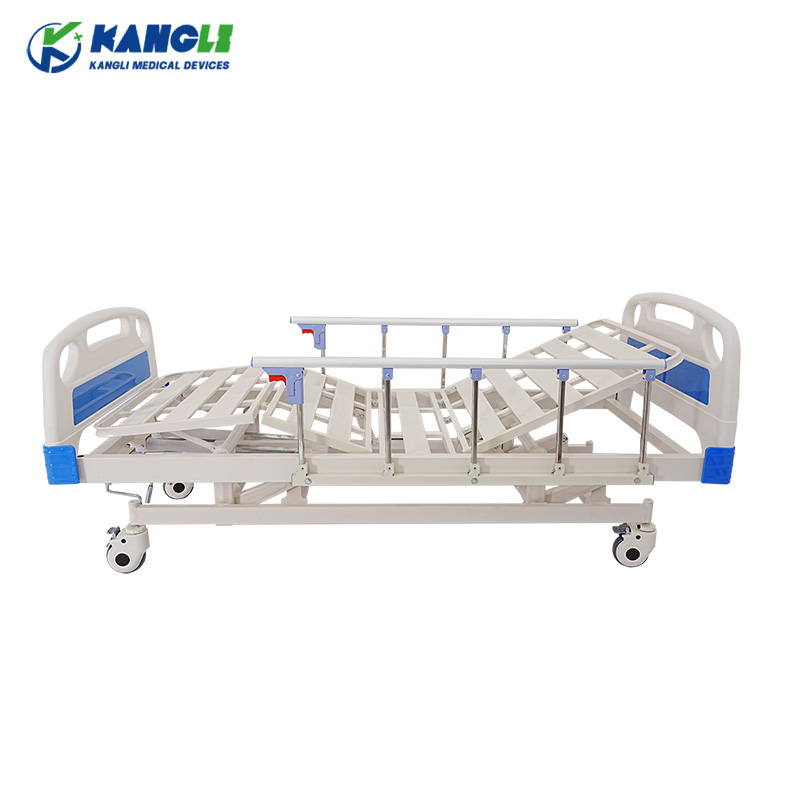

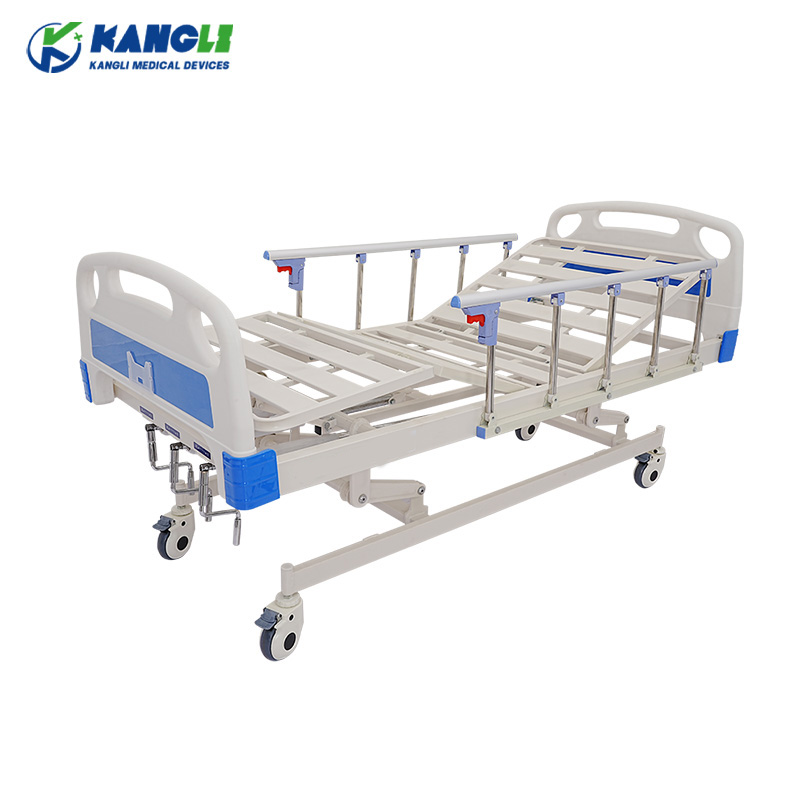

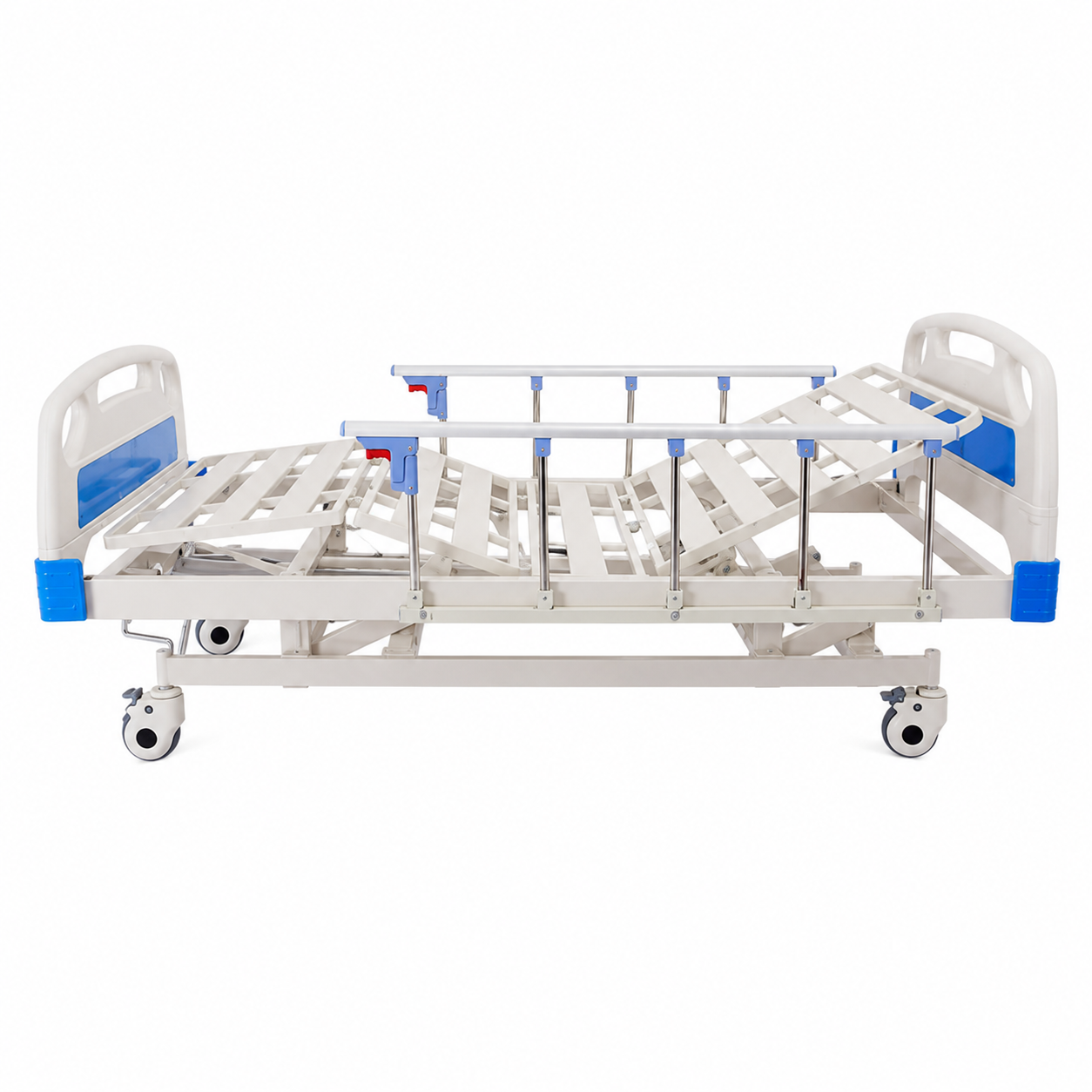

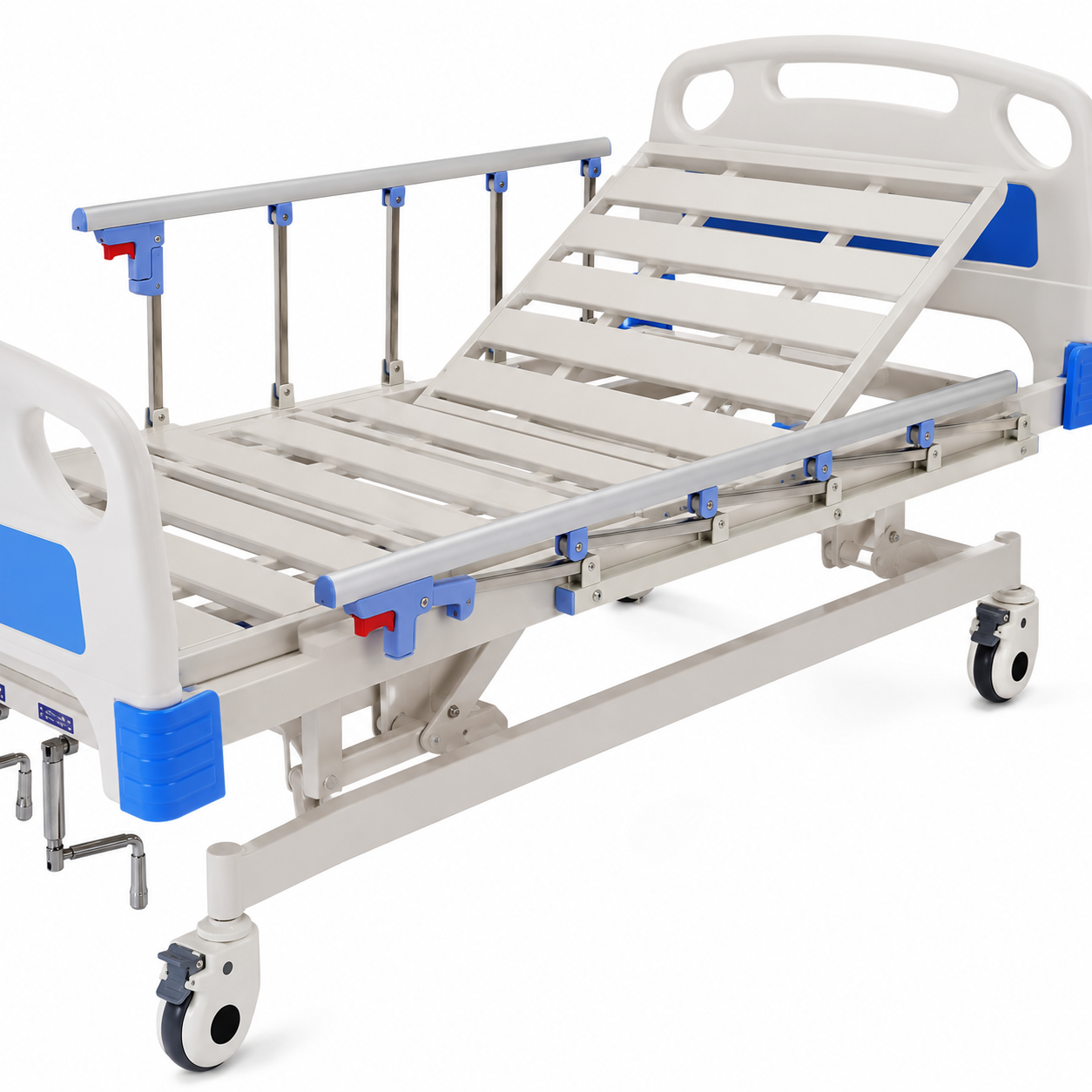

View the manual positioning functions, aluminum-alloy side rails, detachable ABS panels, caster locks and overall bed construction.

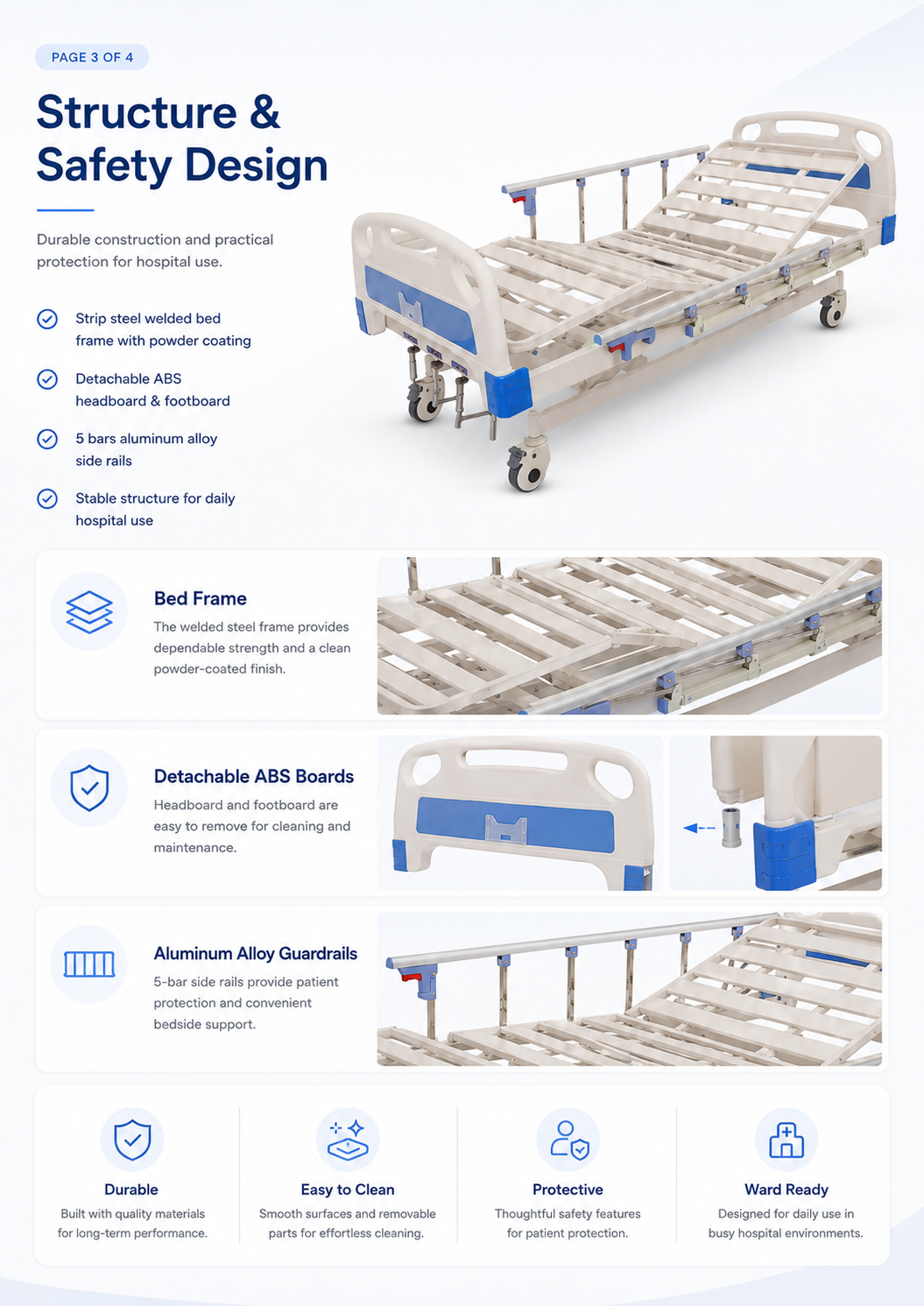

Powder-Coated Strip-Steel Frame | A welded strip-steel structure provides stable mattress support for routine clinical use. The electrostatic powder-coated finish improves surface durability and supports regular cleaning. |
|---|---|
Detachable ABS End Panels | The ABS headboard and footboard can be removed when required, supporting easier access, handling and cleaning. |
5-Bar Aluminum-Alloy Side Rails | Lightweight, corrosion-resistant side rails support patient protection and can be lowered for convenient bedside access. |

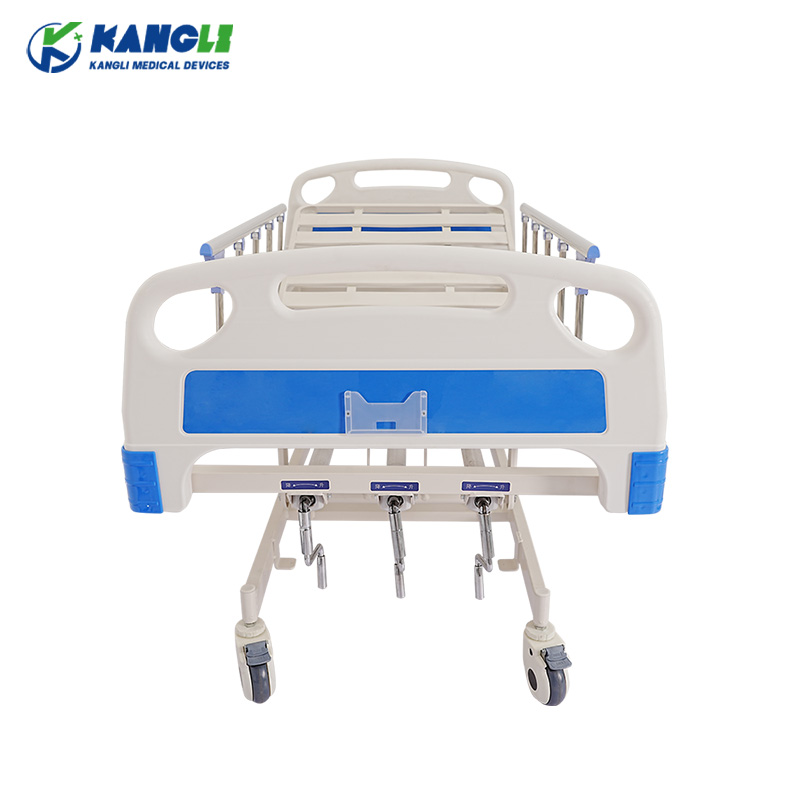

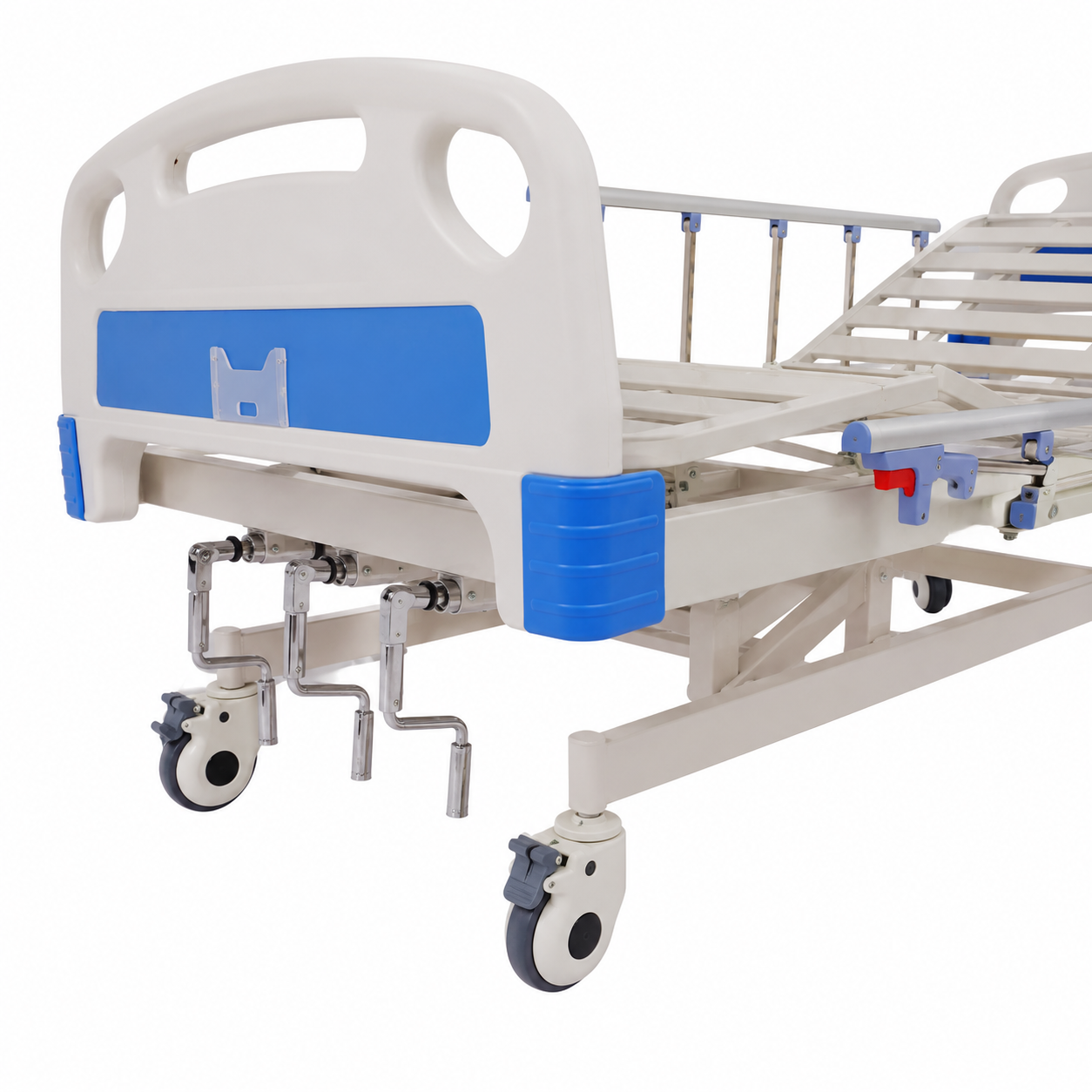

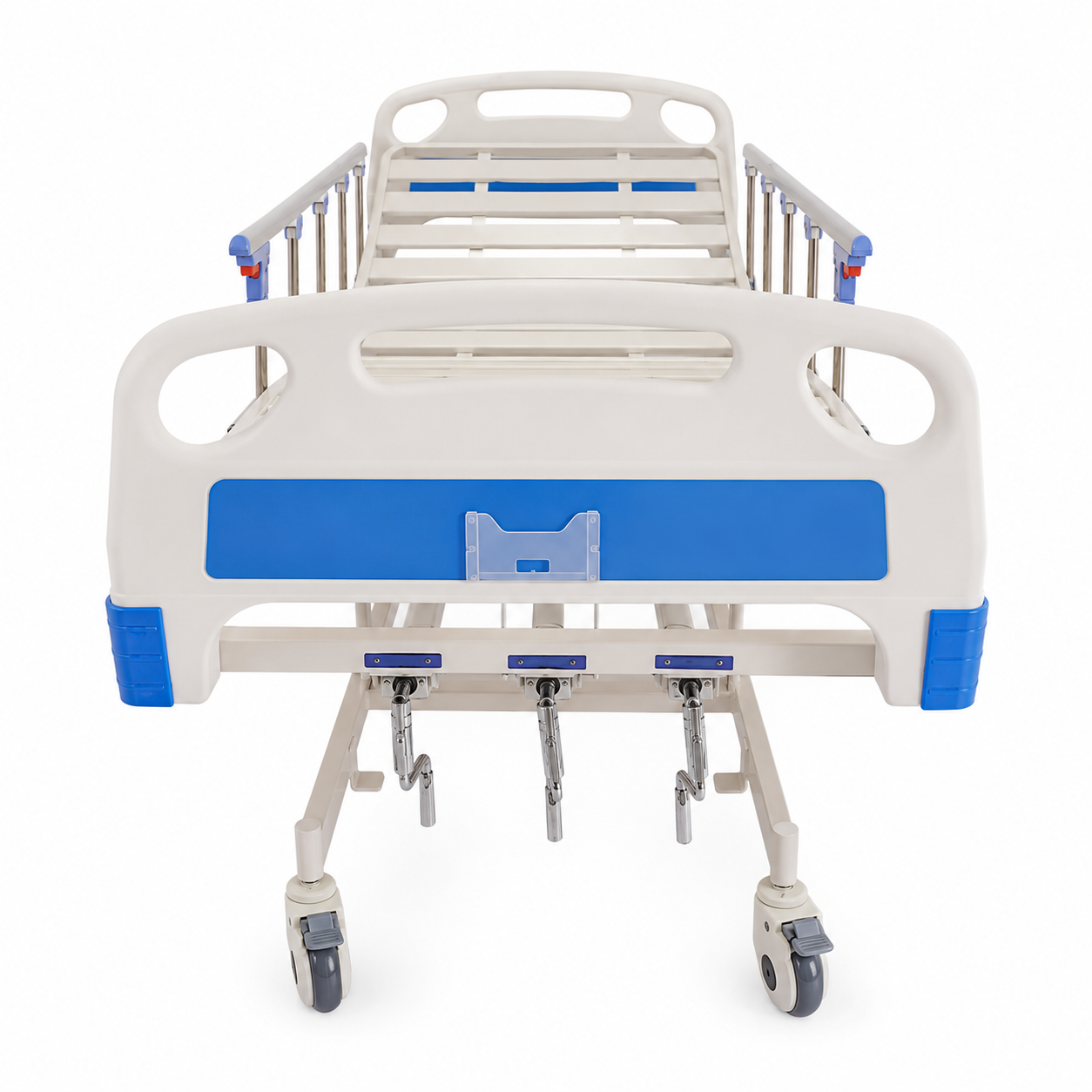

Three Stainless-Steel Cranks | Dedicated mechanical cranks provide independent adjustment and simplify daily operation and maintenance. |

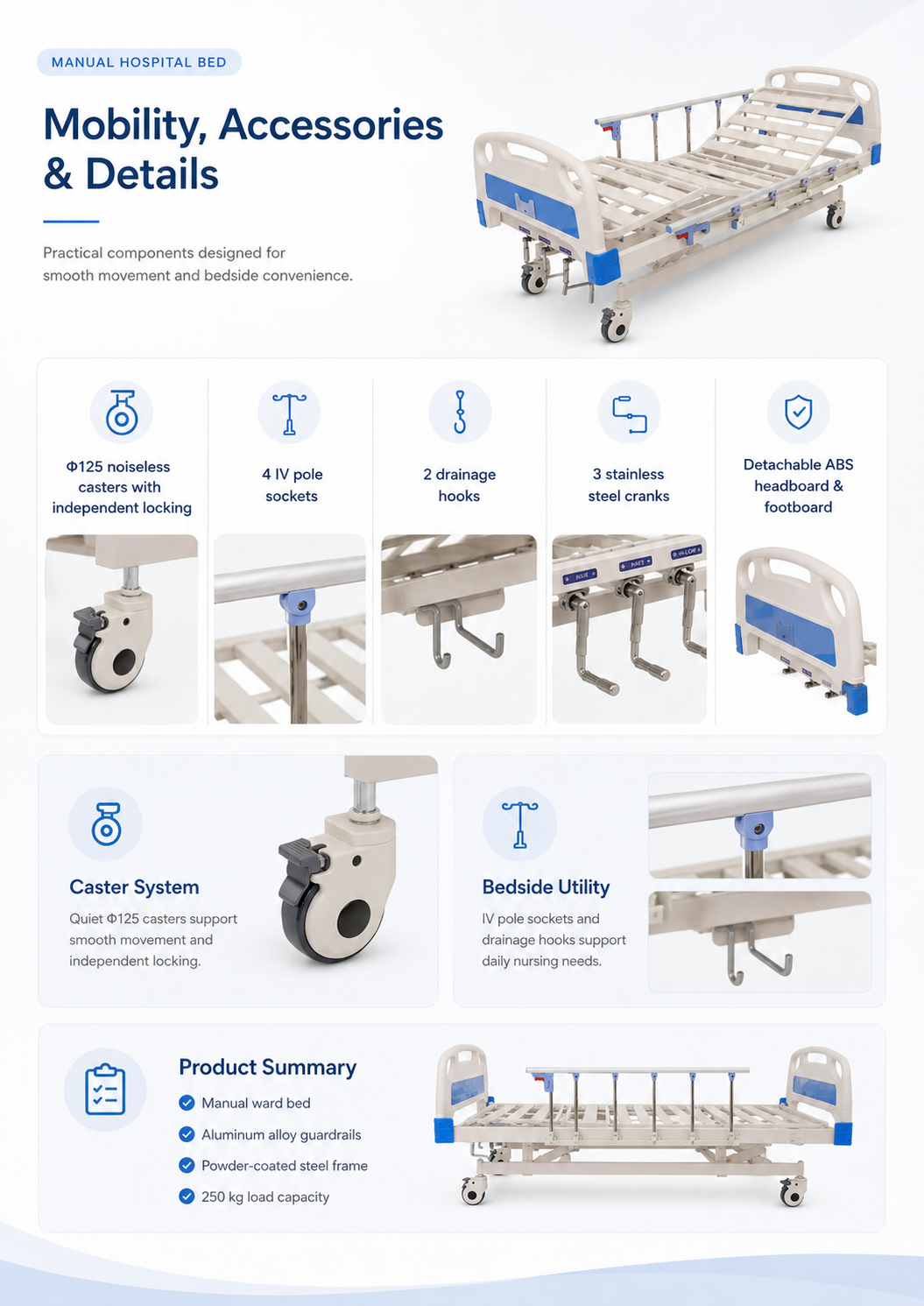

Independent Caster Locks | Four Ø125 mm noiseless casters support smooth movement. Each caster can be locked independently after the bed is positioned. |
|---|---|
250 kg Capacity | The reinforced bed structure is rated for a maximum weight capacity of 250 kg under normal operating conditions. |
Bedside Equipment Support | Four IV pole sockets allow flexible pole placement, while two drainage hooks help organize drainage bags. |

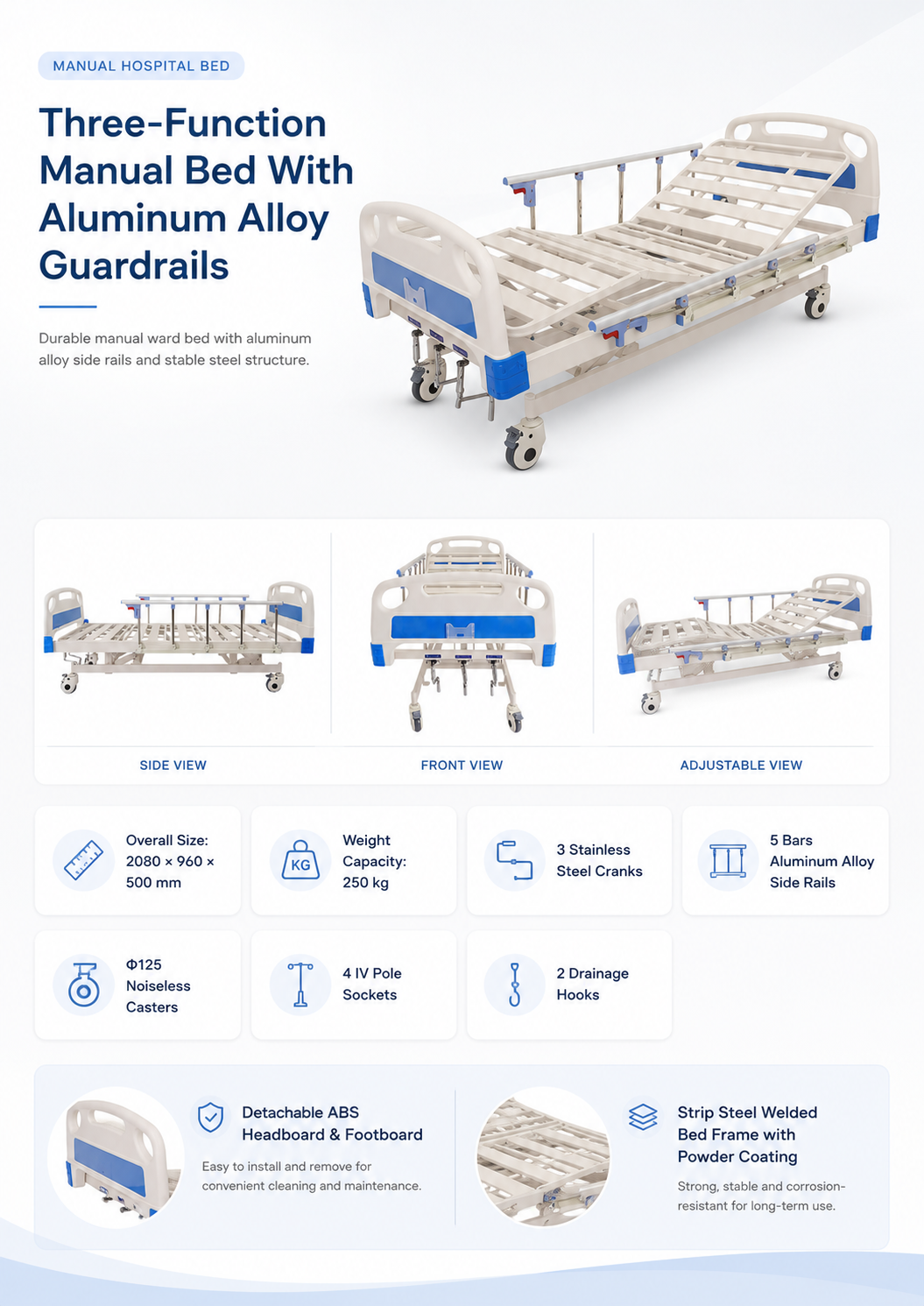

Product Name | Three-Function Manual Hospital Bed |
|---|---|
Model | A-33-3 |
Manual Functions | 3 independent adjustments |
Backrest Adjustment | 0°–75° |
Knee-Section Adjustment | 0°–45° |
Platform Height | 440–750 mm |
Overall Size (L × W) | 2080 × 960 mm |
Weight Capacity | 250 kg |
Bed Frame | Welded strip-steel structure |
Surface Treatment | Electrostatic powder-coated finish |
Headboard / Footboard | Detachable ABS panels |
Side Rails | 5-bar aluminum alloy |
Casters | 4 × Ø125 mm noiseless casters |
Braking System | Independent caster locks |
Manual Cranks | 3 stainless-steel cranks |
IV Pole Sockets | 4 |
Drainage Hooks | 2 |
Power Requirement | No electrical power required |
Need this model for a distributor order or hospital project?
SEND YOUR REQUIRED QUANTITY
One three-function manual hospital bed frame
One detachable ABS headboard
One detachable ABS footboard
One set of 5-bar aluminum-alloy side rails
Four Ø125 mm noiseless casters with independent locks
Three stainless-steel manual cranks
Four IV pole sockets
Two drainage hooks
Medical foam mattress
Waterproof mattress cover
Stainless-steel IV pole
Overbed table or dining board
Bedside cabinet
Project-specific accessories
Optional accessory availability, materials and dimensions are subject to final order confirmation.
General hospital wards
Clinics and treatment centers
Rehabilitation facilities
Nursing homes and long-term care institutions
Medical equipment distributor orders
Hospital projects and tender procurement
Packing Method | Knock-down export packing; one set per reinforced export carton or wooden case |
|---|---|
Estimated Packing Size | Approx. 2020 × 950 × 340 mm / set |
Estimated Net Weight | Approx. 85–95 kg / set |
Estimated Gross Weight | Approx. 95–110 kg / set |
Estimated Volume | Approx. 0.65 CBM / set |
Estimated 20GP Loading | Approx. 38–42 sets |
Estimated 40HQ Loading | Approx. 85–95 sets |
Reference only: Final packing dimensions, net weight, gross weight, CBM and container-loading quantity depend on the confirmed configuration, packing method, mattress and optional accessories. Please request the final packing list before order placement.
Applicable certification and export documentation can be provided according to the selected product configuration and destination-market requirements. Available documents may include:
Applicable ISO quality-management certificates
CE documentation for applicable products and markets
Certificate of Free Sale, where applicable
Declaration of Conformity
Product specifications and user manuals
Packing list and commercial invoice
Tender and project-support documents
Document availability and regulatory requirements must be confirmed before quotation and order placement.
Tianjin Kangli Medical Equipment Co., Ltd. supports distributors, hospitals, contractors and medical project buyers with private-label and project-specific solutions.
Customer logo and private-label production
Customized product colors and configurations
Alternative accessories
Customized carton markings and user manuals
Customized export packaging
Hospital project and tender support
OEM requirements must be confirmed before production. Additional MOQ or customization charges may apply.
Established in 1998 | Long-term experience in medical equipment manufacturing and export projects. |
|---|---|
20,000+ m² Facilities | Manufacturing and assembly capacity for distributor, project and bulk orders. |
OEM / ODM Support | Flexible branding, product configuration, accessories and packaging options. |
Export Project Support | Packing, documentation, spare-parts and tender-support services are available subject to order confirmation. |
No. All three positioning functions are operated mechanically by stainless-steel cranks, making the bed suitable for facilities that prefer power-free operation and straightforward maintenance.
Caregivers can independently adjust the backrest from 0° to 75°, the knee section from 0° to 45°, and the platform height from 440 to 750 mm.
A medical foam mattress and waterproof cover are optional unless they are specifically included in the confirmed quotation or order configuration.
Yes. Logo application, private labeling, colors, selected accessories, user manuals, carton markings and export packaging can be discussed before order confirmation.
Applicable certification and tender-support documents can be provided according to the confirmed product configuration and destination-market requirements. Please list the required documents when requesting a quotation.
Please provide the destination country and seaport, required quantity, mattress or accessory requirements, OEM details and any required certification or tender documents.
For an accurate quotation, please provide the required quantity, destination country and seaport, product configuration, mattress and accessories, OEM requirements, and any certification or tender-document requirements.
Please send: quantity · destination port · accessories · OEM requirements · required documents · preferred FOB or CIF term
GET PRICE & SHIPPING QUOTECHAT ON WHATSAPPEMAIL SALES TEAM
Recommended loading port: Tianjin, China. Import duties, destination-port charges, customs clearance and local delivery are excluded unless otherwise confirmed.
