A-07

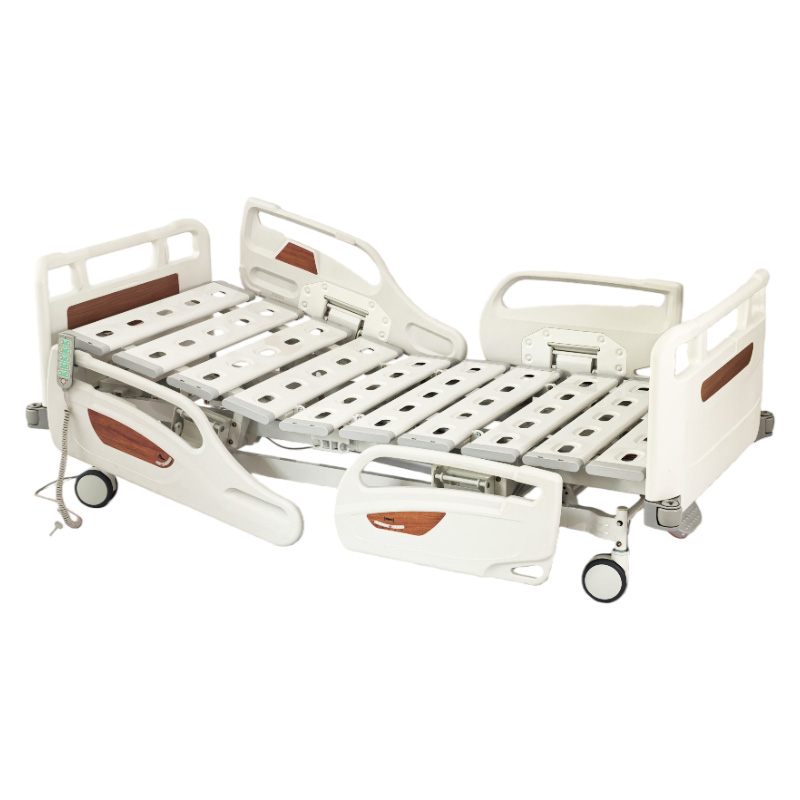

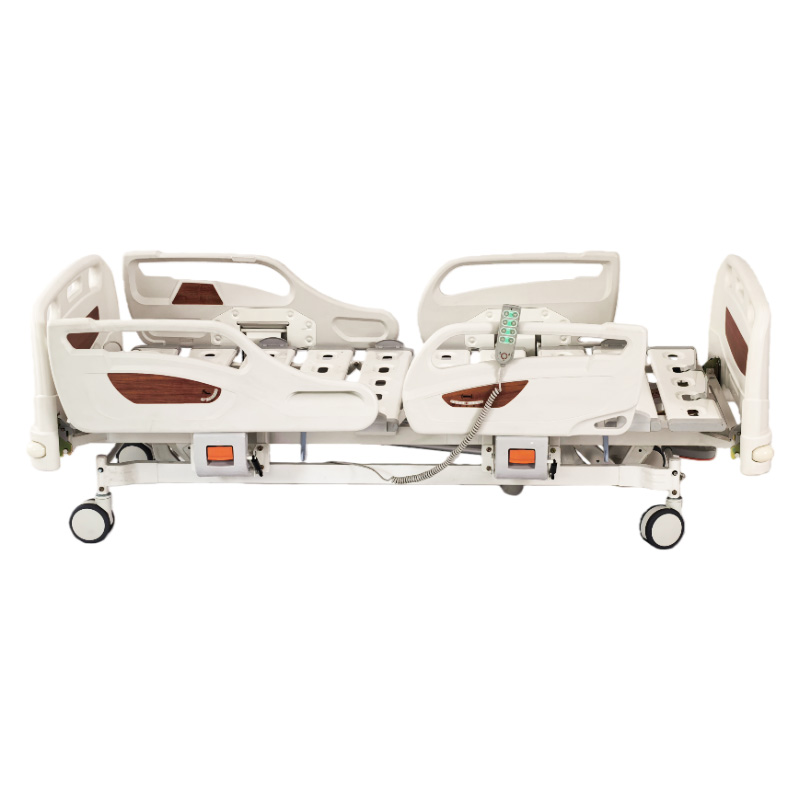

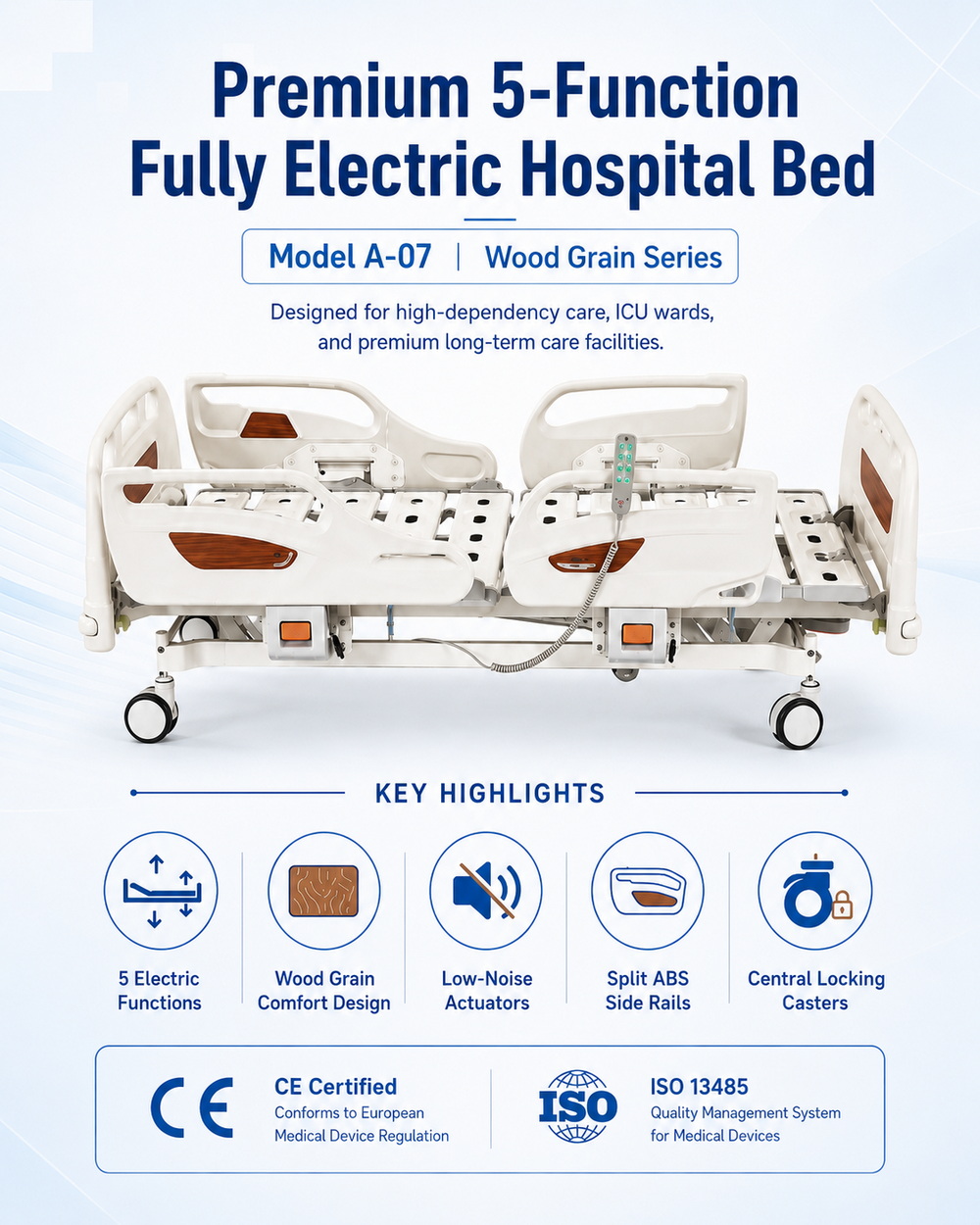

The A-07 Premium 5-Function Electric Hospital Bed is designed for ICU wards, VIP patient rooms, rehabilitation centers and long-term care facilities. It combines five electric positioning functions, premium wood grain panels, ABS tuck-away guardrails and a central braking system to support patient comfort, caregiver efficiency and dependable daily clinical use.
The medical-grade actuator system provides smooth and quiet adjustment of the backrest, knee section, bed height, Trendelenburg and reverse Trendelenburg positions. Its durable steel structure, ventilated bed platform and easy-to-clean components make it a practical choice for hospitals, distributors and healthcare project procurement.

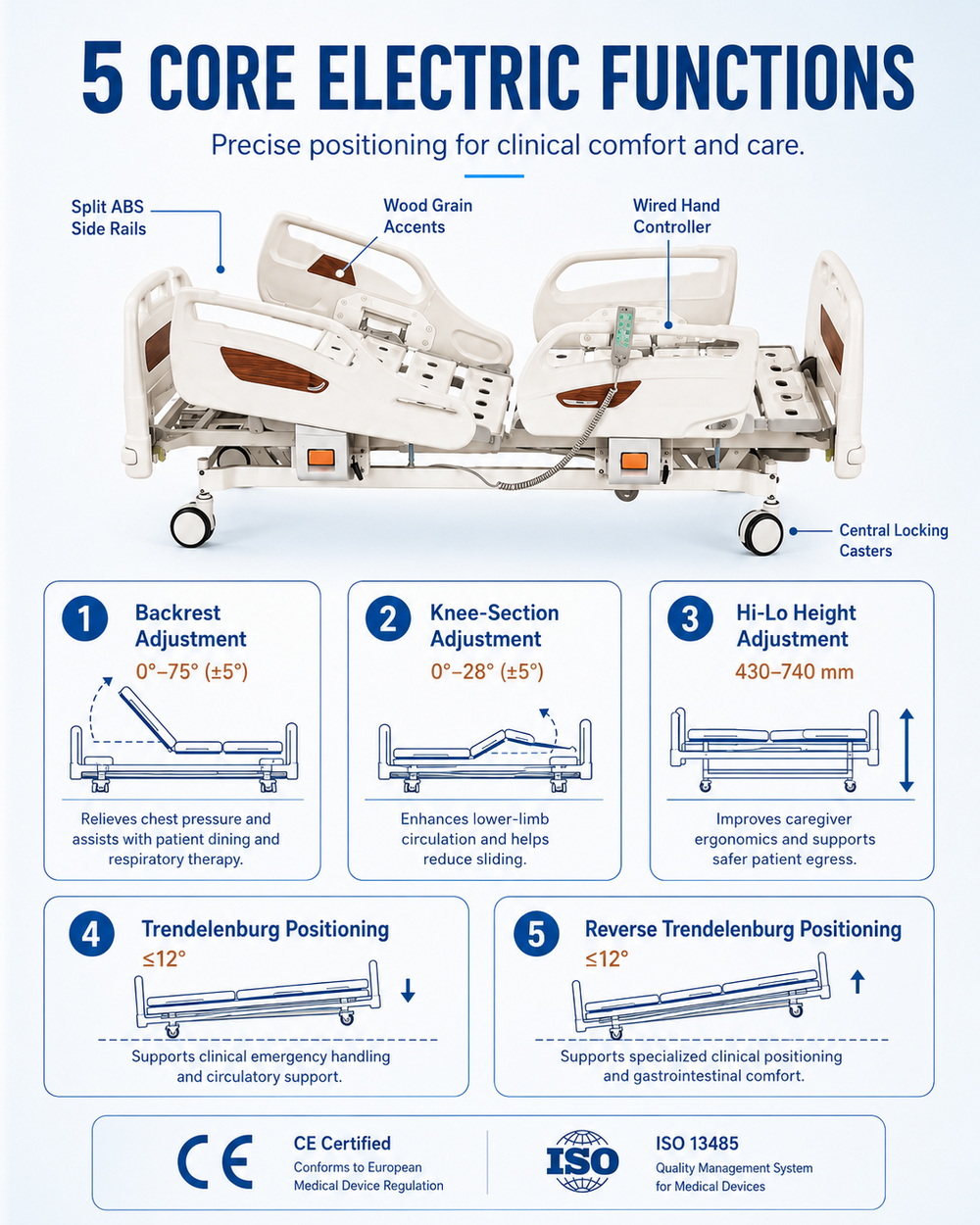

5 ELECTRIC POSITIONING FUNCTIONS
The medical-grade electric actuator system provides smooth and controlled positioning, helping improve patient comfort and caregiver efficiency.
BACKREST ADJUSTMENT: 0°–75° ±5°
Supports upright positioning for patient dining, communication, respiratory care and routine nursing procedures.
KNEE-SECTION ADJUSTMENT: 0°–28° ±5°
Supports lower-limb positioning, helps reduce patient sliding and improves resting comfort.
HI-LO HEIGHT ADJUSTMENT: 430–740 mm
Allows caregivers to select a suitable working height for nursing care and examination. A lower position also supports safer patient entry and exit.
TRENDELENBURG POSITIONING: ≤12°
Supports specialized clinical positioning and emergency-care requirements.
REVERSE TRENDELENBURG POSITIONING: ≤12°
Supports selected clinical procedures, patient posture management and gastrointestinal comfort.

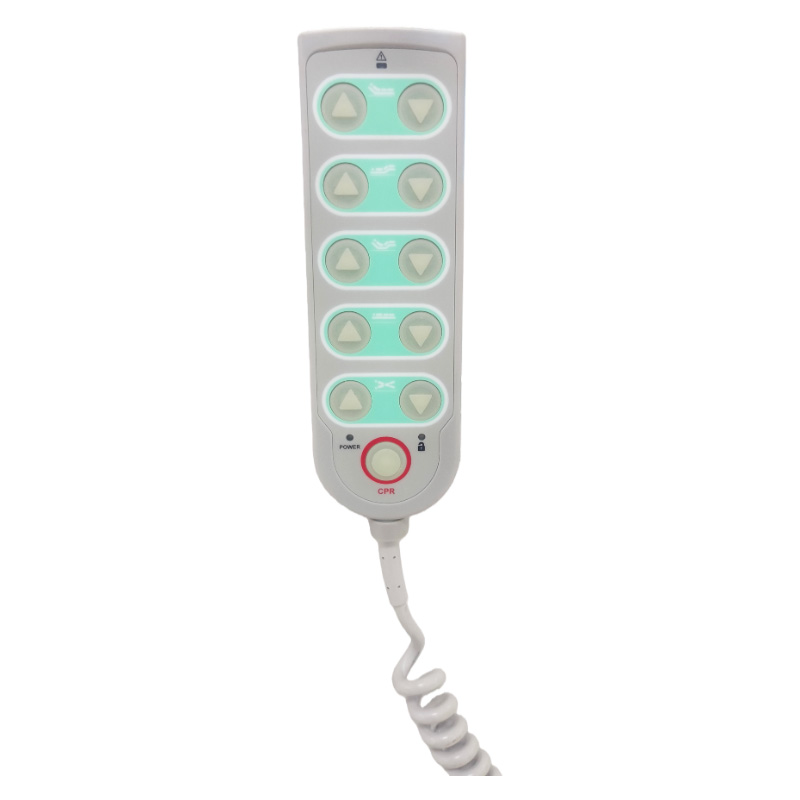

All five functions are operated through a convenient handheld controller.
See the five electric positioning functions, ABS tuck-away guardrails, wood grain panels, central braking system and overall construction in a real product demonstration.
VIDEO HIGHLIGHTS
• Backrest and Knee-Section Adjustment
• Electric Hi-Lo Height Adjustment
• Trendelenburg and Reverse Trendelenburg Positioning
• ABS Tuck-Away Guardrail Operation
• Central Braking Demonstration
• Wood Grain Panel and Bed Platform Details

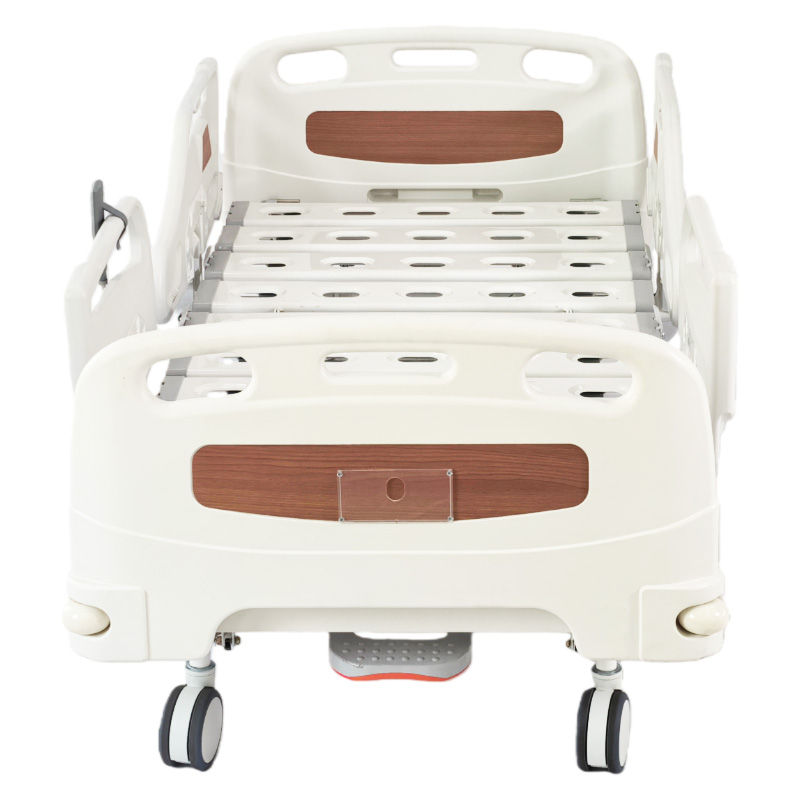

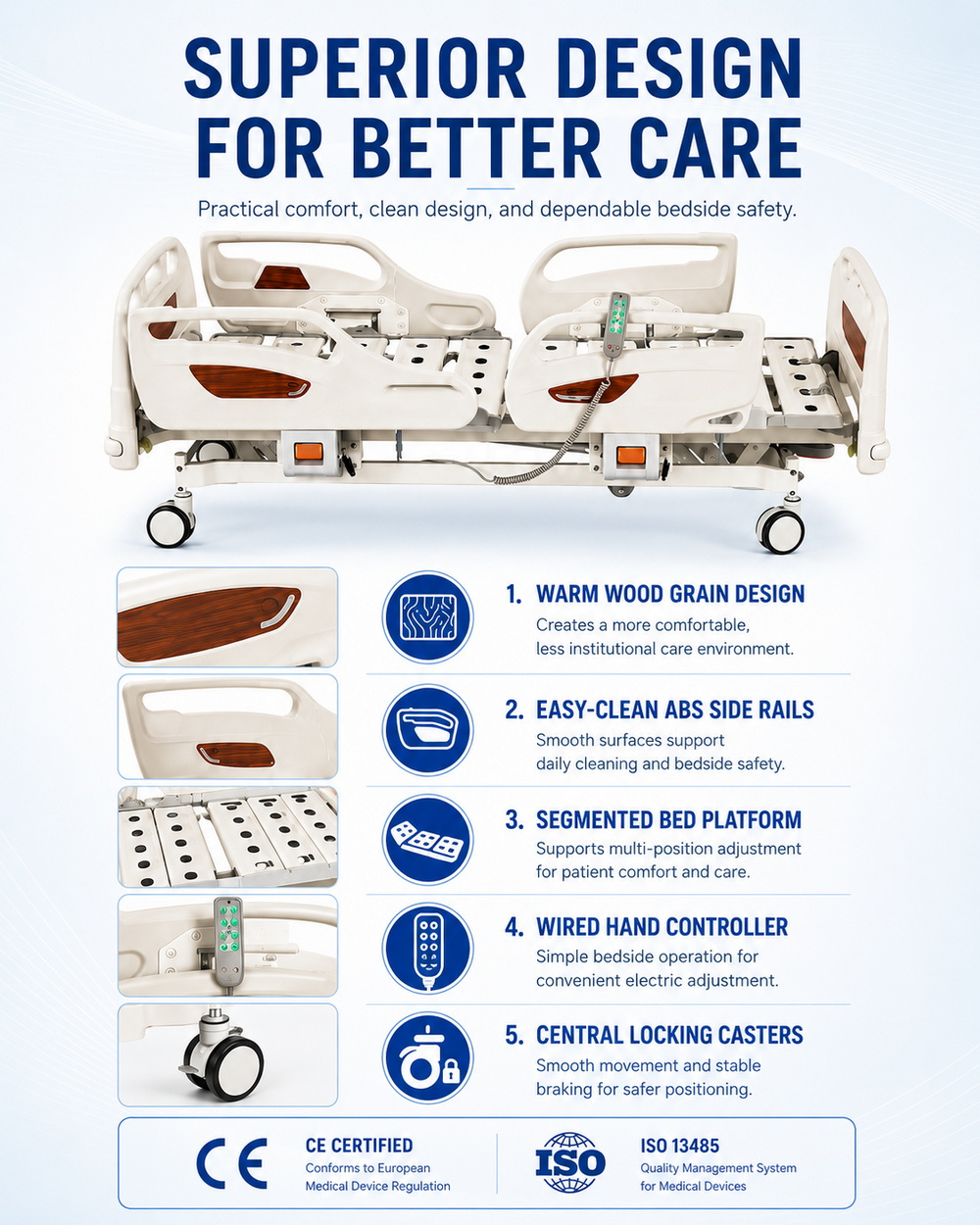

WARM WOOD GRAIN DESIGN
The headboard, footboard and structural accents feature a premium wood grain appearance, helping create a warmer and more comfortable care environment for patients.
RIVET-FREE STEEL BED PLATFORM
The steel bed platform is formed through a one-time mold-pressing process without exposed surface rivets. The smooth structure supports easier cleaning and helps reduce areas where dust and residue may collect.
VENTILATED BED SURFACE
Dense elongated ventilation and pressure-relief slots support airflow under the mattress and help maintain a drier and more comfortable patient environment.
DURABLE STEEL STRUCTURE
The reinforced steel frame provides stable support for daily clinical use and a safe working load of at least 200 kg.
EASY-TO-CLEAN COMPONENTS
Smooth ABS surfaces, removable end panels and a powder-coated steel structure support routine hospital cleaning and maintenance.

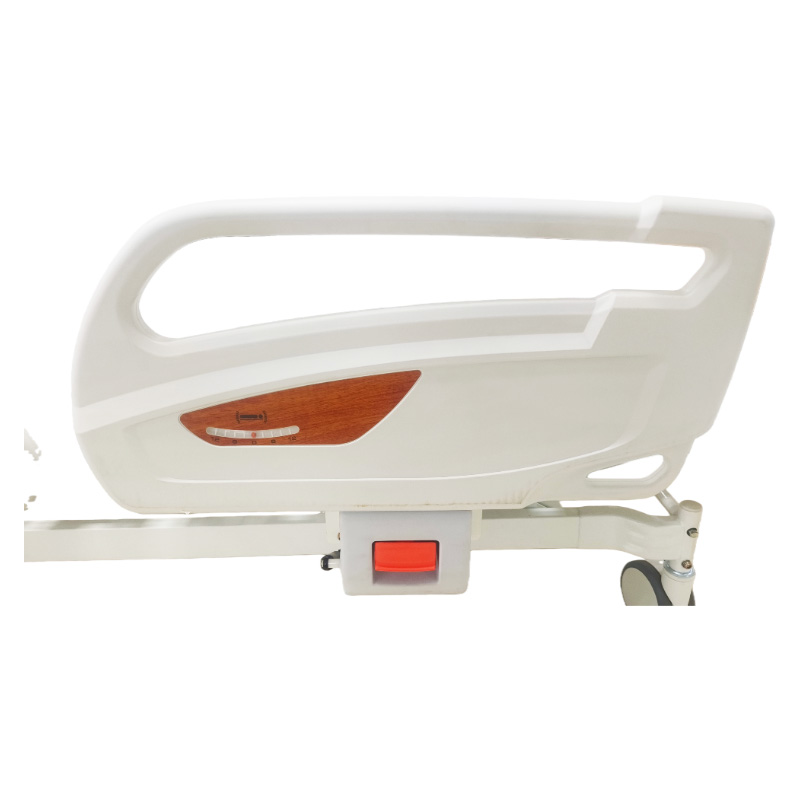

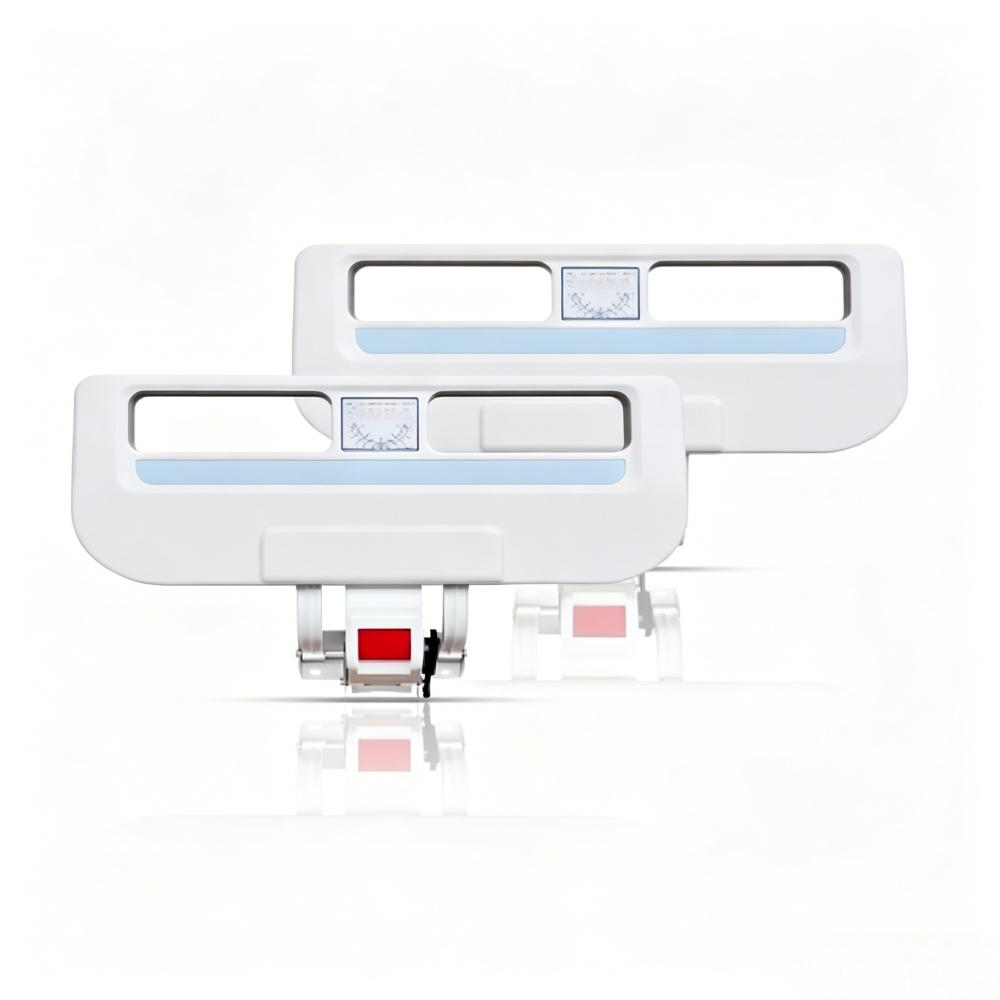

4 ABS TUCK-AWAY GUARDRAILS
Four independent ABS guardrails provide patient protection while allowing convenient caregiver access. The tuck-away design allows the rails to lower smoothly below the mattress platform.
DAMPING-BUFFER MECHANISM
The buffered lowering mechanism supports smooth guardrail movement and helps reduce sudden dropping and pinching risks.
Ø125 MM TWIN-WHEEL CASTERS
Medical-grade twin-wheel casters with wear-resistant TPR tread support smooth, quiet movement and help reduce marks on hospital floors.
CENTRAL BRAKING SYSTEM
A synchronized central braking system allows caregivers to stabilize the bed efficiently through a convenient foot-control mechanism.

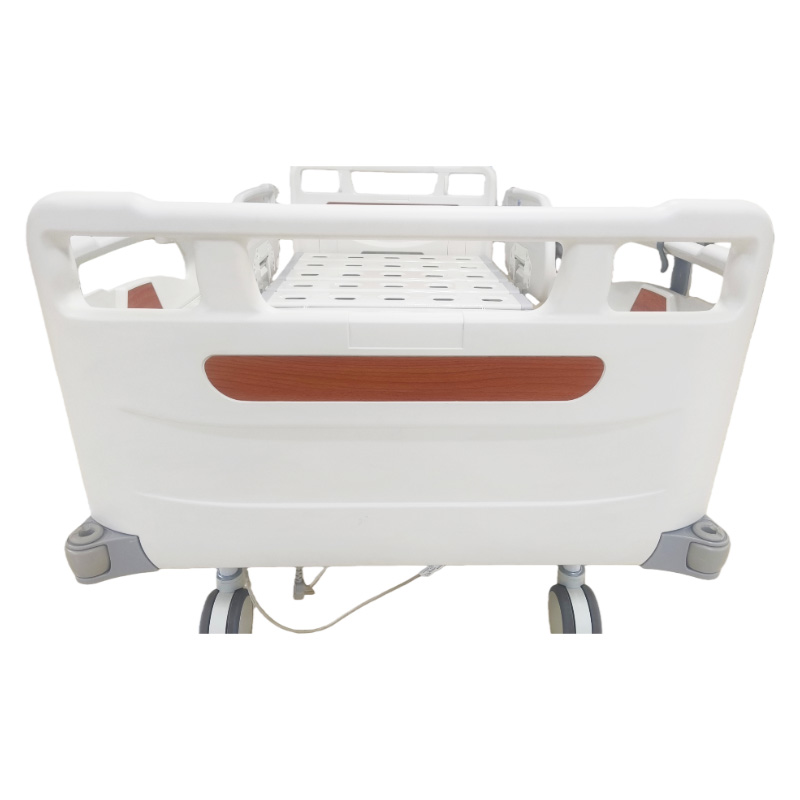

DETACHABLE HEADBOARD & FOOTBOARD
The headboard and footboard can be removed when required, supporting easier patient access, emergency care and routine cleaning.

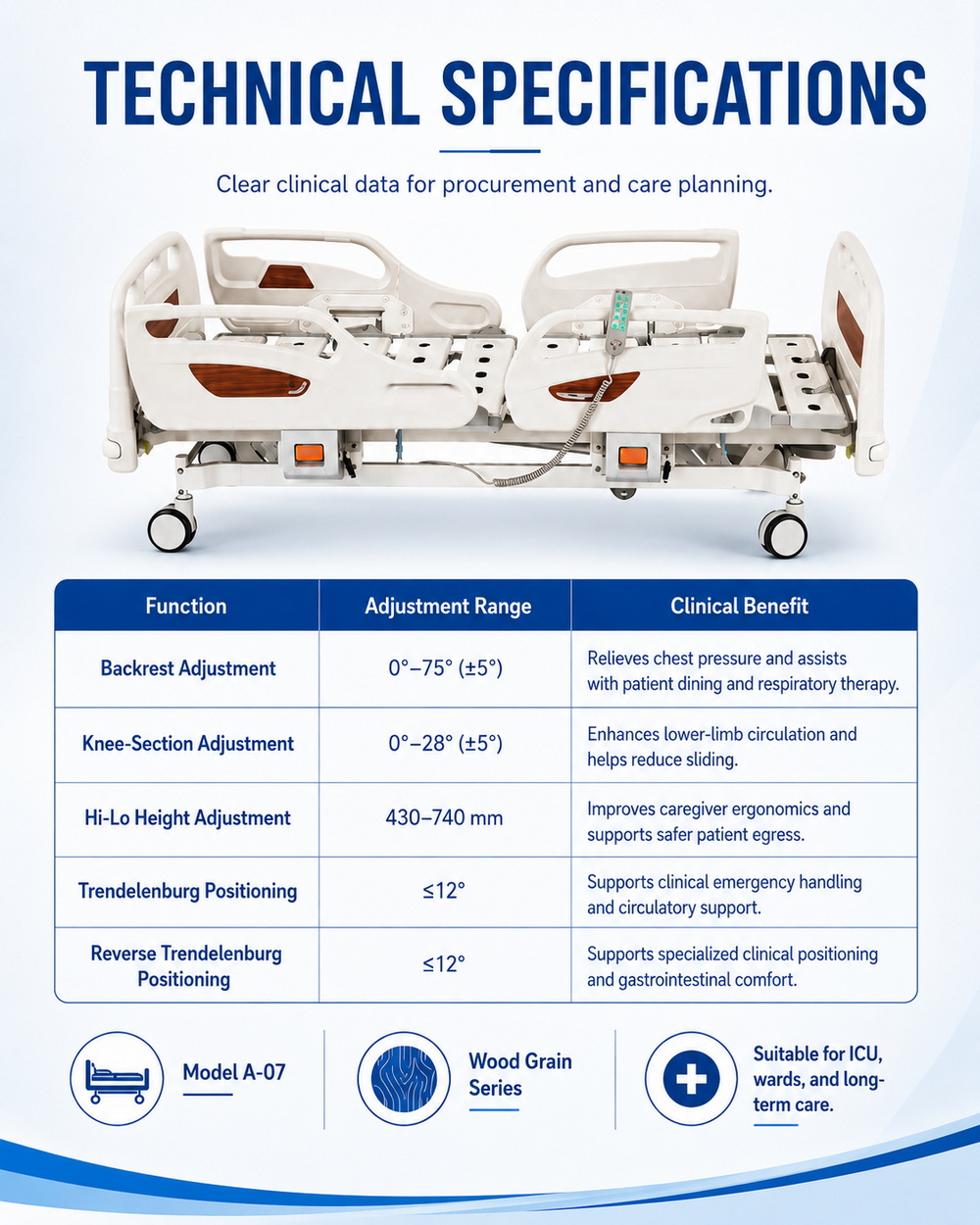

TECHNICAL SPECIFICATIONS
Product Name: Premium 5-Function Electric Hospital Bed
Model Number: A-07
Overall Size: 2180 × 1020 × 430–740 mm
Electric Functions: 5 Functions
Backrest Adjustment: 0°–75° ±5°
Knee-Section Adjustment: 0°–28° ±5°
Height Adjustment: 430–740 mm
Trendelenburg Positioning: ≤12°
Reverse Trendelenburg Positioning: ≤12°
Safe Working Load: ≥200 kg / 440 lbs
Headboard & Footboard: Detachable Type with Wood Grain Finish
Guardrails: 4 Independent ABS Tuck-Away Guardrails
Guardrail Mechanism: Damping-Buffer Lowering System
Bed Platform: Rivet-Free Mold-Pressed Steel Platform with Ventilation Slots
Casters: Ø125 mm Medical Twin-Wheel Casters
Caster Material: Wear-Resistant TPR Tread
Braking System: Central Braking System
Actuator System: Low-Noise Medical Linear Actuators with Overload Protection
Input Voltage and Plug Standard: Customized According to Destination Market
Applications: ICU Wards, VIP Patient Rooms, Rehabilitation Centers, Nursing Homes and Long-Term Care Facilities
• 1 Premium Electric Hospital Bed Frame
• 1 Detachable Wood Grain Headboard
• 1 Detachable Wood Grain Footboard
• 4 ABS Tuck-Away Guardrails with Damping Buffer
• Ø125 mm Twin-Wheel Central-Locking Casters
• 1 Central Braking System
• Electric Actuators and Control System
• 1 Handheld Controller
• IV Pole Sockets
• Drainage Hooks
• 1 Stainless-Steel Two-Section IV Pole
• Medical Foam Mattress
• Waterproof Mattress Cover
• Backup Battery
• Overbed Table
• Bedside Cabinet
• Dining Table Board
• Alternative Guardrail Configuration
• Alternative Wood Grain Color
• Customized Voltage and Plug
• Other Project-Specific Accessories
Accessory availability and specifications are subject to final order confirmation.
MINIMUM ORDER QUANTITY
MOQ is confirmed according to the selected configuration, customization requirements and order quantity. Sample orders can be discussed for product evaluation.
PRODUCTION LEAD TIME
Production lead time will be confirmed according to the final order quantity, product configuration and customization requirements.
EXPORT PACKAGING
Export-standard seaworthy packaging is available. Flat-packed or pre-assembled packaging can be arranged according to the approved configuration and container-loading plan.
Packing size, net weight, gross weight and CBM will be confirmed before quotation and order placement.
CONTAINER LOADING
20GP and 40HQ loading quantities depend on the final product configuration and approved packing method. A container-loading plan can be provided before order confirmation.
WARRANTY & SPARE PARTS
Warranty terms for the steel structure, actuator system, controller and electrical components will be confirmed in the quotation and sales contract.
Spare-parts support and remote technical assistance are available upon request.
CERTIFICATION & DOCUMENT SUPPORT
Applicable certification and export documentation can be provided according to the selected product configuration and destination-market requirements.
Available documents may include:
ISO quality-management system certificates
CE documentation for applicable products and markets
Certificate of Free Sale (CFS), subject to destination requirements
Declaration of Conformity
Product specifications and user manuals
Packing list and commercial invoice
Tender and project-support documents
Document availability should be confirmed before quotation and order placement. Certification requirements may vary according to the destination country, selected configuration and applicable regulations.
Tianjin Kangli Medical Equipment Co., Ltd. supports OEM and ODM services for distributors, hospital projects and bulk buyers.
Available customization options include:
• Customer Logo Application
• Private-Label Production
• Customized Wood Grain Colors
• Customized Headboard and Footboard Design
• Customized Product Configuration
• Alternative Voltage and Plug Standards
• Customized Accessories
• Customized Carton Markings
• Customized User Manuals
• Customized Export Packaging
OEM requirements should be confirmed before production. Additional MOQ or customization charges may apply.
• Medical Equipment Manufacturer Established in 1998
• More Than 20,000 m² of Manufacturing Facilities
• Experience Serving Hospitals, Distributors and Project Buyers
• ISO Quality-Management Systems
• CE Documentation Available for Applicable Products
• OEM and ODM Customization Support
• Export Packaging and Container-Loading Support
• Spare-Parts and After-Sales Technical Assistance
• Support for Hospital Projects and Tender Procurement
For an accurate quotation, please provide:
• Destination Country and Seaport
• Required Quantity
• Required Product Configuration
• Mattress and Optional Accessories
• Voltage and Plug Standard
• OEM or Logo Requirements
• Required Certifications or Tender Documents
• Preferred Trade Term: FOB or CIF
FOB QUOTATION
Please provide the required quantity, configuration, accessories and OEM requirements. The FOB price will be calculated according to the final product configuration and export packaging.
Recommended Loading Port: Tianjin, China
CIF QUOTATION
Please provide the destination country and destination seaport. The CIF quotation will include the confirmed product price, export packaging and sea freight to the nominated destination port.
Import duties, destination-port charges, customs clearance and local delivery are not included unless otherwise confirmed.
