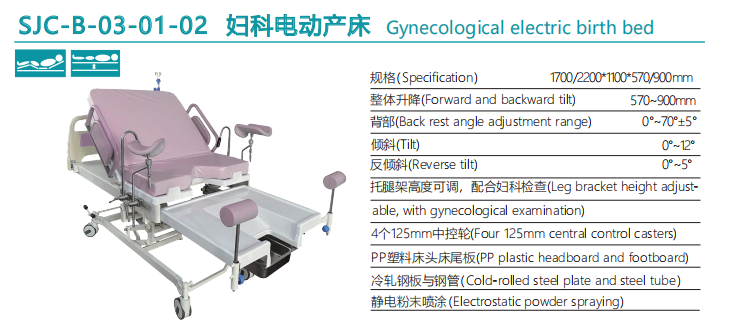

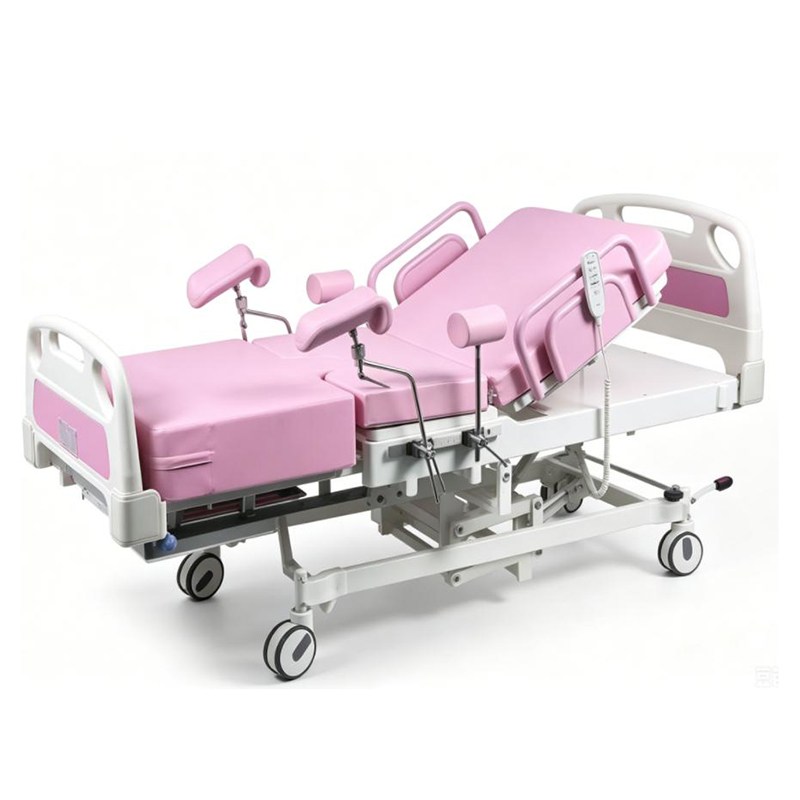

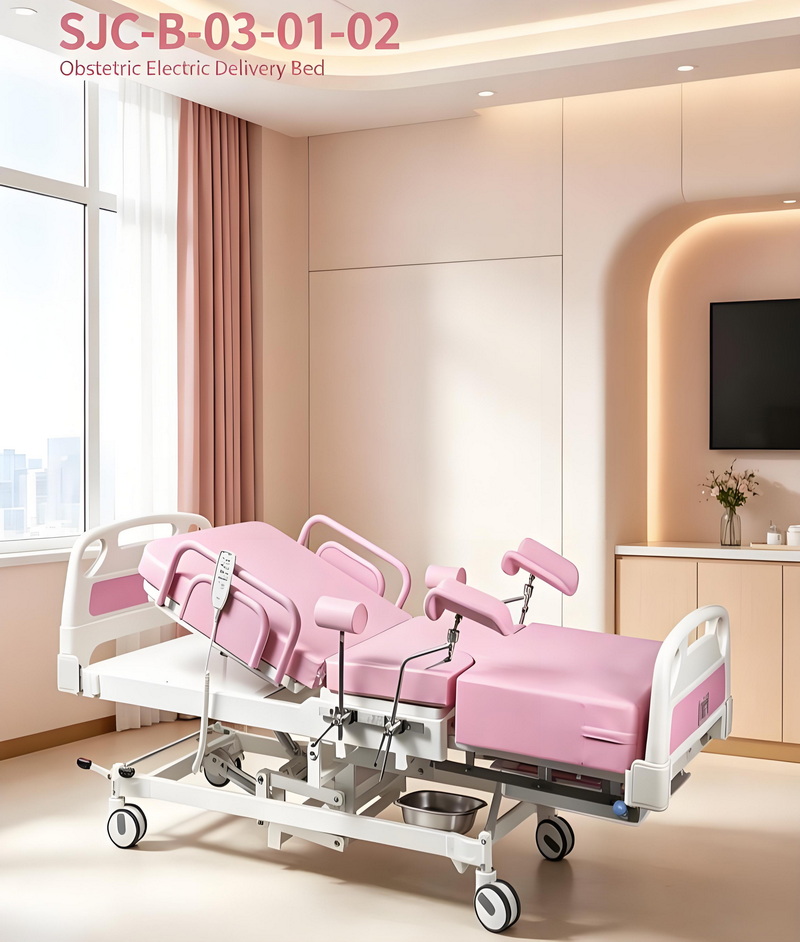

1. Dimension requirements: Length 2200mm, width 1100mm, the lowest position of the bed body is 570mm, and the highest position is 900mm.
2. Position adjustment functions: Back elevation at least 0-70°, tilt 0-12°, counter-tilt 0-5°, height adjustment at least 570-900mm, and electric CPR function.
3. The delivery bed surface can be adjusted front and back.
4. Three Linak motors.
5. The bed board is made of PP plastic material as a whole, with a smooth surface without burrs, not cutting hands, beautiful appearance, breathable, and strong pressure resistance. The bed frame is made of 30×60mm cold-rolled steel pipe, with a pipe thickness of 1.5mm, high-quality carbon structural steel rectangular tubes laser-cut and welded into shape. The bed body has a longitudinal four-beam structure, which is stable and noise-free in operation, solid and firm, ensuring the stability of the back and leg elevation angles during use at any amplitude. The safe load capacity of the bed body is ≥240kg.
6. The guardrail style is two-piece, made of engineering plastic, with a beautiful surface without pitting, corrosion-resistant, and easy to clean.
7. Both sides are equipped with one stainless steel handrail, one plastic mobile footrest, one foot support, and a stainless steel waste basin under the seat board, which is helpful for adjusting the delivery position of pregnant women and the midwife's delivery work.
8. The head and tail boards are 950×540mm in size, and are fixed with a double-locking device. The lock switch is fixed on the bed beam and has a clear color distinction. It is firm when fixed and easy to unlock. The head and tail boards should be made of new PP (polypropylene) raw material by blow molding technology. When fixed, they should not be damaged under a 70KG pull force and can be used normally. The head and tail boards are equipped with anti-collision corner guards.
9. Casters: Five-inch double-sided medium crown central control wheels, with a Ф28mm insert rod fixed design. The main frame is made of PA material, and the wheel surface is made of TPU wear-resistant material, which is firm and durable. It is equipped with a fully enclosed self-lubricating bearing, which is waterproof, prevents foreign objects from being rolled in, and is silent and wear-resistant. The central control brake device is located in the center of the bed leg base, with one-step braking for all four wheels, which is firm and durable.
