Product Features
• High-strength steel tube frame with electrostatic powder coating; foldable frame design.
• Removable breathable mesh seat cushion and backrest, easy to clean and maintain.
• Flip-up armrests for easier side transfer and daily use.
• Detachable leg rests; adjustable and 180° swing-away design.
• Engineering plastic anti-slip footplates with calf strap.
• 10-inch PU solid front wheels and 16-inch pneumatic rear wheels.
• Intelligent slope-holding controller for stable operation.
• Electric wheelchair motor with electronic braking system.
• Equipped with anti-tip wheels for improved safety.

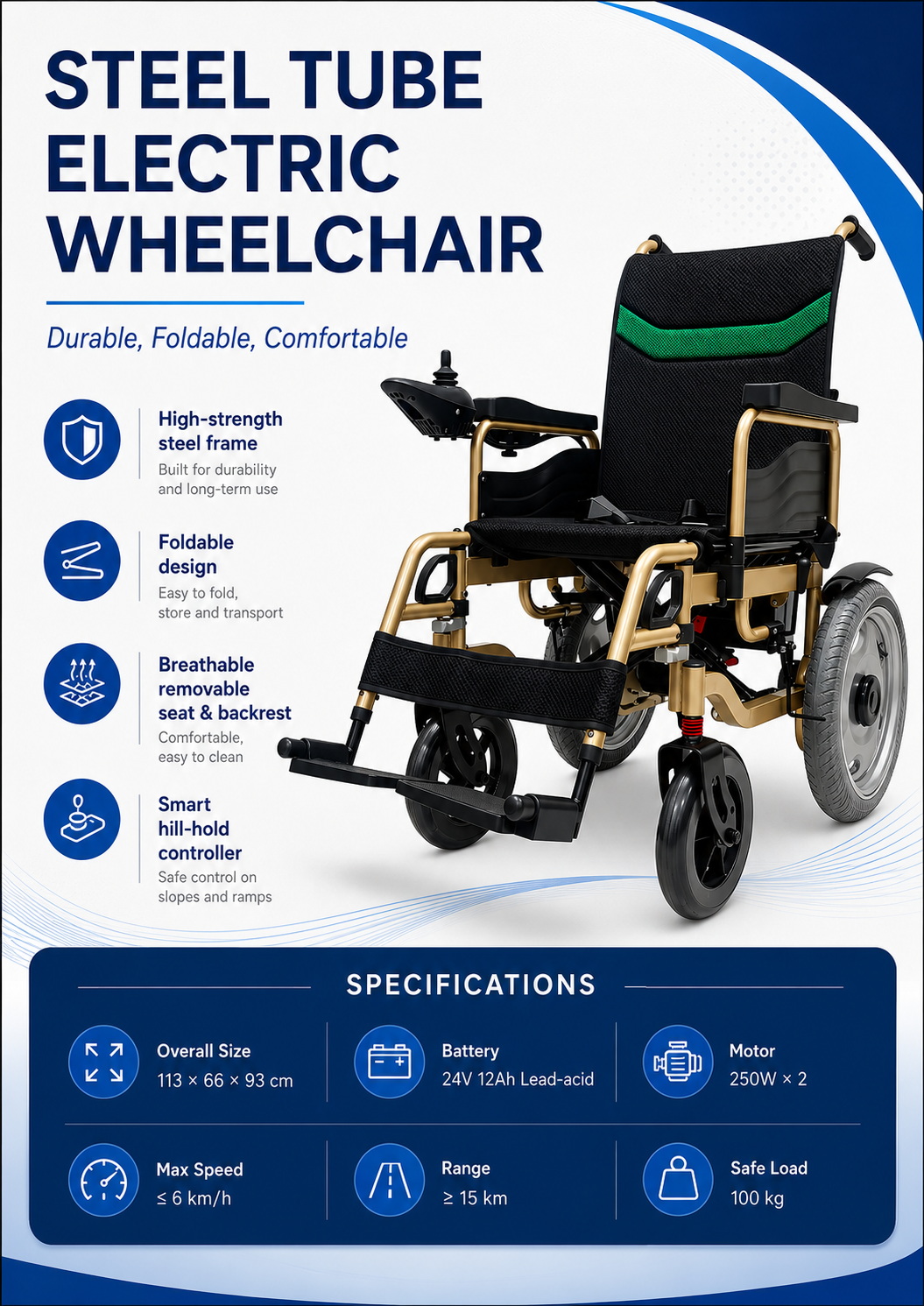

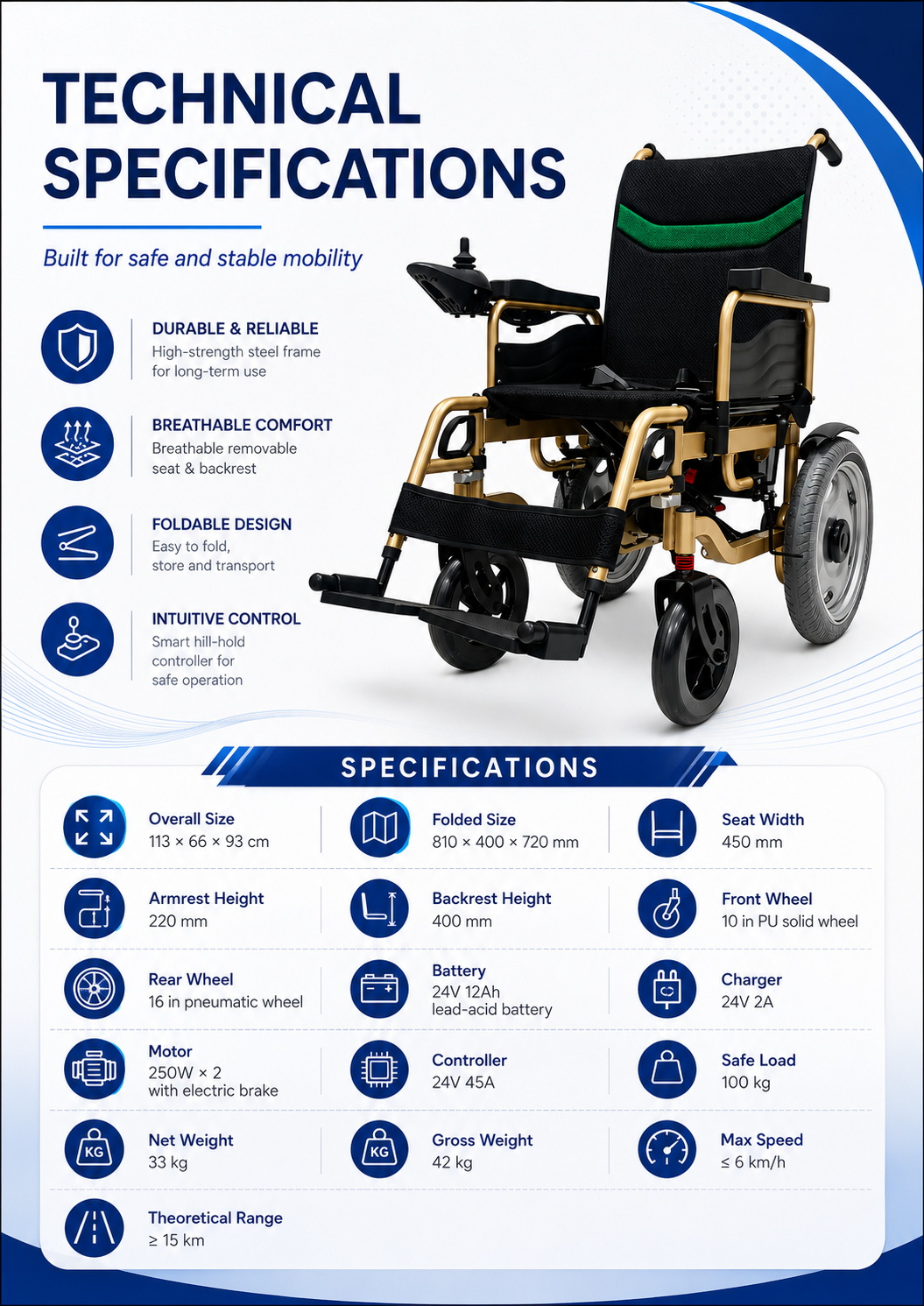

Technical Parameters
• Overall size: 113 × 66 × 93 cm.
• Front seat height: 500 mm.
• Backrest height: 400 mm.
• Width between armrests: 450 mm.
• Folded size: 810 × 400 × 720 mm.
• Battery: 24V 12Ah lead-acid battery.
• Charger: 24V, 2A.
• Rear wheels: 16-inch pneumatic wheels.
• Front wheels: 10-inch PU wheels.
• Frame material: steel.
• Seat width: 450 mm.
• Armrest height: 220 mm.
• Motor power: 250W × 2 pcs with electronic brake.
• Controller: 24V, 45A.
• Safe load capacity: 100 kg.
• Gross weight with battery: 42 kg.
• Net weight without battery: 33 kg.
• Maximum speed: ≤ 6 km/h.
• Braking distance on level ground: ≤ 1.5 m.
• Maximum safe slope braking distance: ≤ 3.6 m (6°).
• Slope-holding performance: 9°.
• Static stability: ≥ 9°.
• Dynamic stability: ≥ 6°.
• Obstacle climbing height: ≥ 40 mm.
• Ditch crossing width: 100 mm.
• Climbing ability: ≥ 6°.
• Minimum turning radius: 1200 mm.
• Theoretical driving range: ≥ 15 km.
