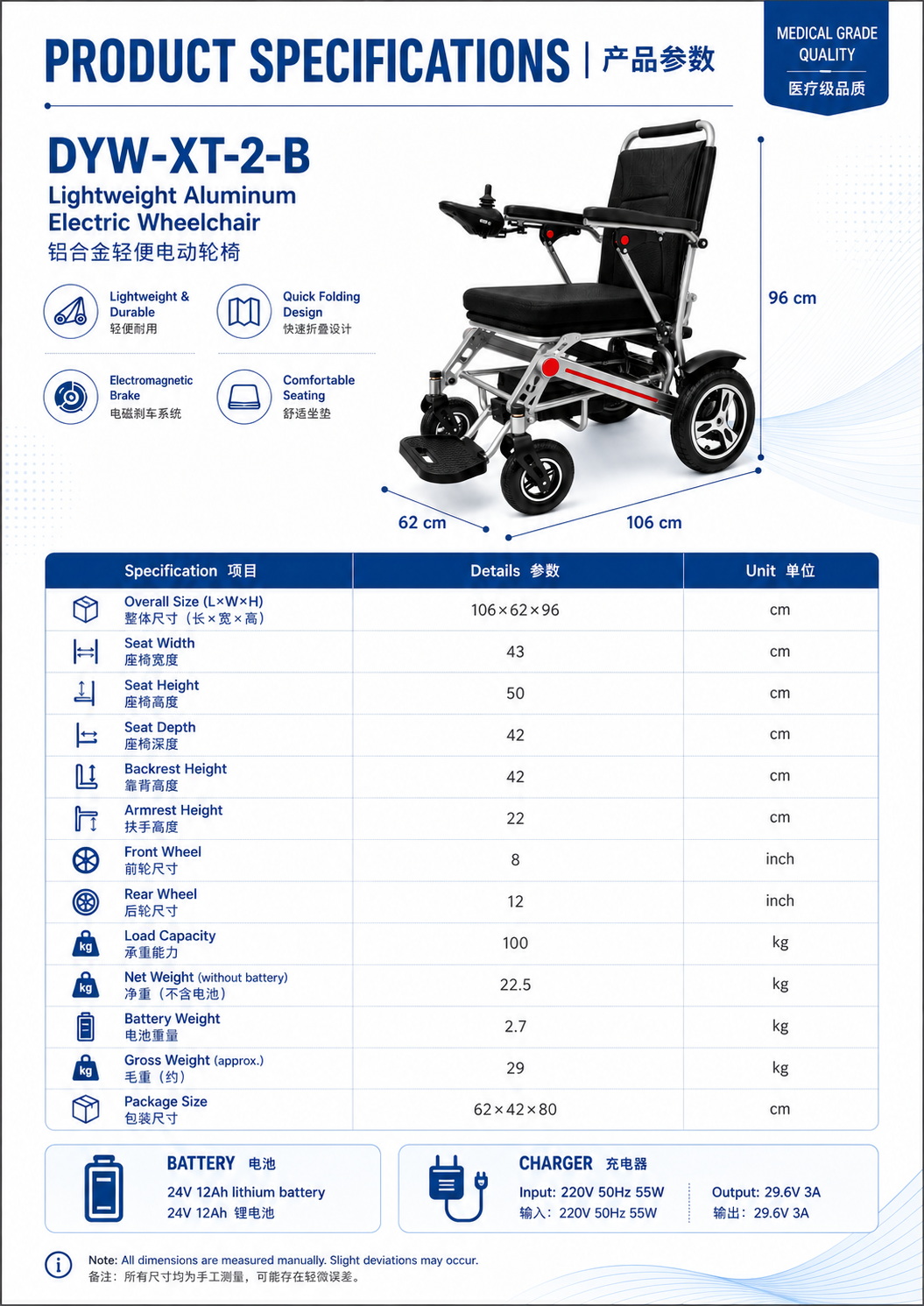

Product Information
• Model: DYW-XT-2-B

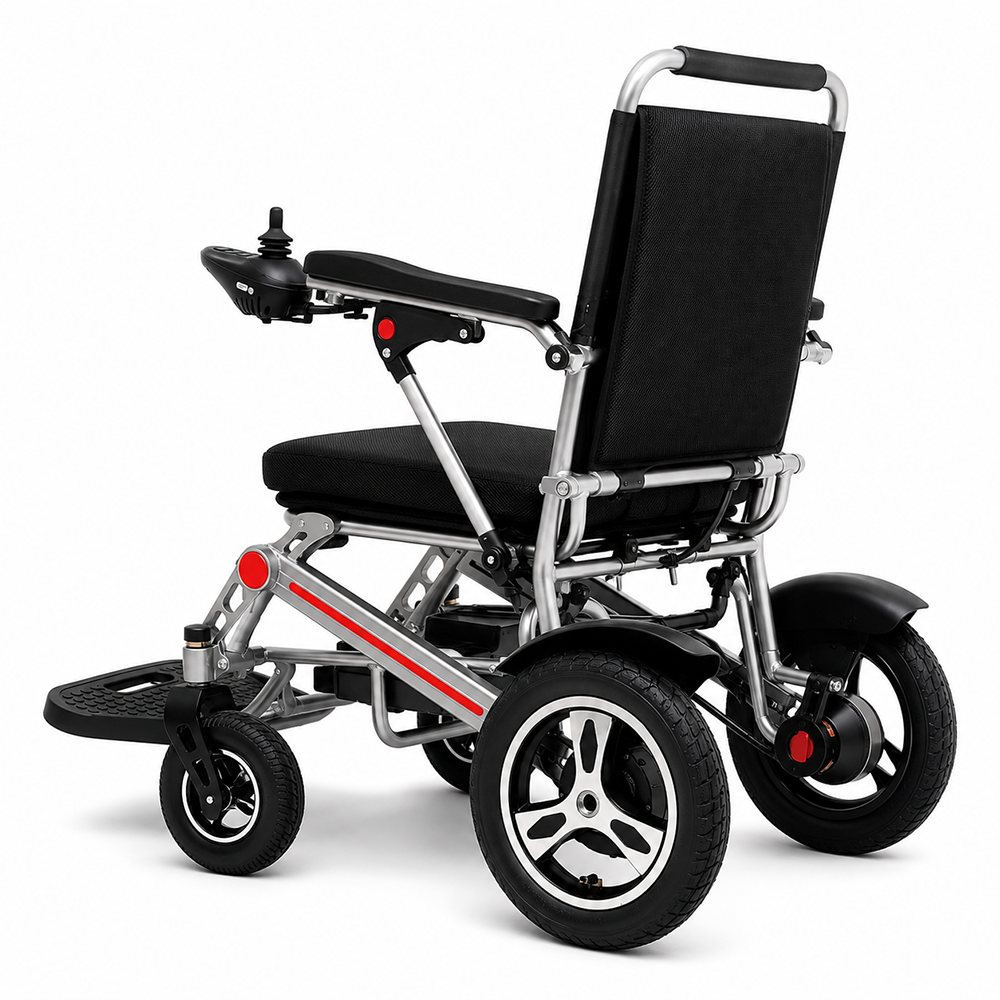

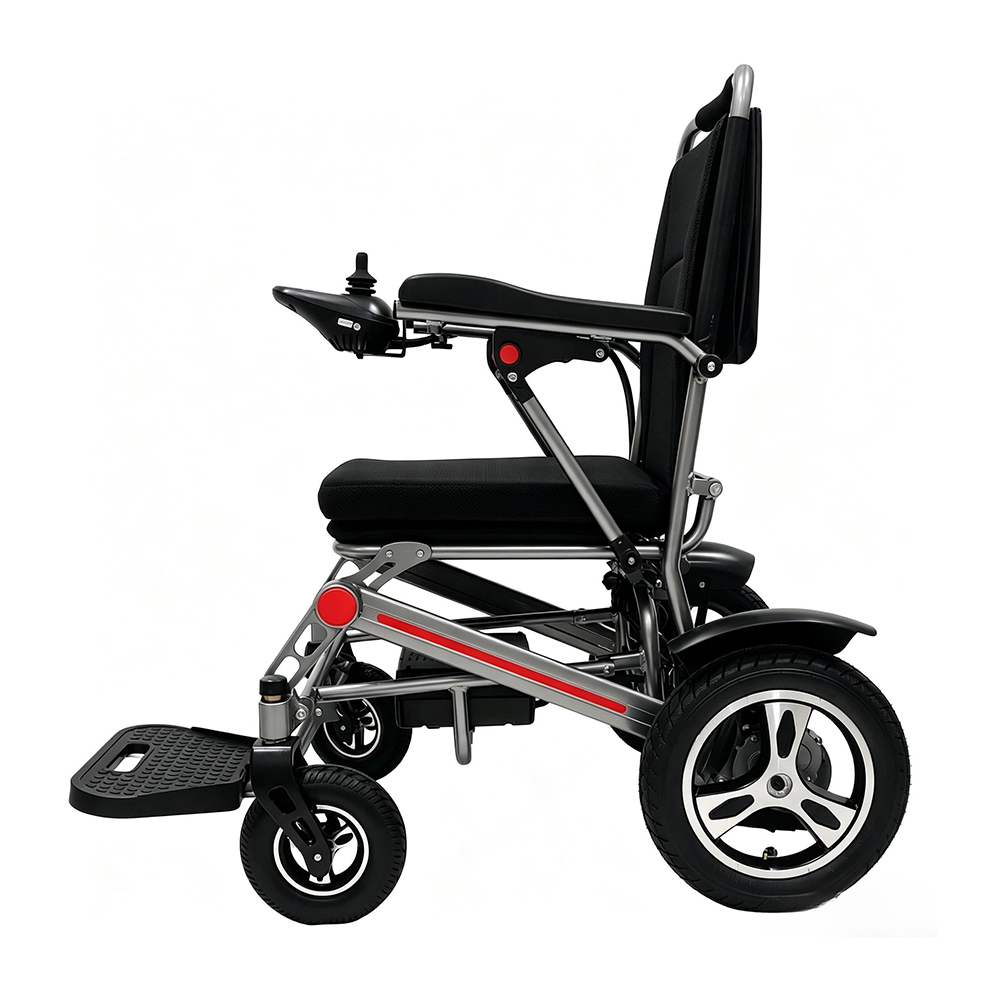

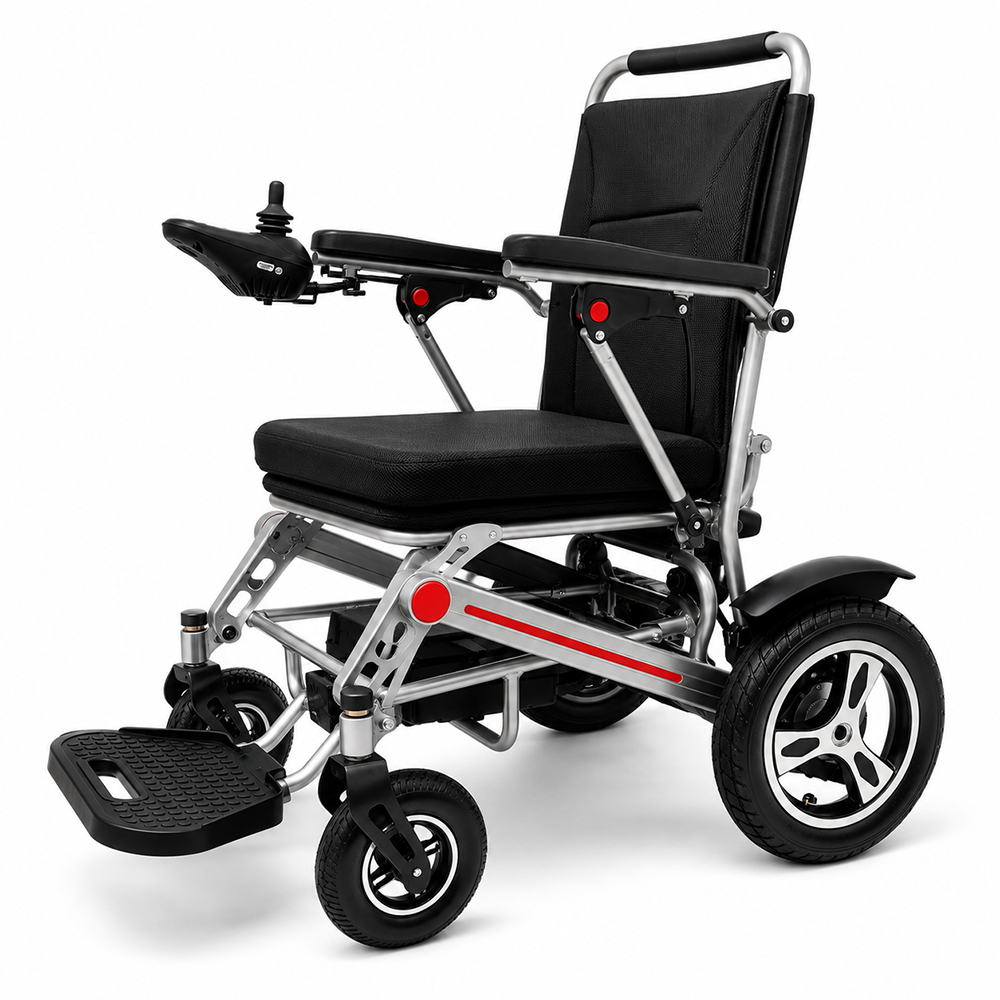

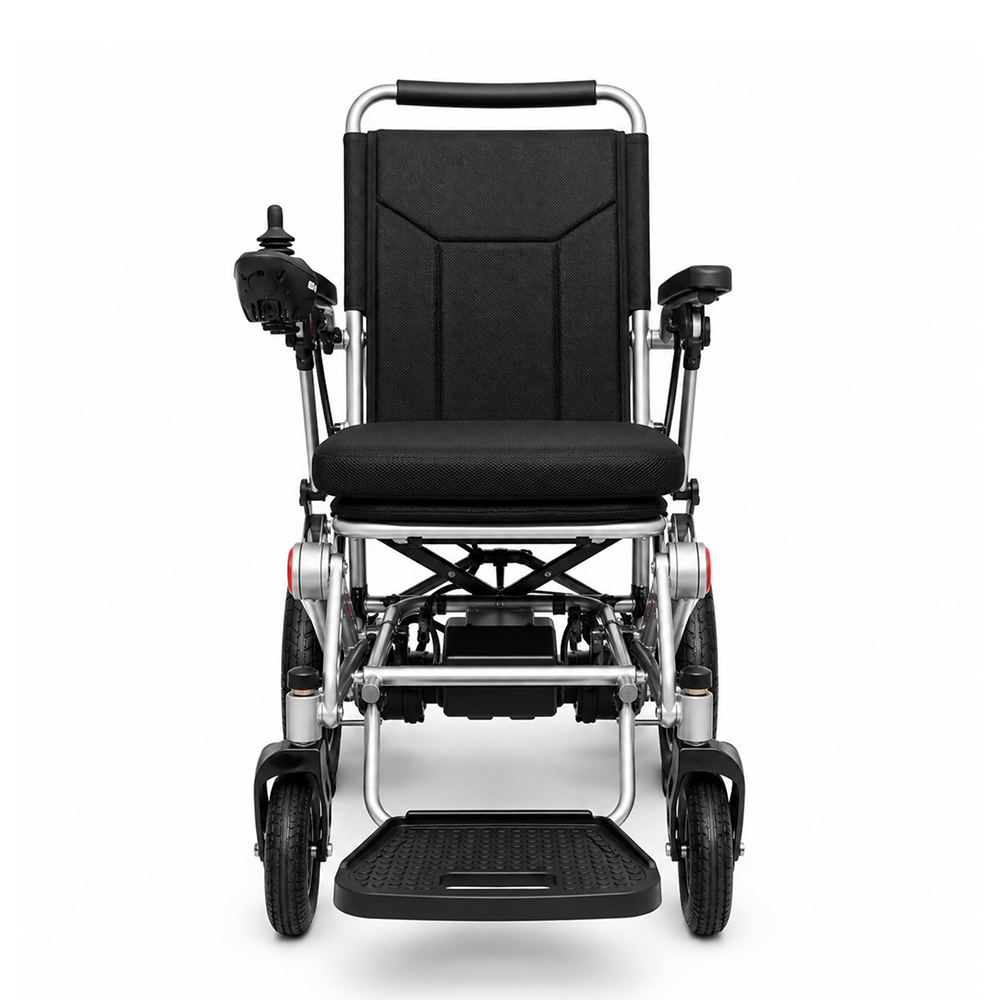

• Product Name: Lightweight Aluminum Alloy Electric Wheelchair
• Overall Size (L x W x H): 106 x 62 x 96 cm
• Seat Width: 43 cm; Seat Height: 50 cm; Seat Depth: 42 cm
• Backrest Height: 42 cm; Armrest Height: 22 cm
• Front Wheel: 8 inch; Rear Wheel: 12 inch
• Load Capacity: 100 kg
• Net Weight: 22.5 kg (excluding battery)
• Battery Weight: 2.7 kg
• Gross Weight: approx. 29 kg
• Packing Size: 62 x 42 x 80 cm

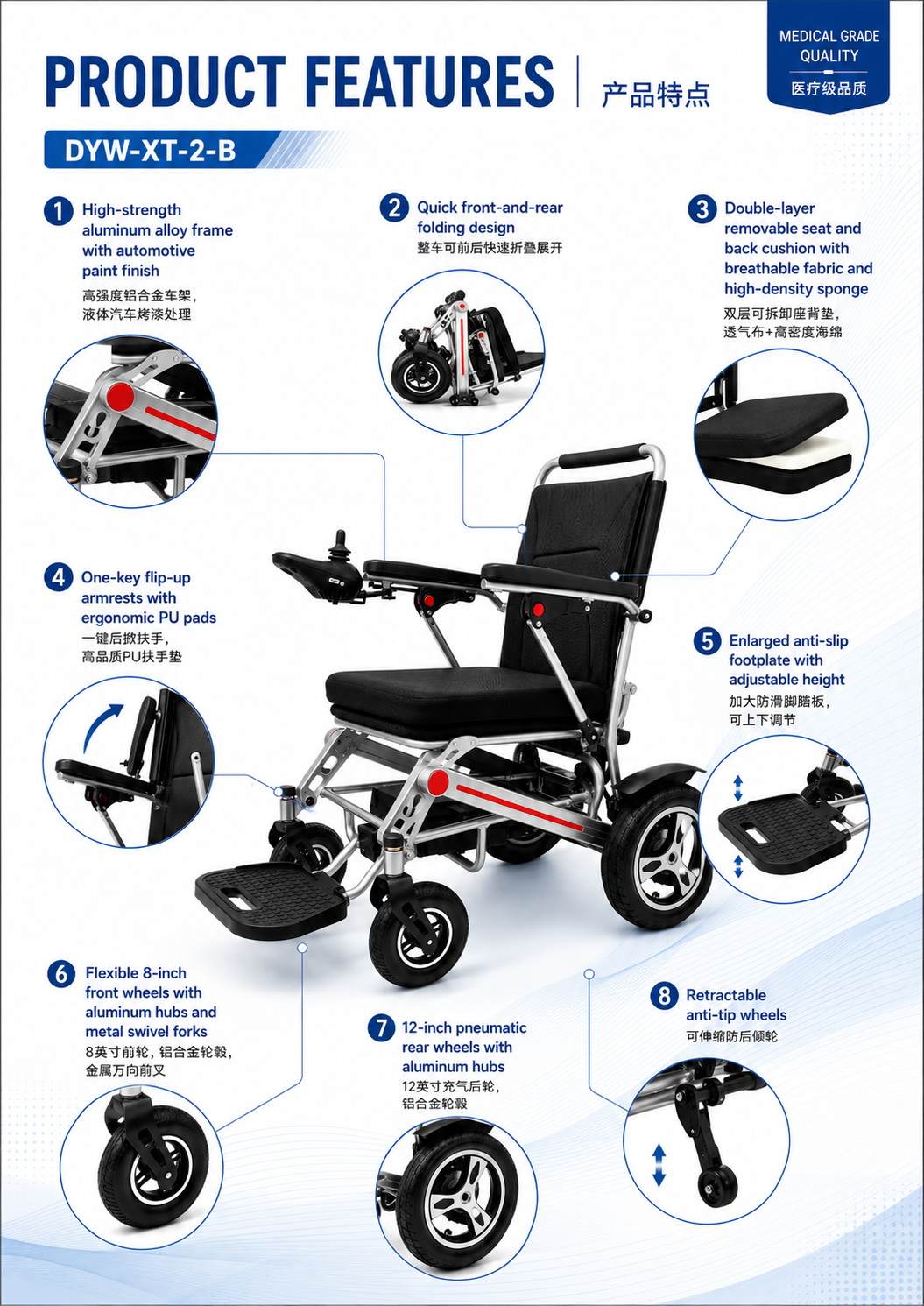

Configuration & Features
1. The frame is made of high-strength aluminum alloy with an automotive-grade liquid paint finish.

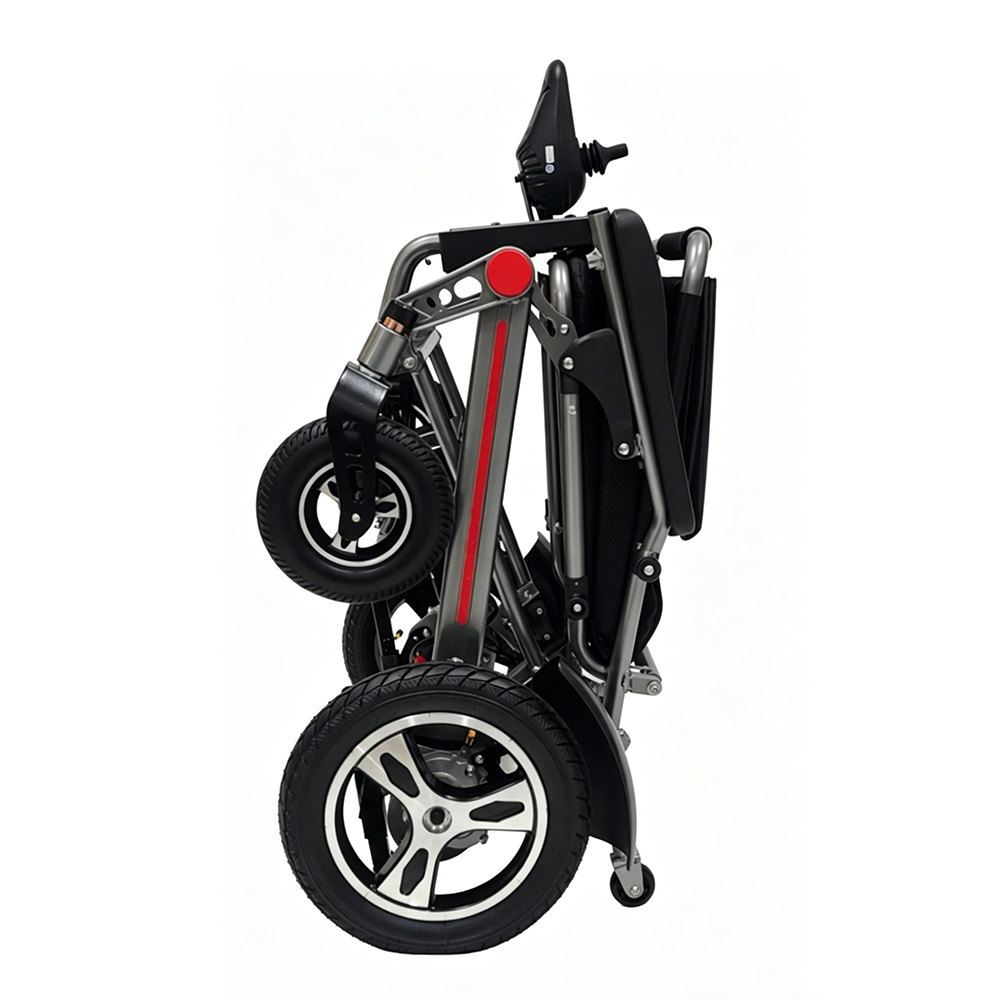

2. The wheelchair can be quickly folded and unfolded forward and backward for convenient transport and storage.
3. Double-layer seat and back cushions are quick-removable and easy to clean. The upper cushion uses breathable fabric with built-in high-density sponge.
4. One-button flip-up armrests with high-quality PU arm pads. The streamlined design fits the natural curve of the elbow.
5. Enlarged anti-slip footplates provide a wide support area for the feet and can be adjusted in height.
6. The front wheels use aluminum alloy hubs, 8-inch PU tires and metal swivel front forks for flexible steering.
7. The rear wheels use aluminum alloy hubs and 12-inch pneumatic tires for improved comfort.
8. Equipped with adjustable anti-tip wheels for enhanced safety.
9. Drive system: 250W motor, 140 r/min, with electromagnetic brake.
10. Controller: 24V/35A, responsive operation, maximum speed up to 6 km/h.
11. Power supply: 12AH lithium battery, driving range not less than 12 km.
12. Charger: 24V 12AH; input voltage 220V 50Hz 55W; output power 29.6V 3A.
