B-08-01

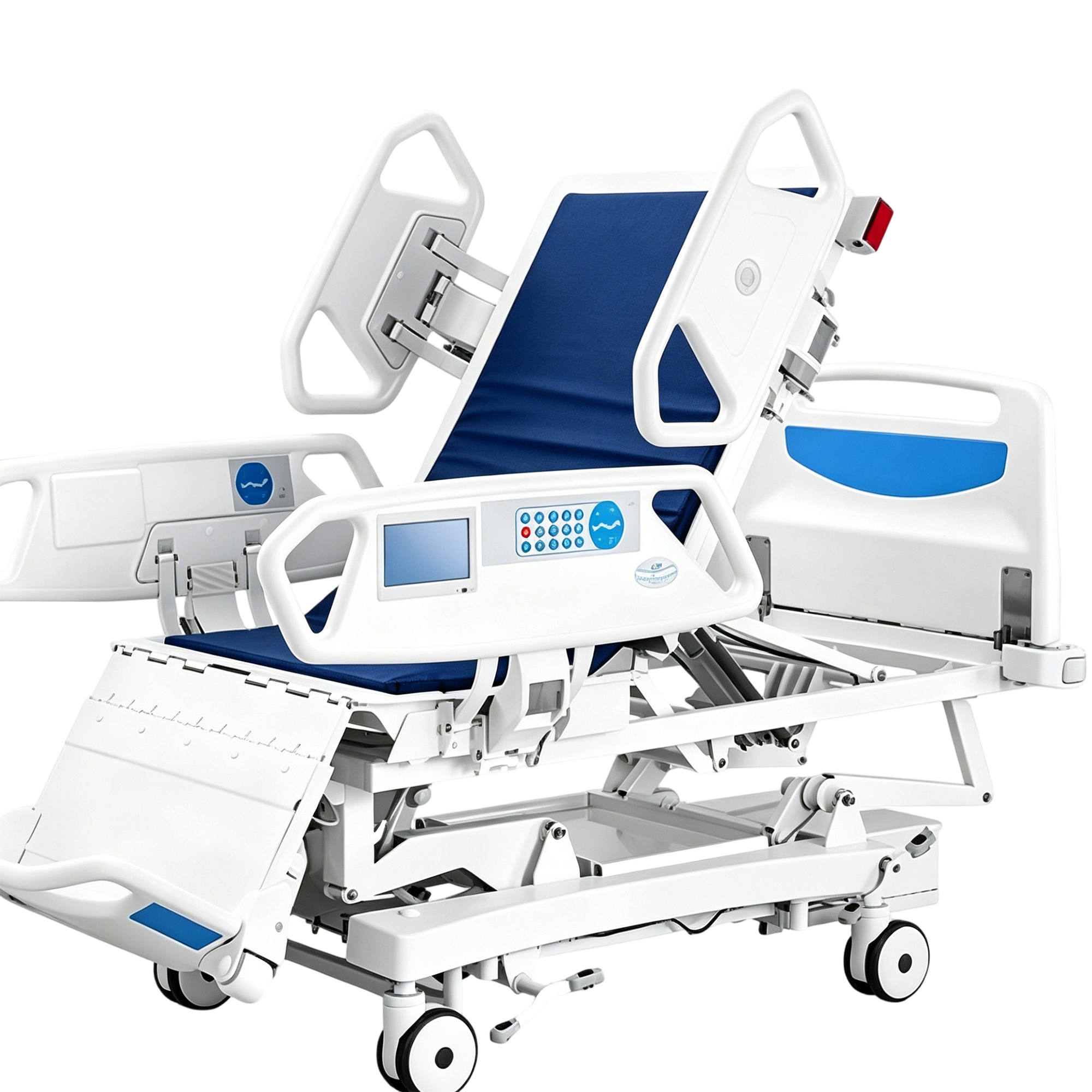

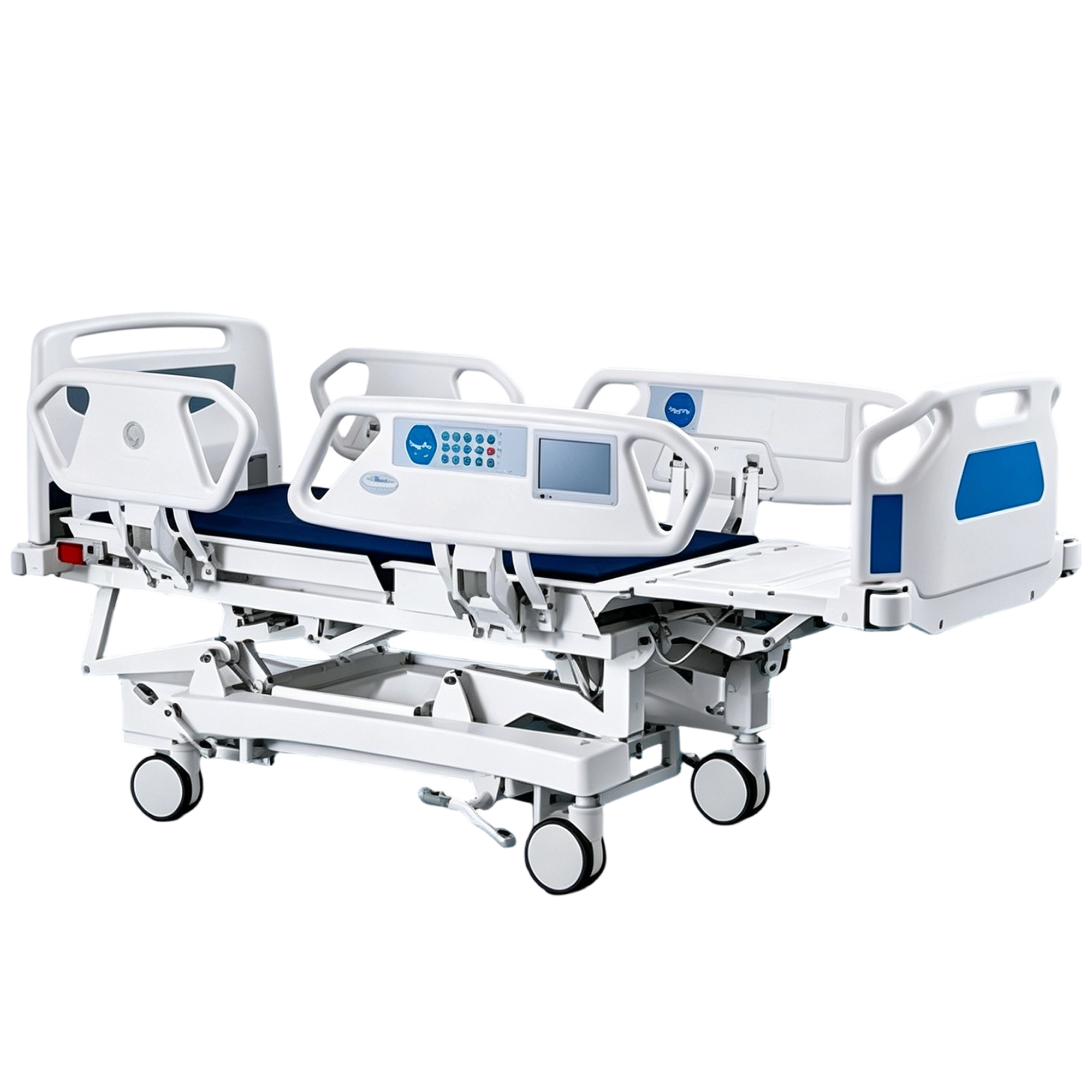

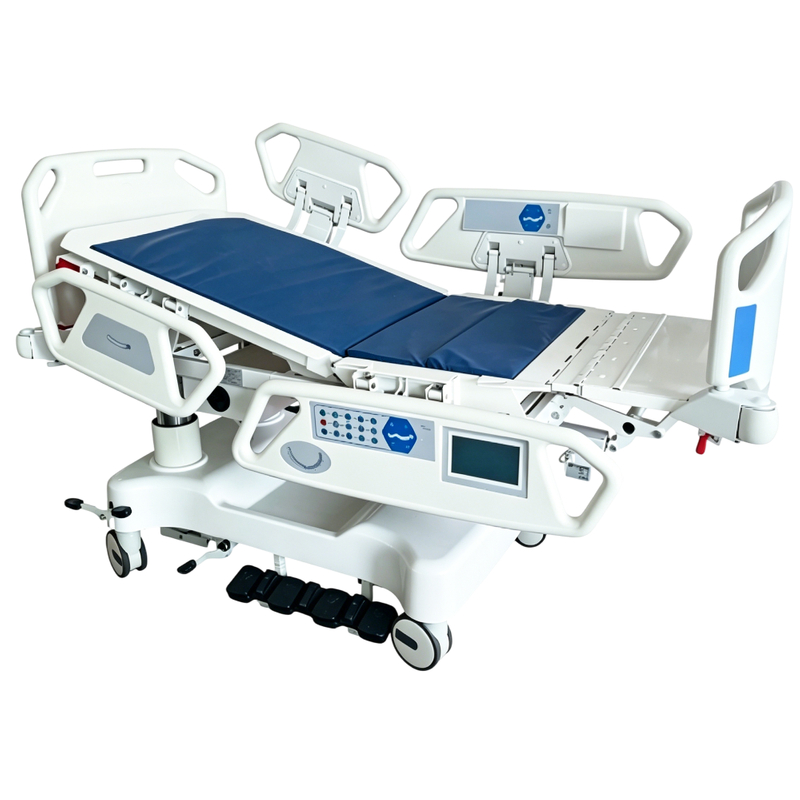

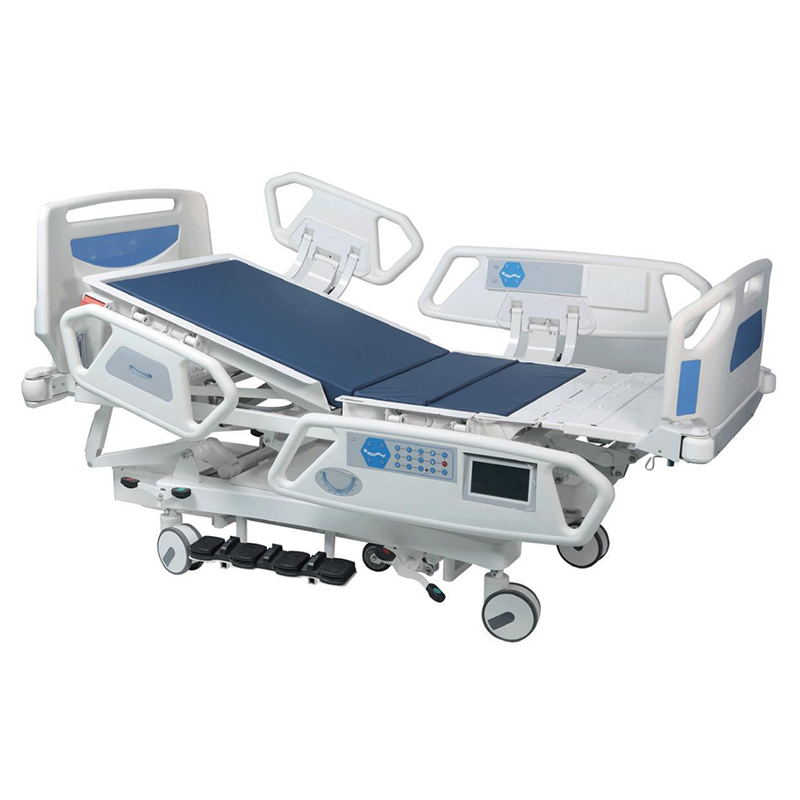

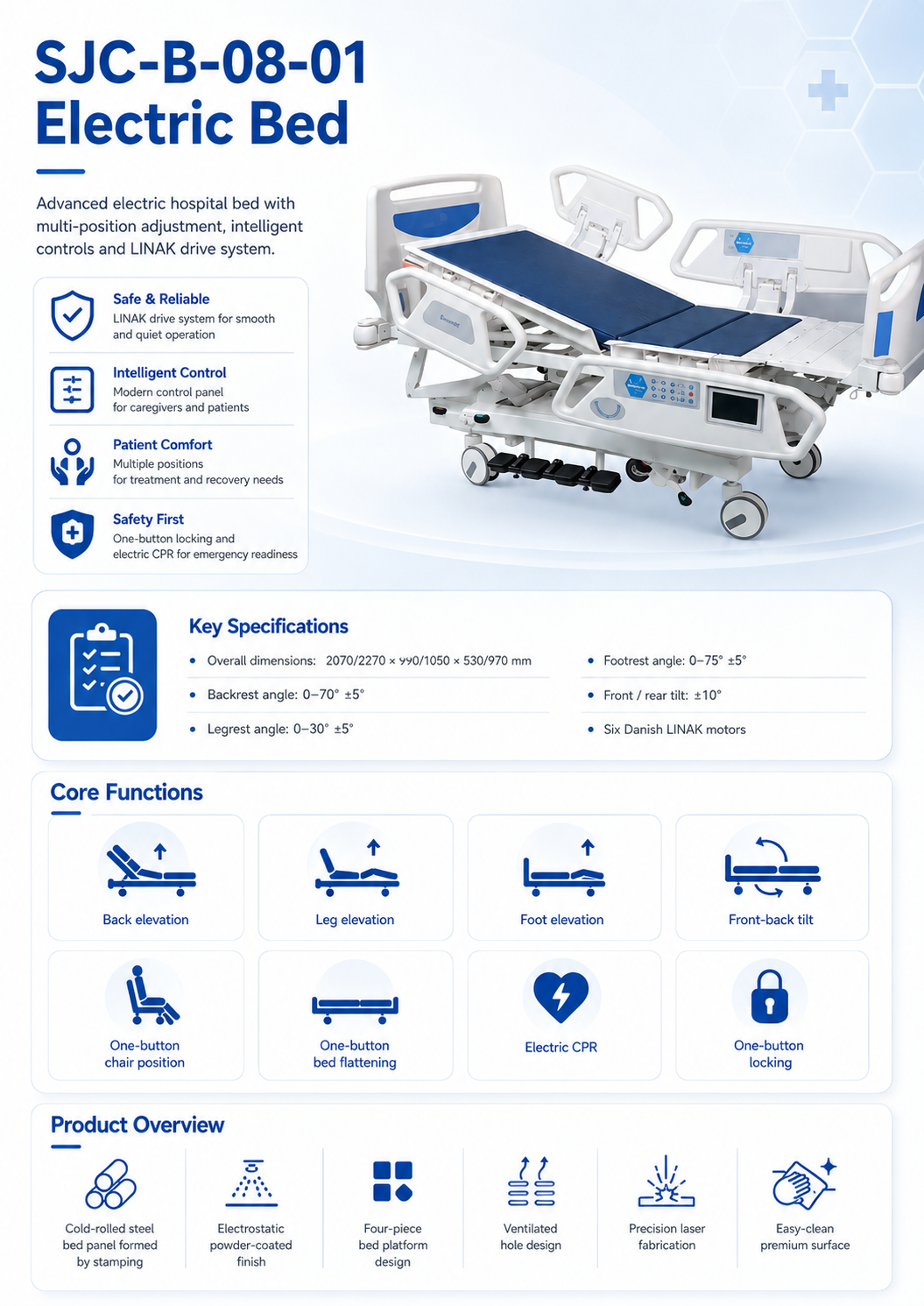

1.SJC-B-08-01 Electric Bed Technical Specifications
Specifications: 2070/2270 990/1050 530/970 mm.
2.The function of adjusting the body position includes at least 0 - 70 ± 5° for the back elevation, 0 - 30 ± 5° for the leg elevation, 0 - 75 ± 5° for the foot elevation, ± 10° for the front-back tilt, one-button chair position, one-button bed surface flattening, with electric CPR function; one-button locking function.

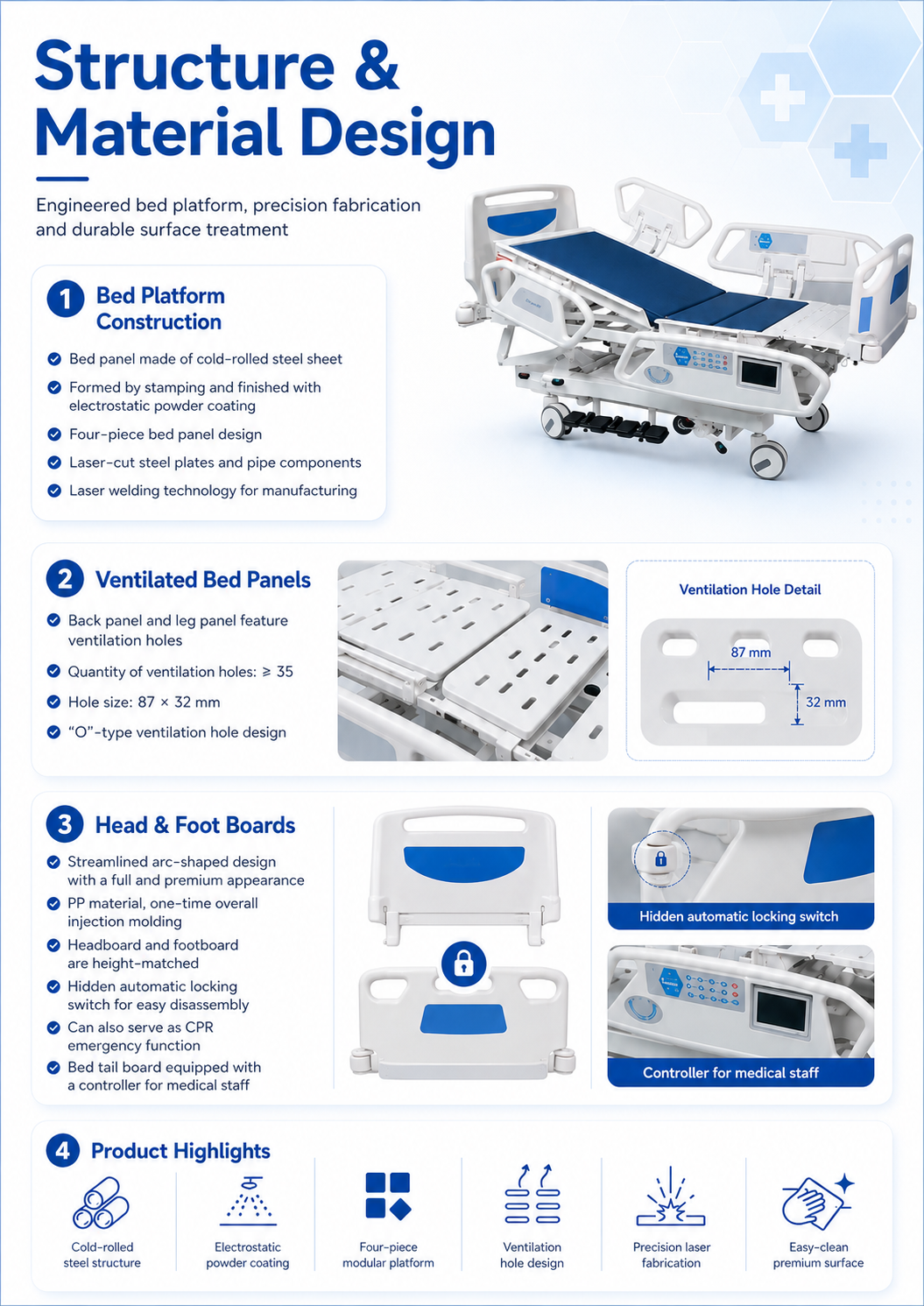

3.The bed panel is made of cold-rolled steel sheet and is formed by stamping, and is electrostatic powder coated.
4.The four-piece bed panel, the back panel and the leg bed panel all have ventilation holes, with a quantity of ≥ 35, and the hole diameter is 87 * 32 mm "O" type design.

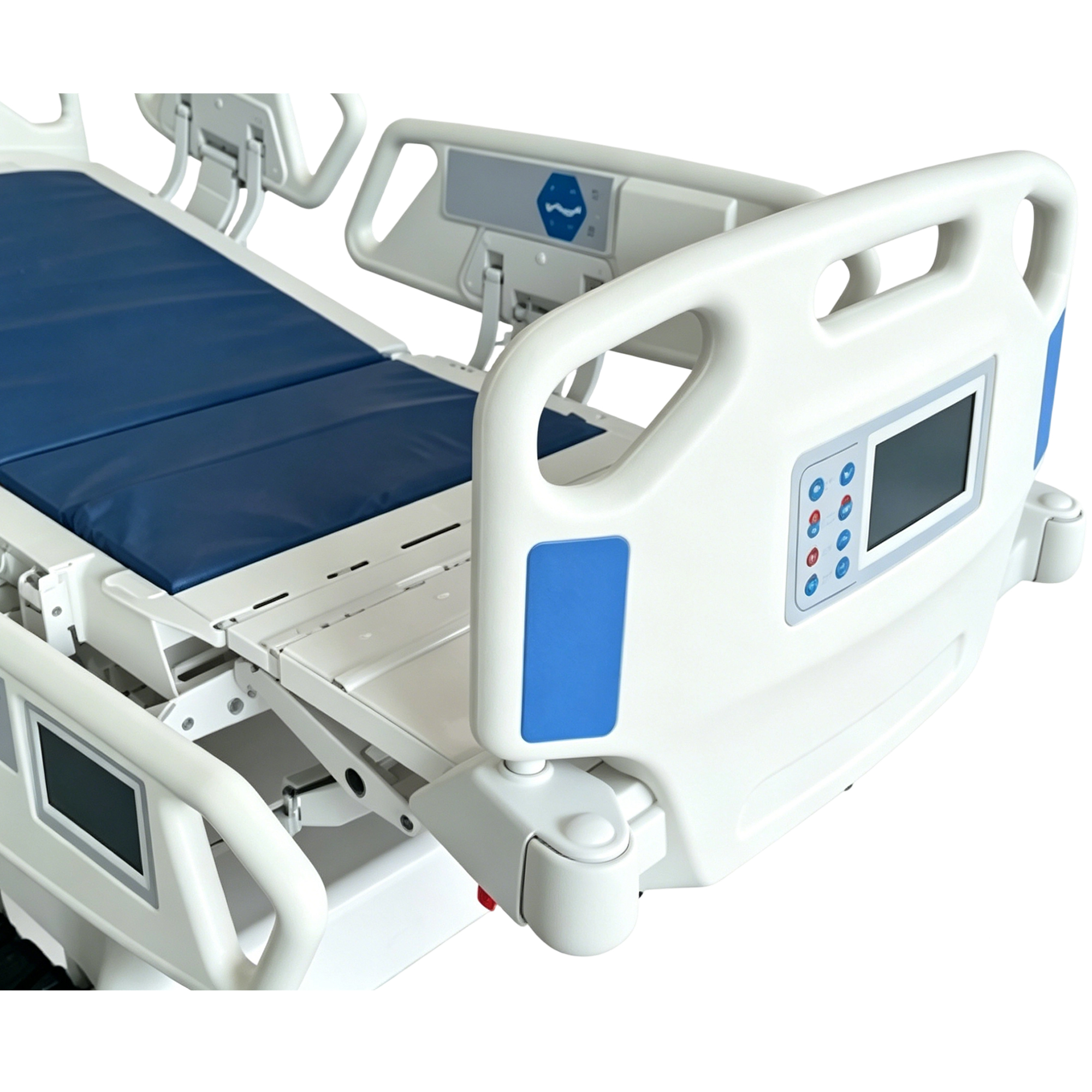

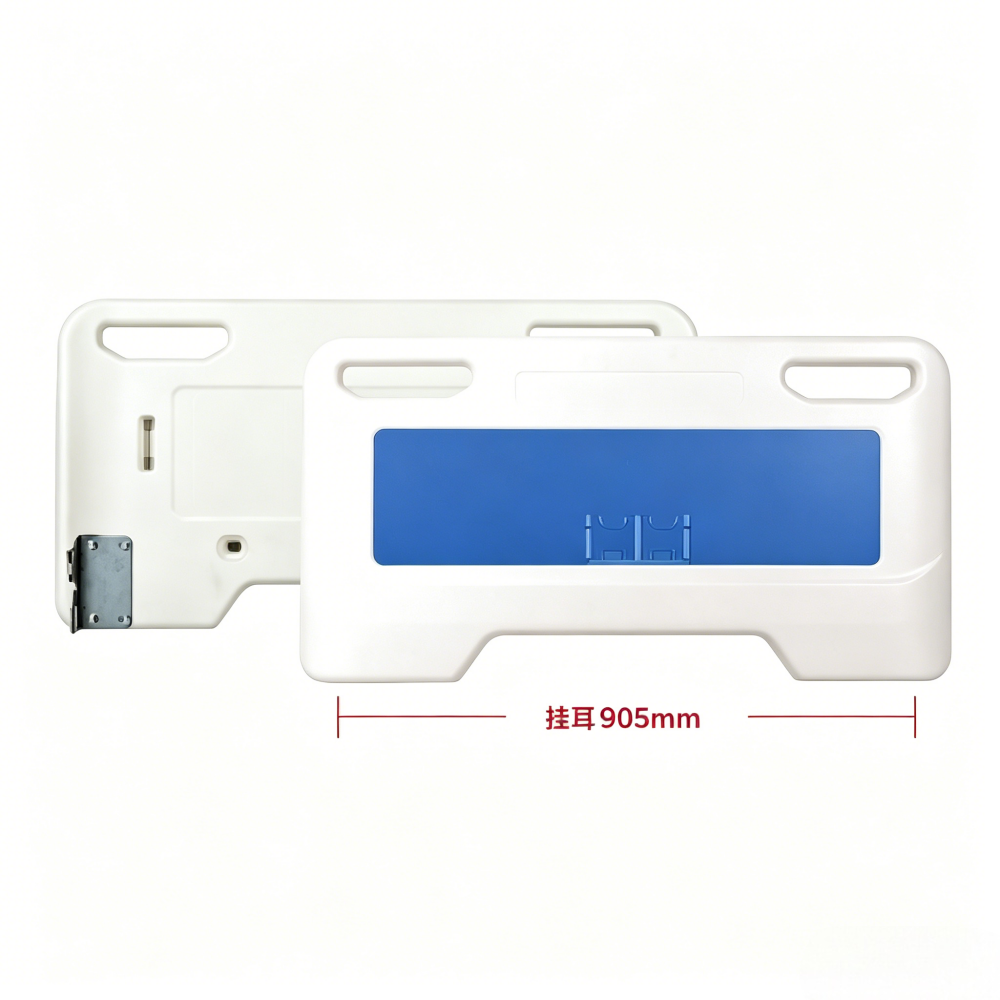

5.The streamlined arc-shaped design has a full and grand appearance, made of PP material, and is produced by one-time overall injection molding. The head and tail boards of the bed are matched in height, with an automatic locking switch hidden inside, which is convenient for disassembly and can also serve as CPR emergency function. The bed tail board is equipped with a controller, which is convenient for medical staff to operate.

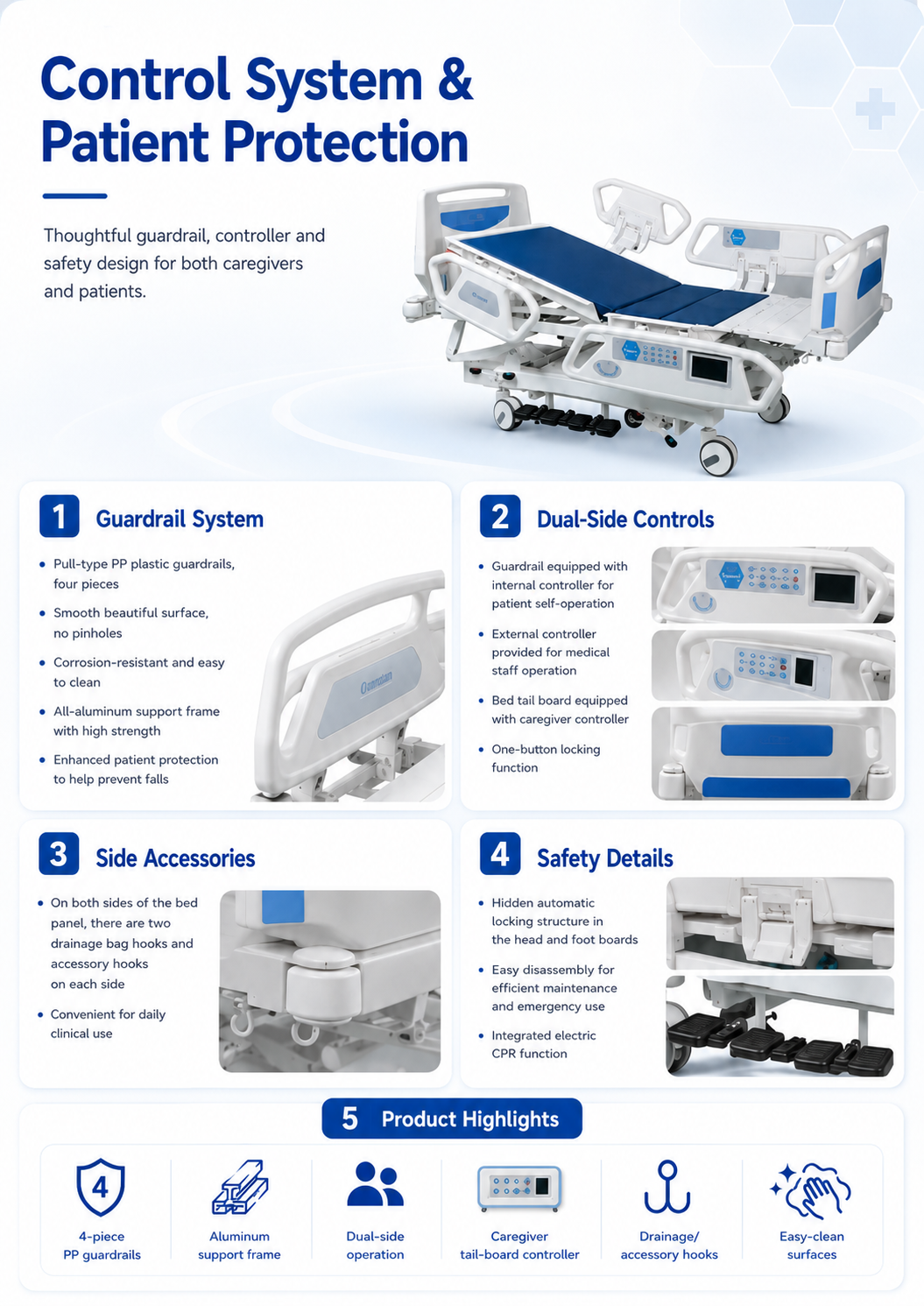

6.Guardrail: Pull-type PP plastic guardrail, four pieces, with a beautiful surface shape without pinholes, corrosion-resistant, and easy to clean. The support frame is made of all-aluminum frame, with high strength, providing enhanced protection for patients and preventing them from falling. The guardrail is equipped with a controller inside, which is convenient for patients to operate themselves, and an external controller is also equipped for the convenience of medical staff to control.
7.On both sides of the bed panel, there are two drainage bags and accessory hooks each.

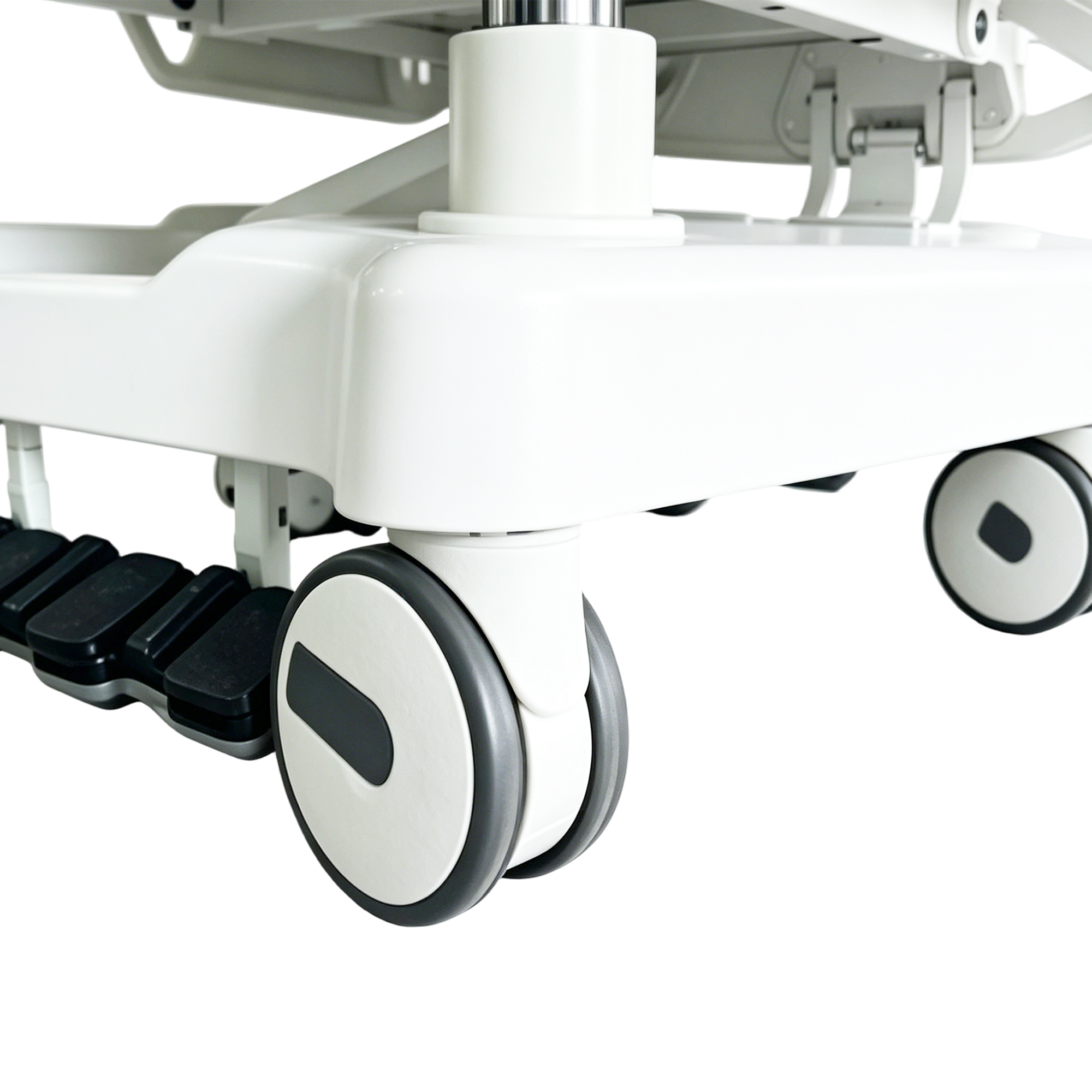

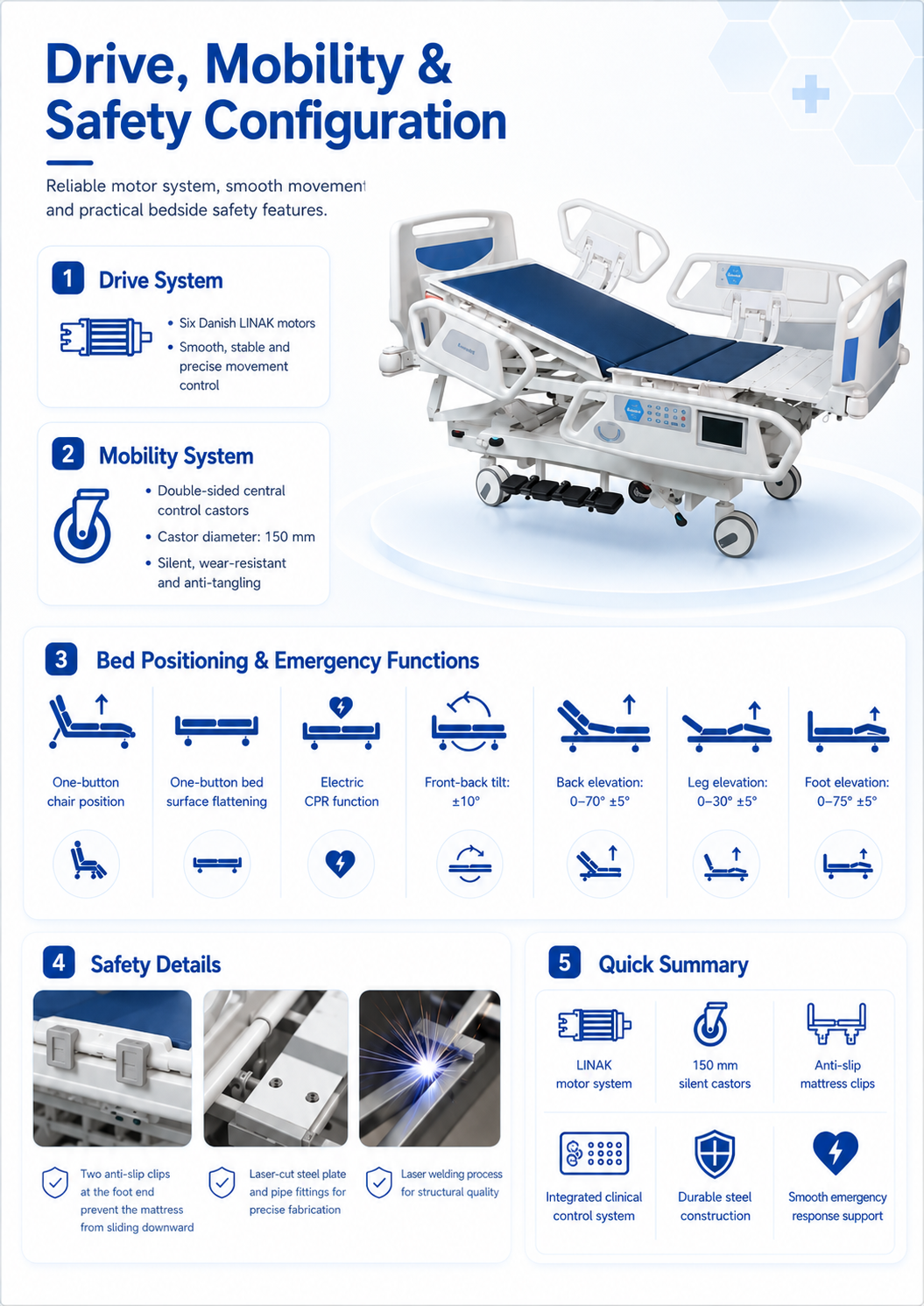

8.Double-sided central control wheels with a diameter of 150 mm, silent, wear-resistant, and anti-tangling.
9.The bed steel plate and pipe fittings are laser-cut and manufactured by laser welding technology.
10.The bed panel is equipped with two anti-slip clips, located at the foot end of the bed, which can prevent the mattress from moving downward.
11.Six Danish LINAK motors are equipped to control the movement of the bed.
