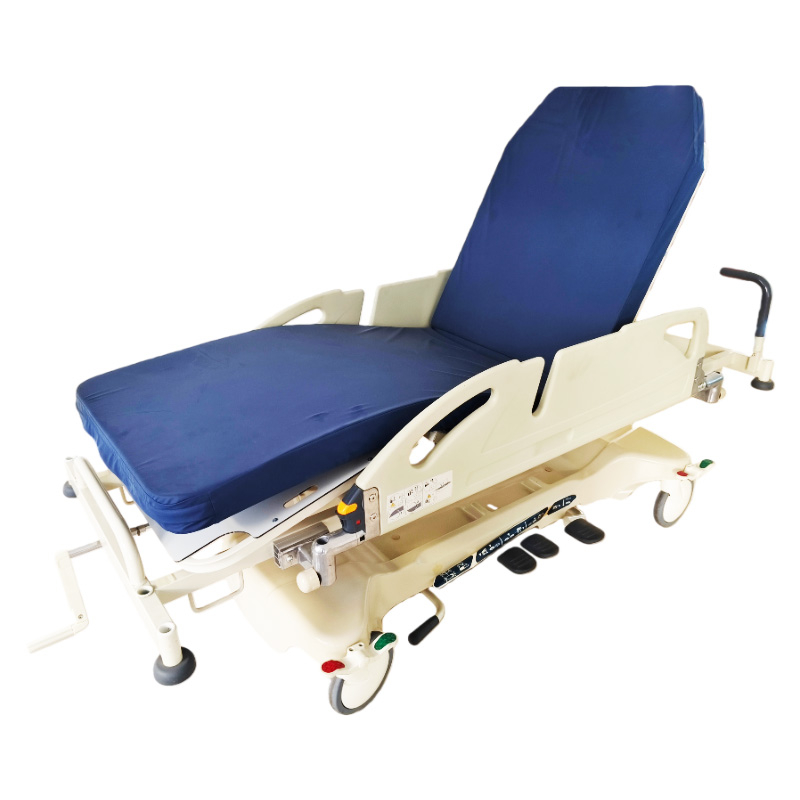

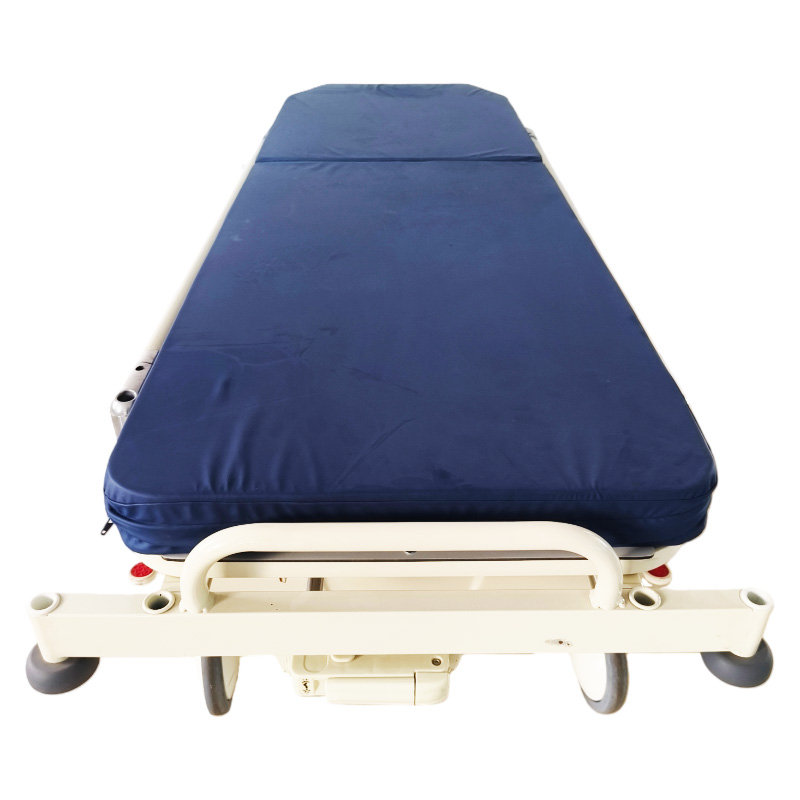

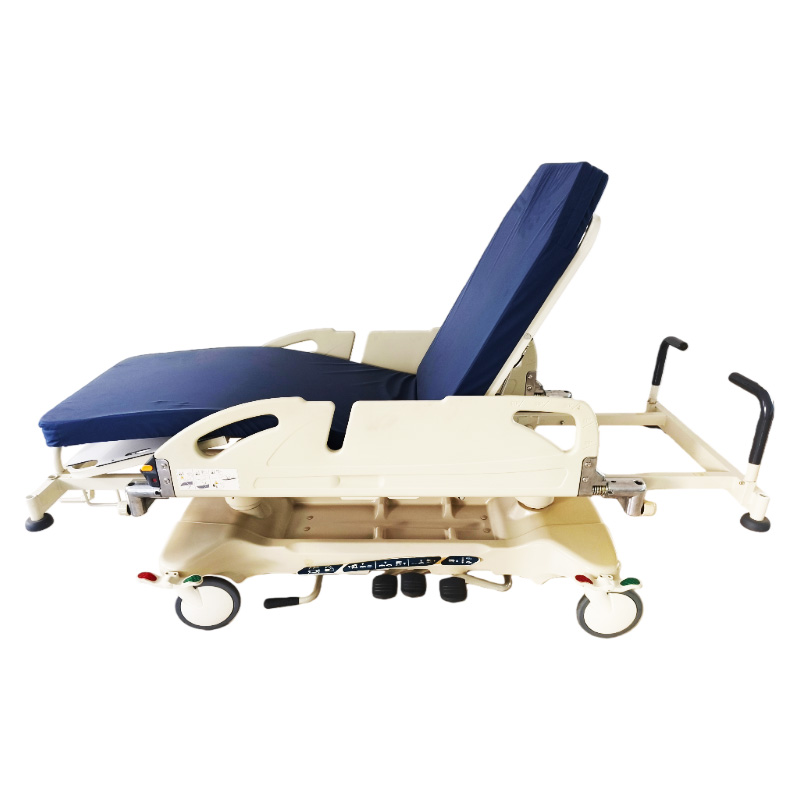

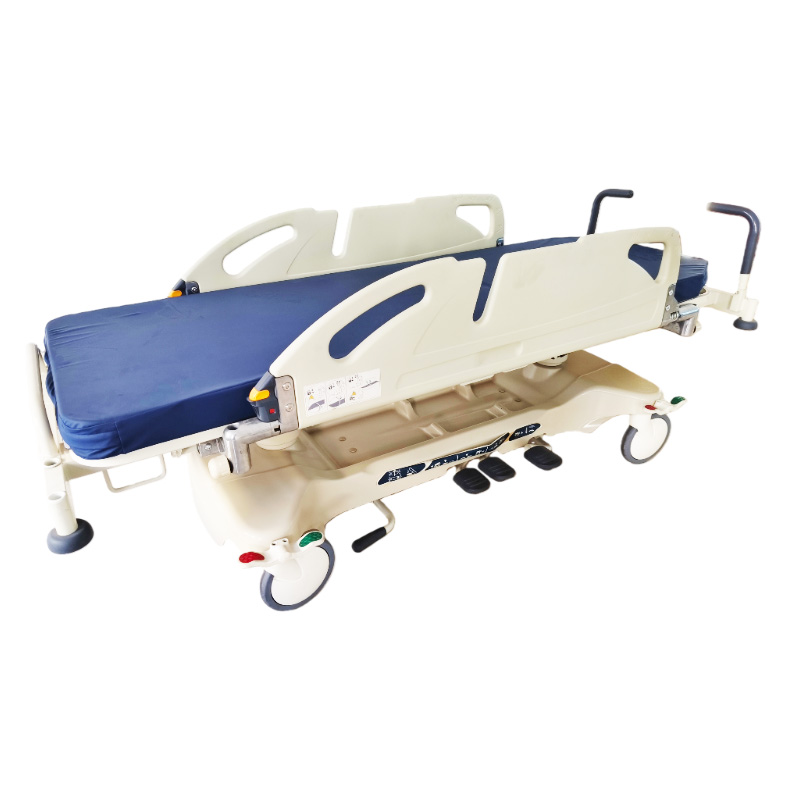

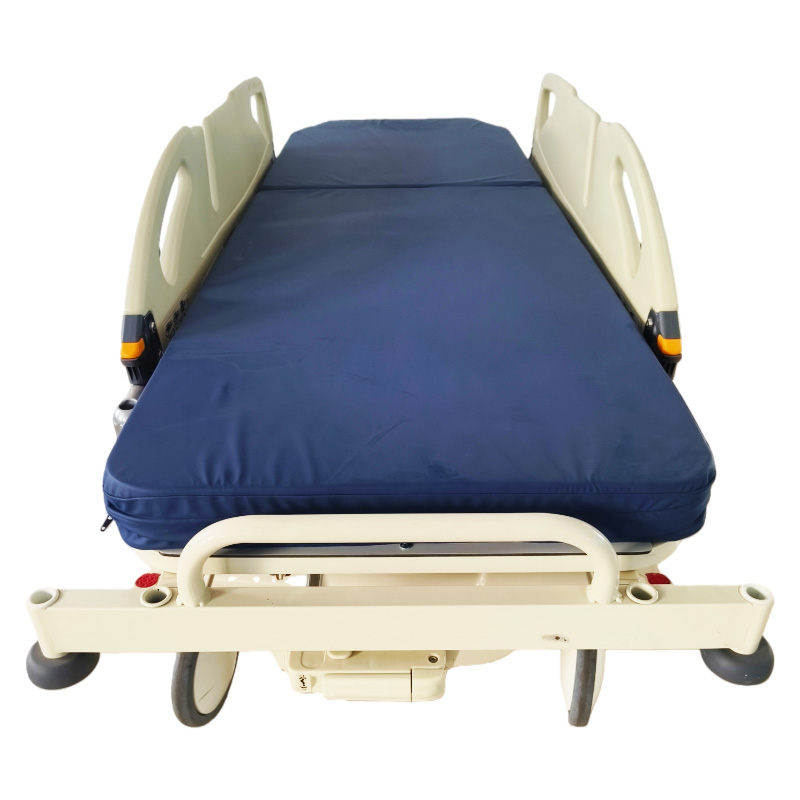

KJ-800A
1. Adopt electrostatic painting + powder coating, with certain antibacterial properties
2. Specifications: Total length ≥ 2150mm, total width ≤ 830mm
The bed board length is ≥1880mm, the width is ≥620mm, the minimum height is ≤560mm, and the maximum height is ≥890mm,
Back adjustment ≥85°, knee adjustment ≥40°, tilt adjustment -18° to 18°.
3. Safe working load: 220KG
4. Frame: Fabricated by bending and welding high-quality steel pipes.
5. Guardrail Panels: PP resin-molded bilateral guardrail panels
6. It can be horizontally fixed to increase the bed width, and both the front and rear are locked in the horizontal position, with a load capacity of ≥15kg
7. The die-cast aluminum base features an integrated hook design, capable of hanging urine bags, small instruments, etc., with a single hook load capacity of ≥30kg.

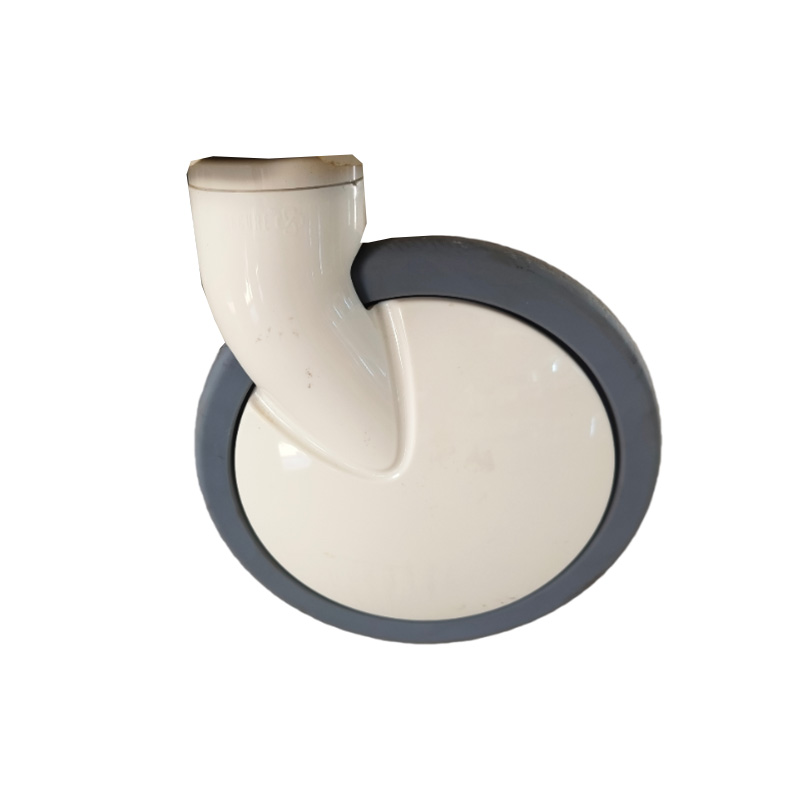

8. Casters: Equipped with four 200mm diameter casters featuring a central locking mechanism, the trolley has a caster control system at each of its four corners, allowing
Foot brake, all four wheels fixed simultaneously.
9. Independent Center Fifth Wheel System: Control pedals are installed on both sides of the trolley, and the center fifth wheel retracts when
```That is, free movement; when in use, it means the "straight" state```
10. There is an integrated tray beneath the bed frame, designed to hold oxygen cylinders for convenient use, with a load-bearing capacity of 10 kg.
11. Both sides of the bed body's lower section are equipped with IV pole storage racks, allowing for secure storage of IV poles.
12. Mattress: Features a waterproof-treated fabric surface with a 7cm thick foam layer for comfortable lying
13. The bed body is equipped with anti-collision wheels with a diameter of ≥100mm around its perimeter
14. Push handles: An L-shaped push handle is installed at the head of the bed, and a U-shaped handle is provided at the foot
Configuration List
1. Bed body 1 unit;
2. One-piece guardrail (2 pieces);
3. 4 caster wheels for central control;
4. Central control locking pedals, 4 sets;
5. Central Fifth Round 1 Set;
6. 2 high-quality hydraulic cylinders;
7. 2 back-raising air pressure springs;
8. Knee crank handle 1 piece
8. One integral bottom tray;
9. 1 IV stand;
10. Standard IV stand with 4 outlets;
11. 1 waterproof mattress;
12. Recording Console (Optional) 1 Unit
