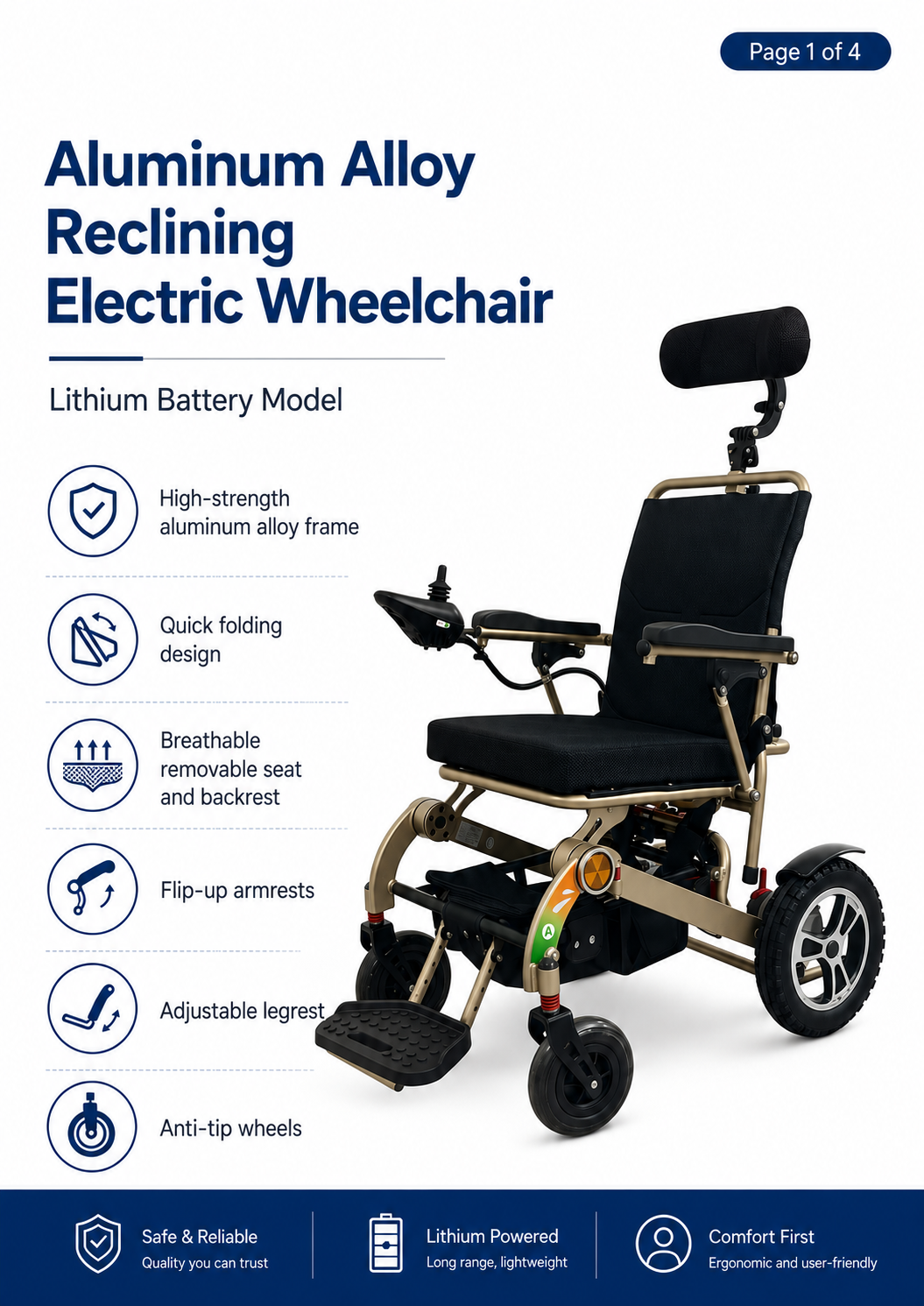

Foldable Aluminum Frame · Dual Motors · Lithium Battery

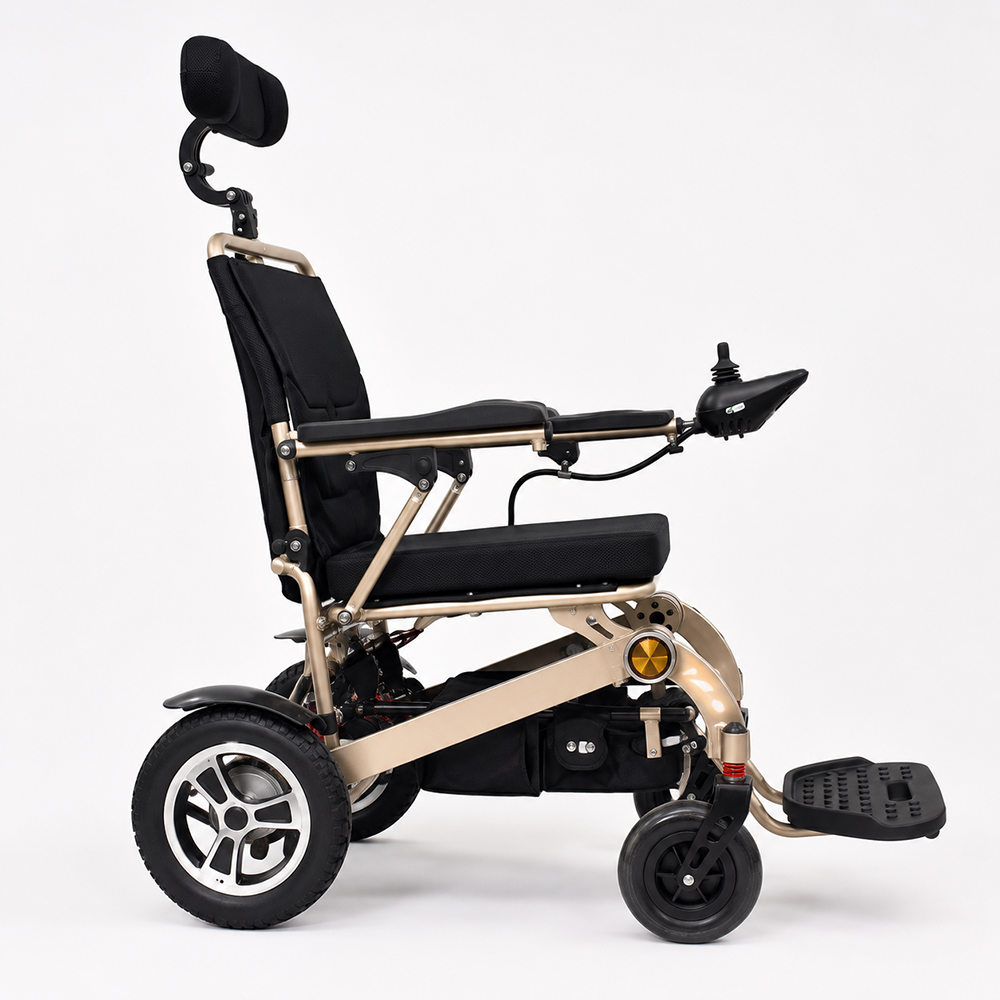

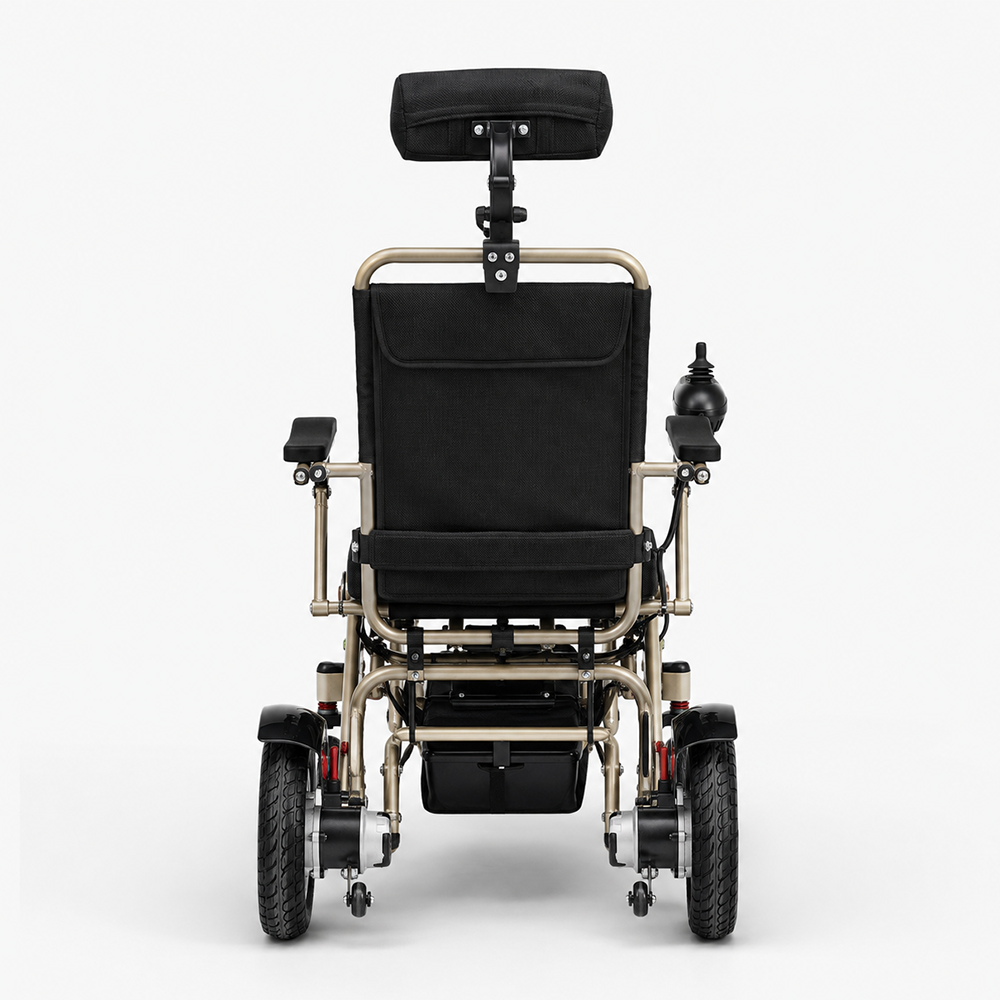

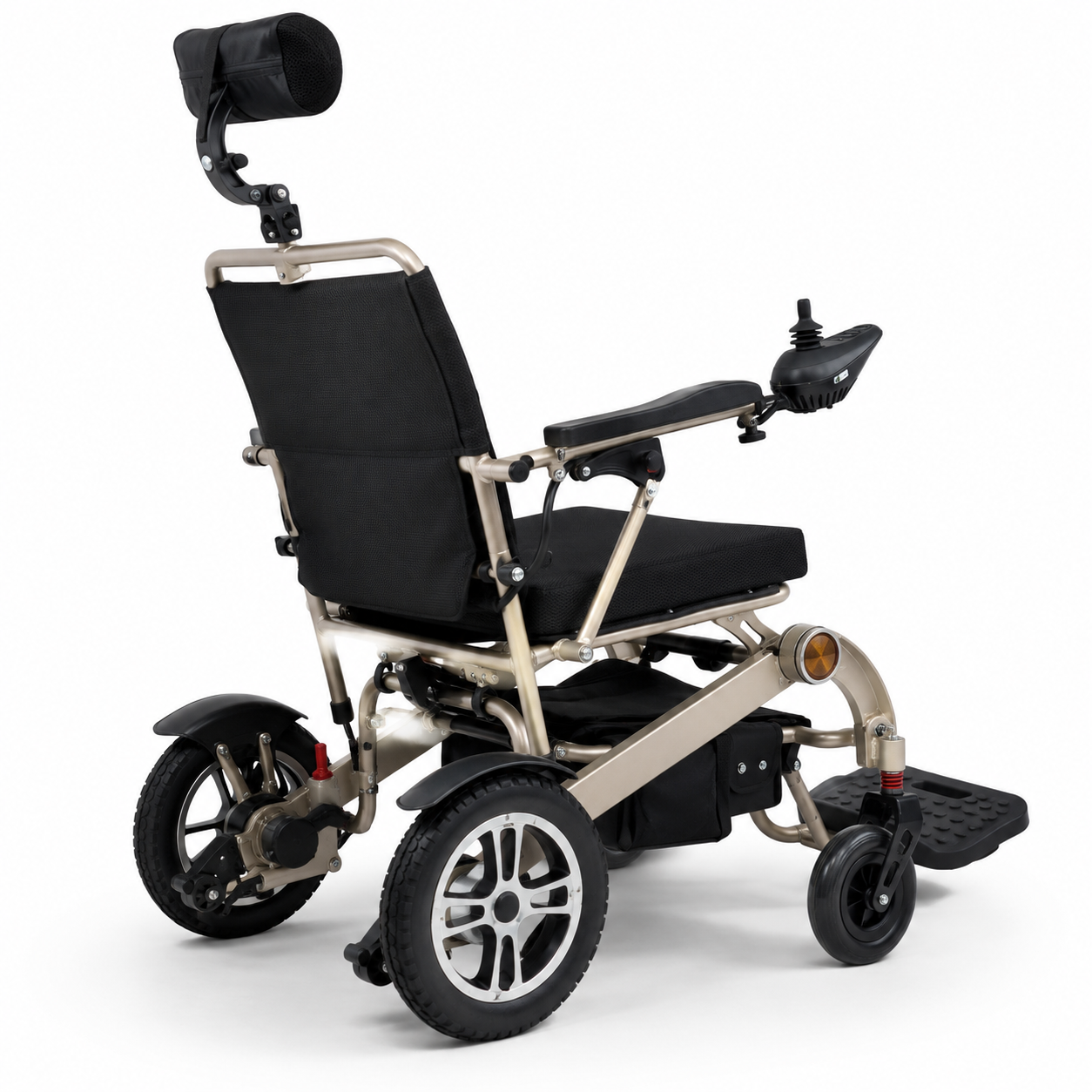

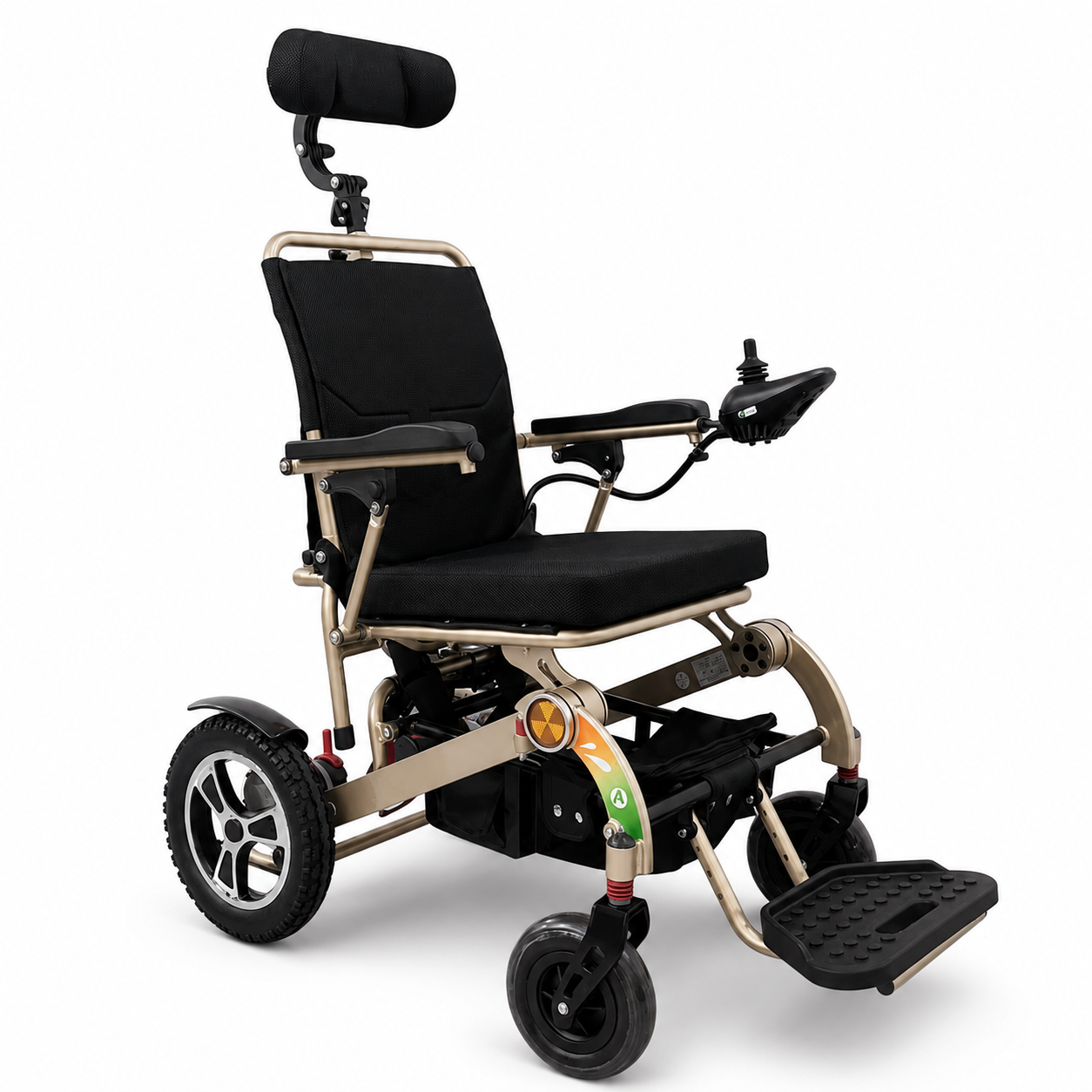

This reclining electric wheelchair combines a lightweight aluminum-alloy frame, a foldable structure, dual 250W motors and a 24V 12Ah lithium battery. It is designed for rehabilitation centers, elderly-care facilities, hospitals, home-care mobility and medical equipment distributors.
Motor Power: 250W × 2
Battery: 24V 12Ah Lithium Battery
Theoretical Range: ≥15 km
Maximum Speed: ≤6 km/h
Safe Load Capacity: 100 kg
Net Weight: 22.8 kg Without Battery
Factory Direct | OEM/ODM | Sample Order Support | FOB/CIF Quotation
Send us your required quantity, destination country and preferred configuration for an accurate quotation.

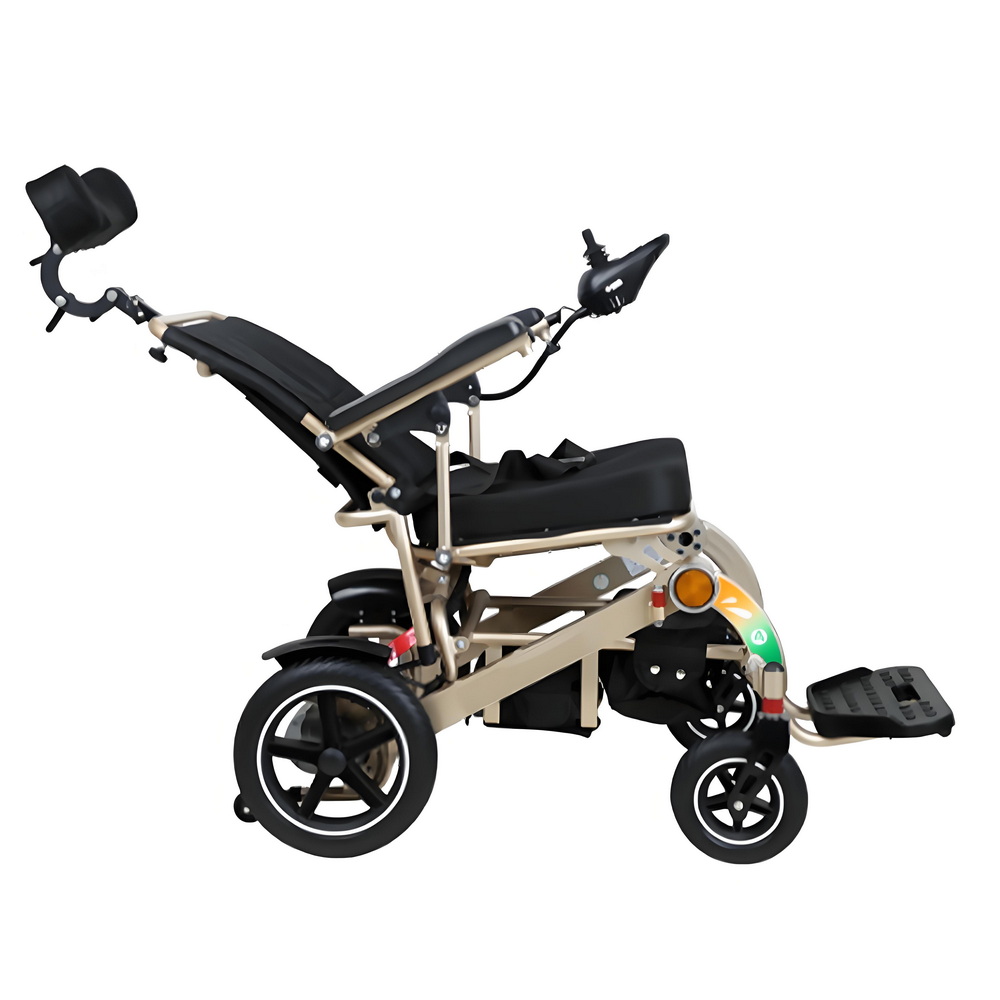

The reclining backrest provides a more comfortable seating and resting position for users who require longer sitting support. The configuration is suitable for rehabilitation, elderly care and daily assisted mobility.
The high-strength aluminum-alloy frame provides a practical balance between structural strength, portability and corrosion resistance. The wheelchair folds to approximately 60 × 32 × 78 cm for storage, transportation and export packing.
Two 250W motors provide powered mobility with a maximum speed of up to 6 km/h. The drive system is suitable for hospitals, rehabilitation centers, elderly-care facilities and daily mobility applications.
The electromagnetic braking system supports controlled stopping during everyday operation. The intelligent hill-hold function, rear anti-tip wheels and solid PU tires help improve stability on suitable indoor and outdoor surfaces.
The wheelchair is equipped with a 24V 12Ah lithium battery and provides a theoretical driving range of at least 15 km.
Actual driving range may vary depending on user weight, road conditions, slope, temperature, battery condition, tire condition and operating method.

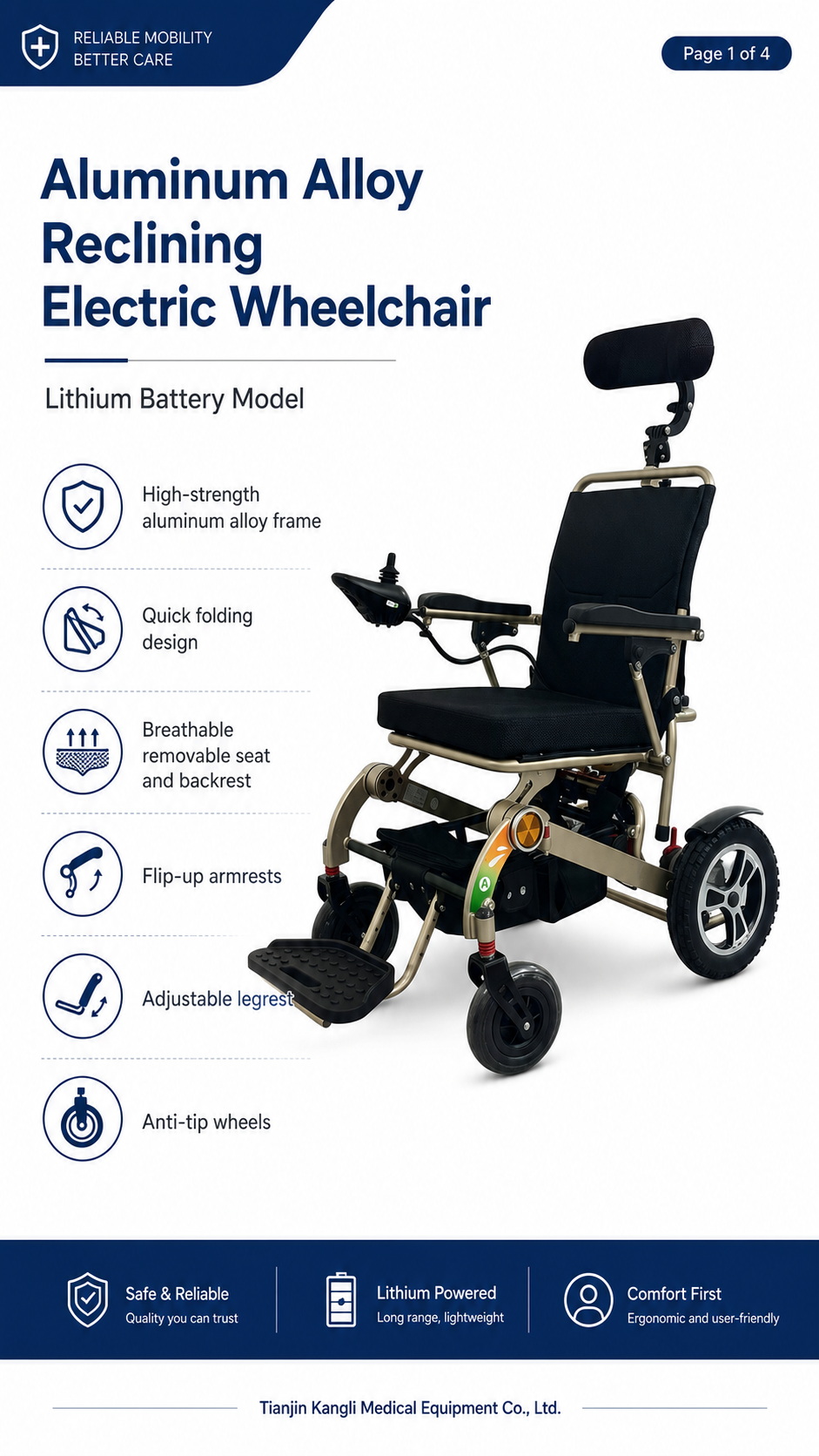

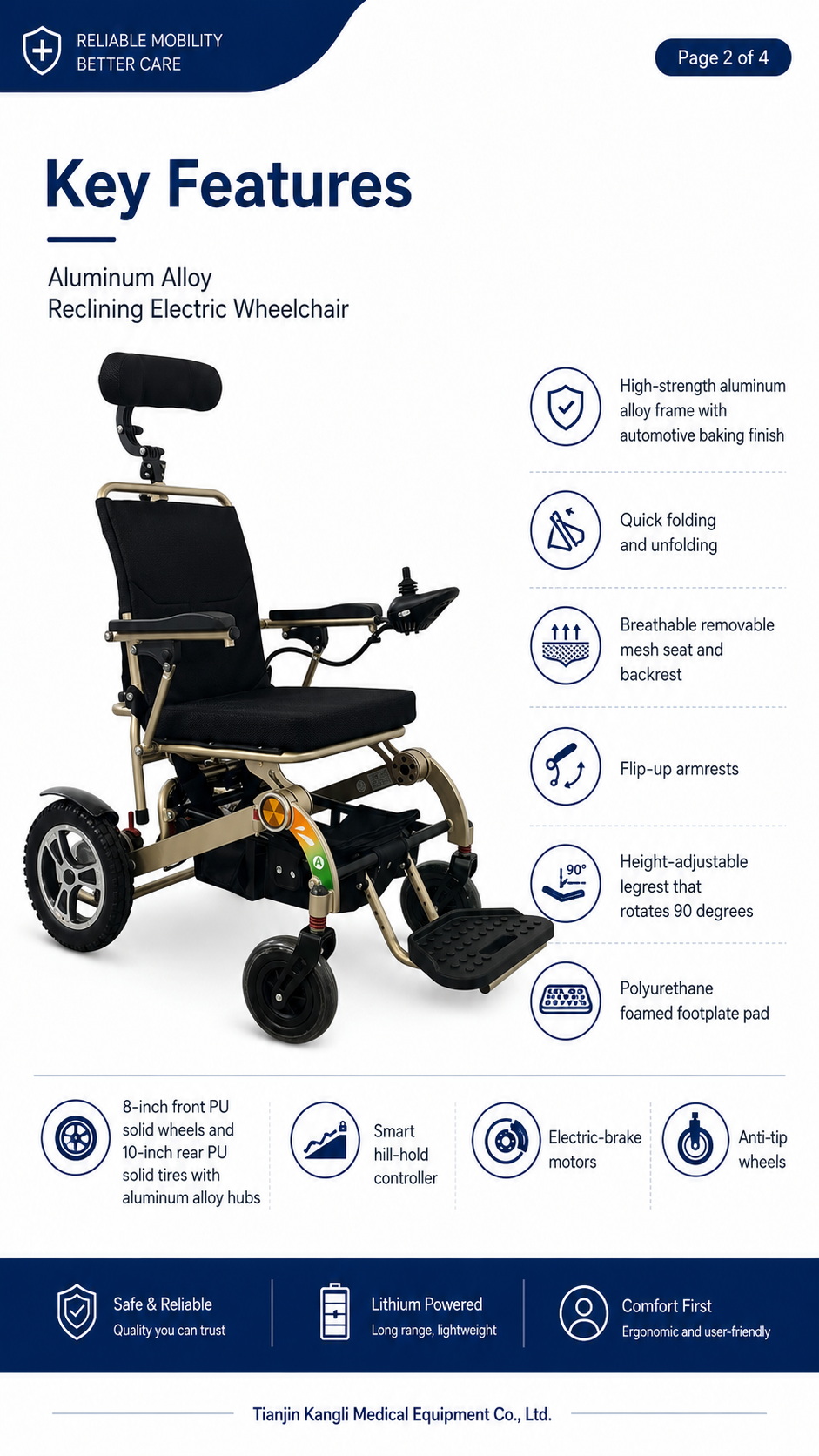

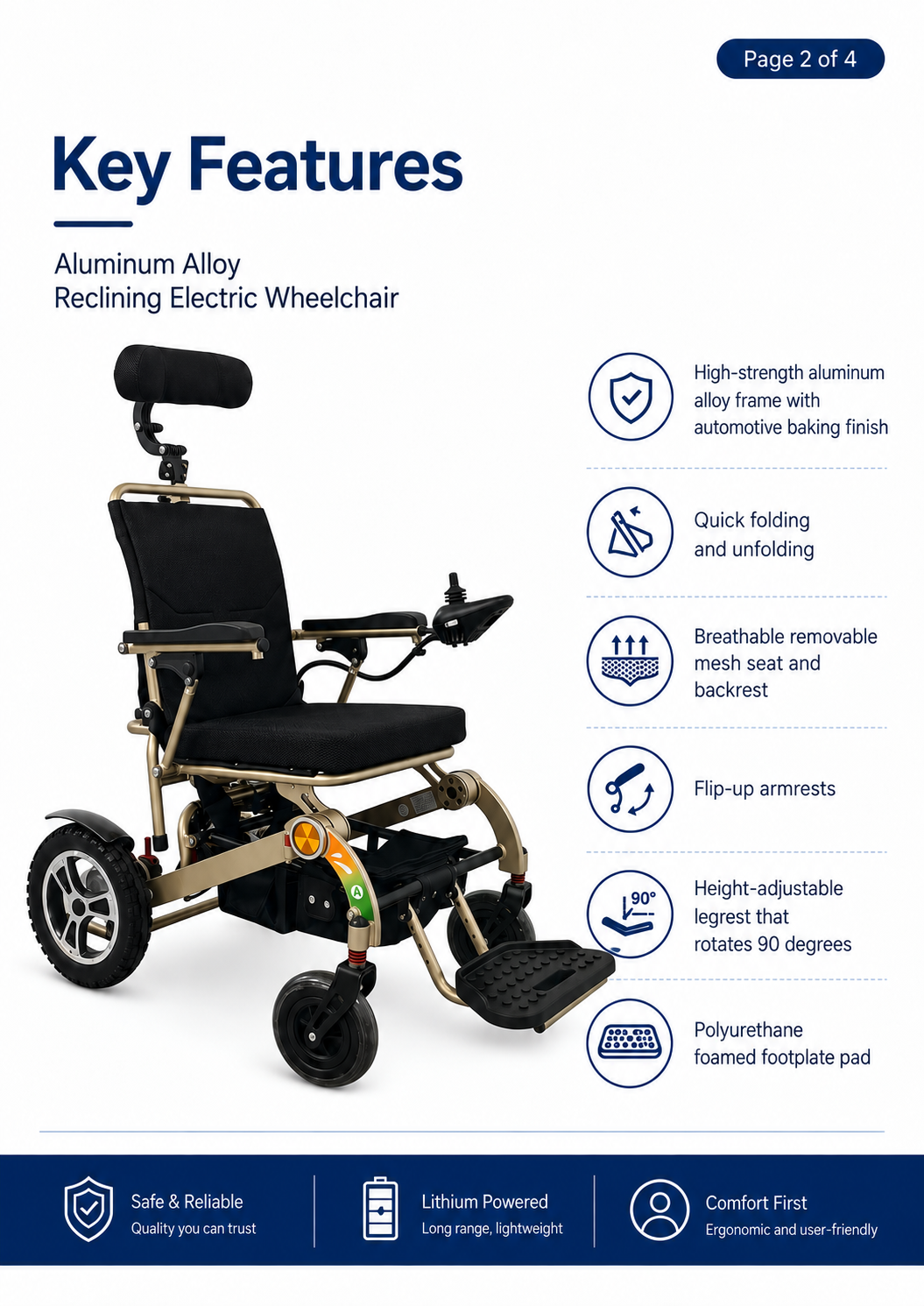

Flip-up armrests for easier side access
Height-adjustable footrests
90° rotating footrests
Removable breathable mesh cushions
Adjustable headrest
Rear anti-tip wheels
Compact folding structure

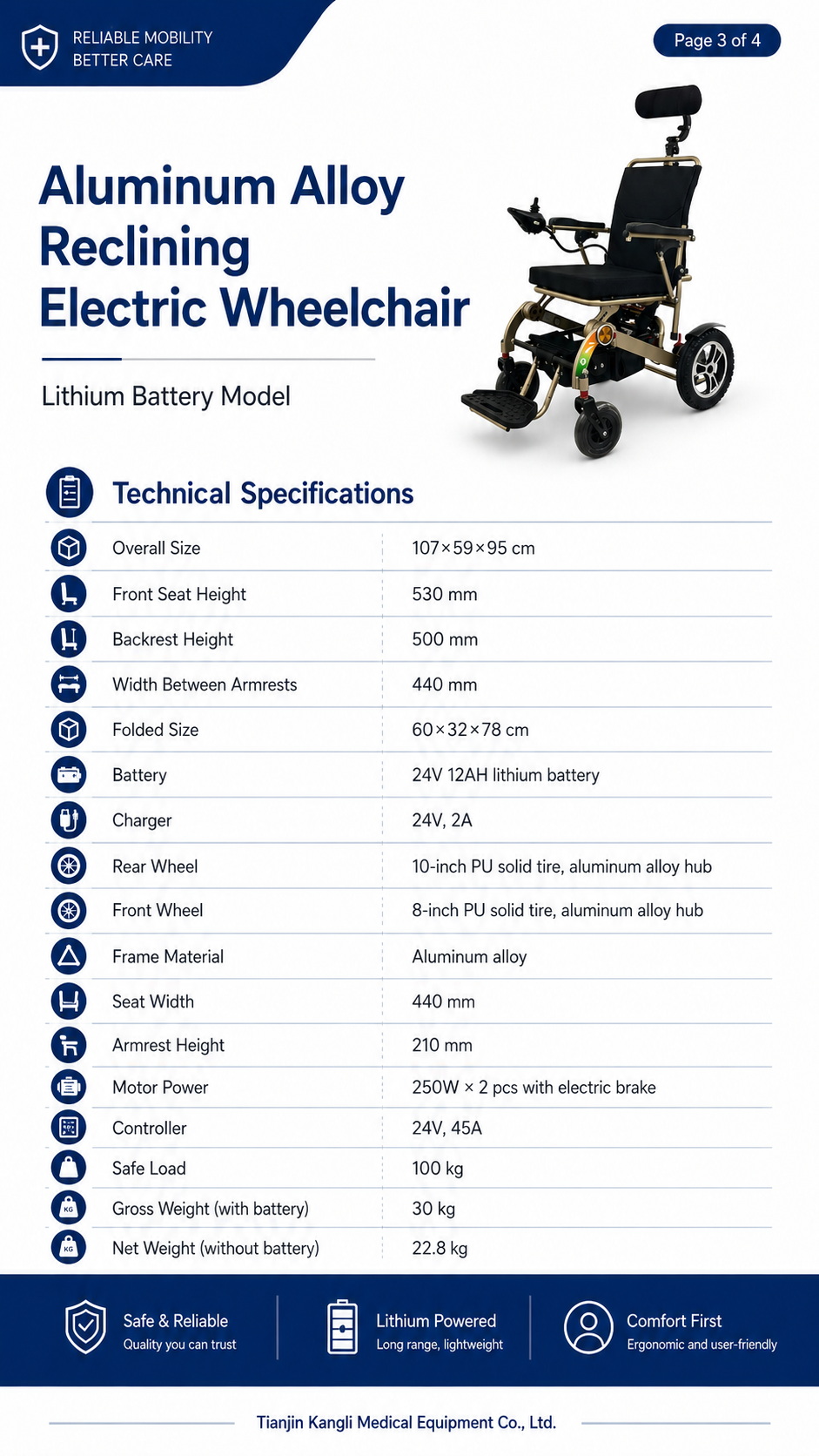

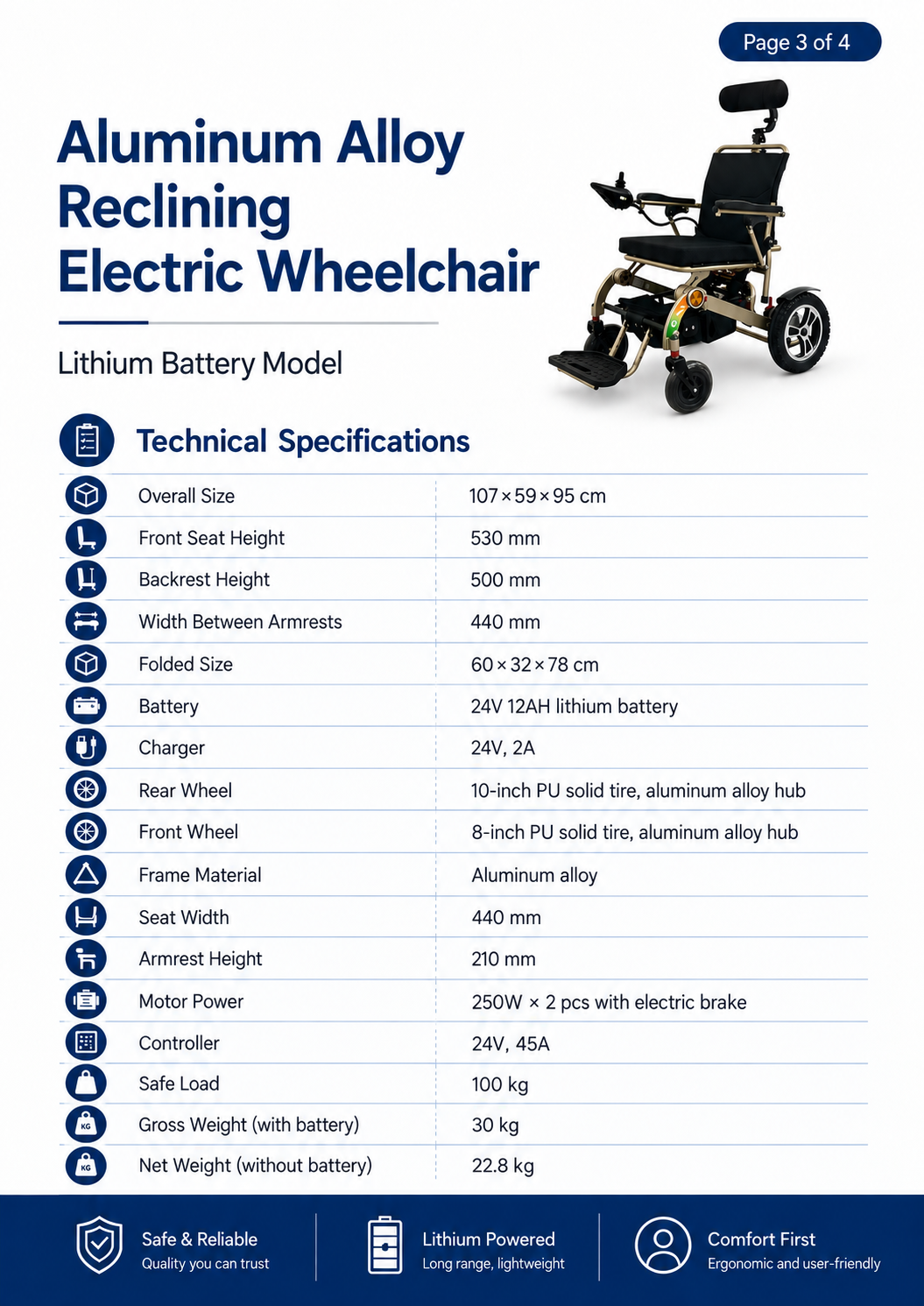

| Specification | Details |
|---|---|
| Product Type | Foldable Reclining Electric Wheelchair |
| Overall Size | 107 × 59 × 95 cm |
| Folded Size | 60 × 32 × 78 cm |
| Frame Material | High-Strength Aluminum Alloy |
| Surface Finish | Liquid Baking-Paint Finish |
| Seat Width | 440 mm |
| Width Between Armrests | 440 mm |
| Front Seat Height | 530 mm |
| Backrest Height | 500 mm |
| Armrest Height | 210 mm |
| Battery | 24V 12Ah Lithium Battery |
| Charger | 24V, 2A |
| Motor Power | 250W × 2 |
| Braking System | Electromagnetic Brakes |
| Controller | 24V, 45A |
| Front Wheels | 8-Inch Solid PU Tires with Aluminum-Alloy Hubs |
| Rear Wheels | 12-Inch Solid PU Tires with Aluminum-Alloy Hubs |
| Safe Load Capacity | 100 kg |
| Net Weight | 22.8 kg Without Battery |
| Gross Weight | 30 kg Including Battery |
| Maximum Speed | ≤6 km/h |
| Theoretical Driving Range | ≥15 km |
| Minimum Turning Radius | 1100 mm |

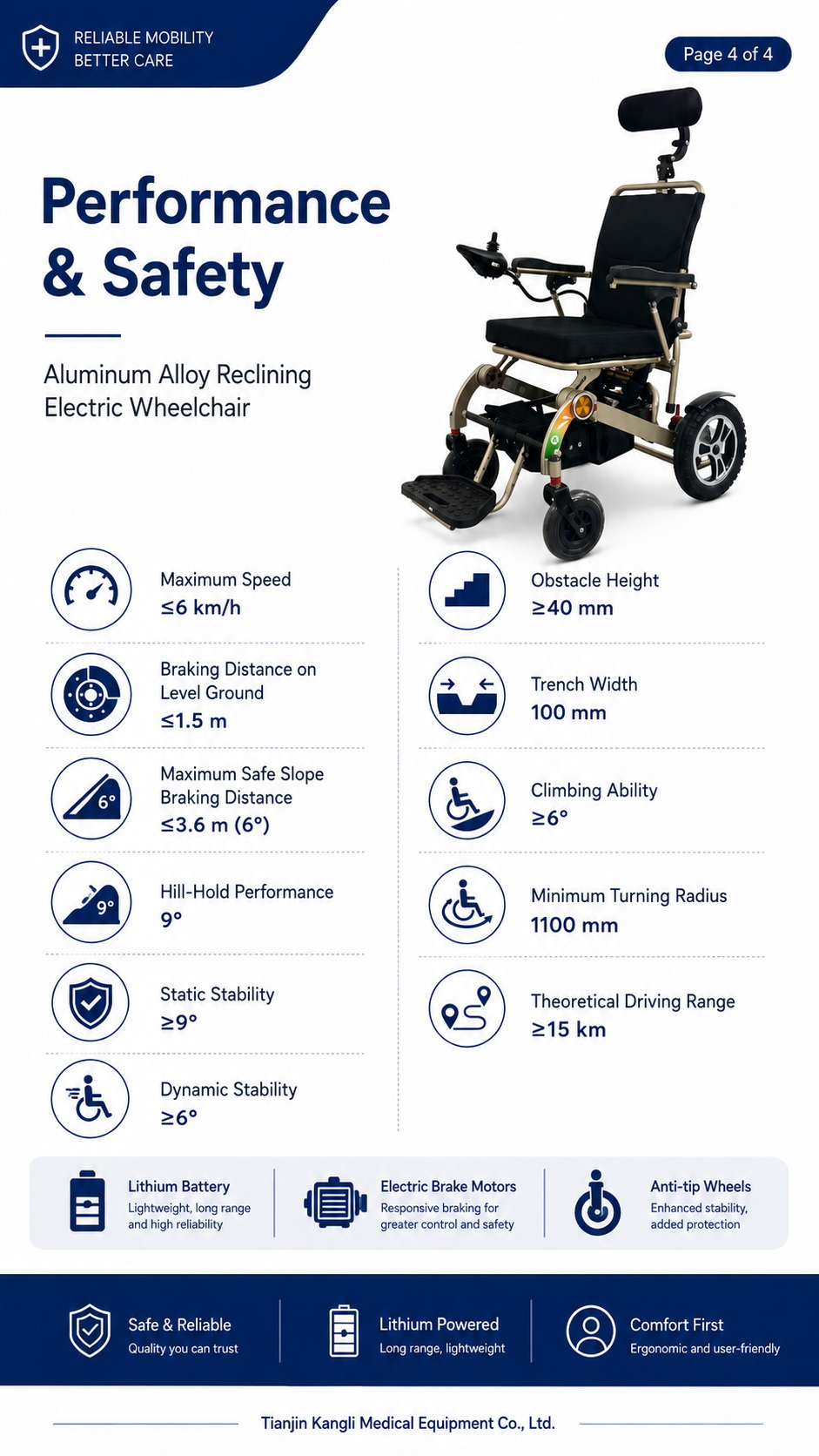

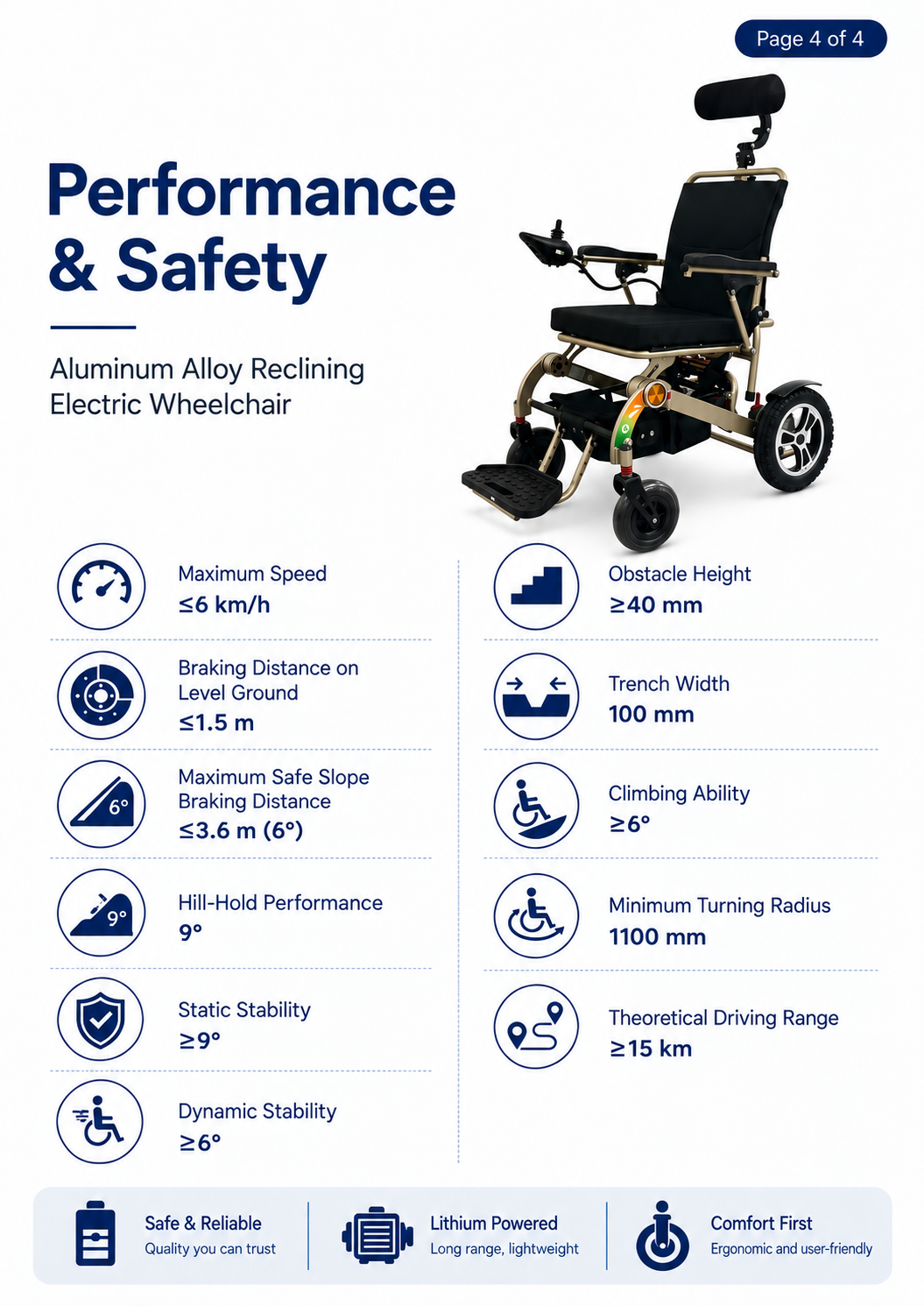

| Safety Item | Performance |
|---|---|
| Horizontal Braking Distance | ≤1.5 m |
| Safe Slope Braking Distance | ≤3.6 m at 6° |
| Hill-Hold Performance | 9° |
| Static Stability | ≥9° |
| Dynamic Stability | ≥6° |
| Climbing Ability | ≥6° |
| Obstacle-Climbing Height | ≥40 mm |
| Ditch-Crossing Width | 100 mm |
The above performance data should be evaluated together with user weight, road conditions, battery status, tire condition and operating environment.
This reclining aluminum electric wheelchair is suitable for:
Hospitals and rehabilitation centers
Nursing homes and elderly-care facilities
Home-care mobility
Medical equipment distributors
Rehabilitation equipment retailers
Institutional procurement projects
OEM and private-label wheelchair brands
Tianjing Kangli Medical Appliance Co., Ltd. supports international distributors, importers, healthcare facilities and project buyers with flexible OEM and export services.
Available customization options may include:
Customer logo and private label
Frame color selection
Upholstery color and material selection
Battery and charger configuration
Controller-side configuration
Product labels and instruction manuals
Wheelchair accessories
Customized export cartons
FOB and CIF quotation support
Spare-parts and after-sales support
Customization availability depends on the selected configuration and order quantity.
（已压缩）Certificate +iso & CE.pdfLithium battery documents, transport conditions and carrier requirements must be confirmed before shipment.
Battery-document availability and airline or shipping-line approval depend on the selected battery, destination country, transport route and carrier policy.
Please provide your destination country, destination seaport or airport and preferred shipping method before quotation.

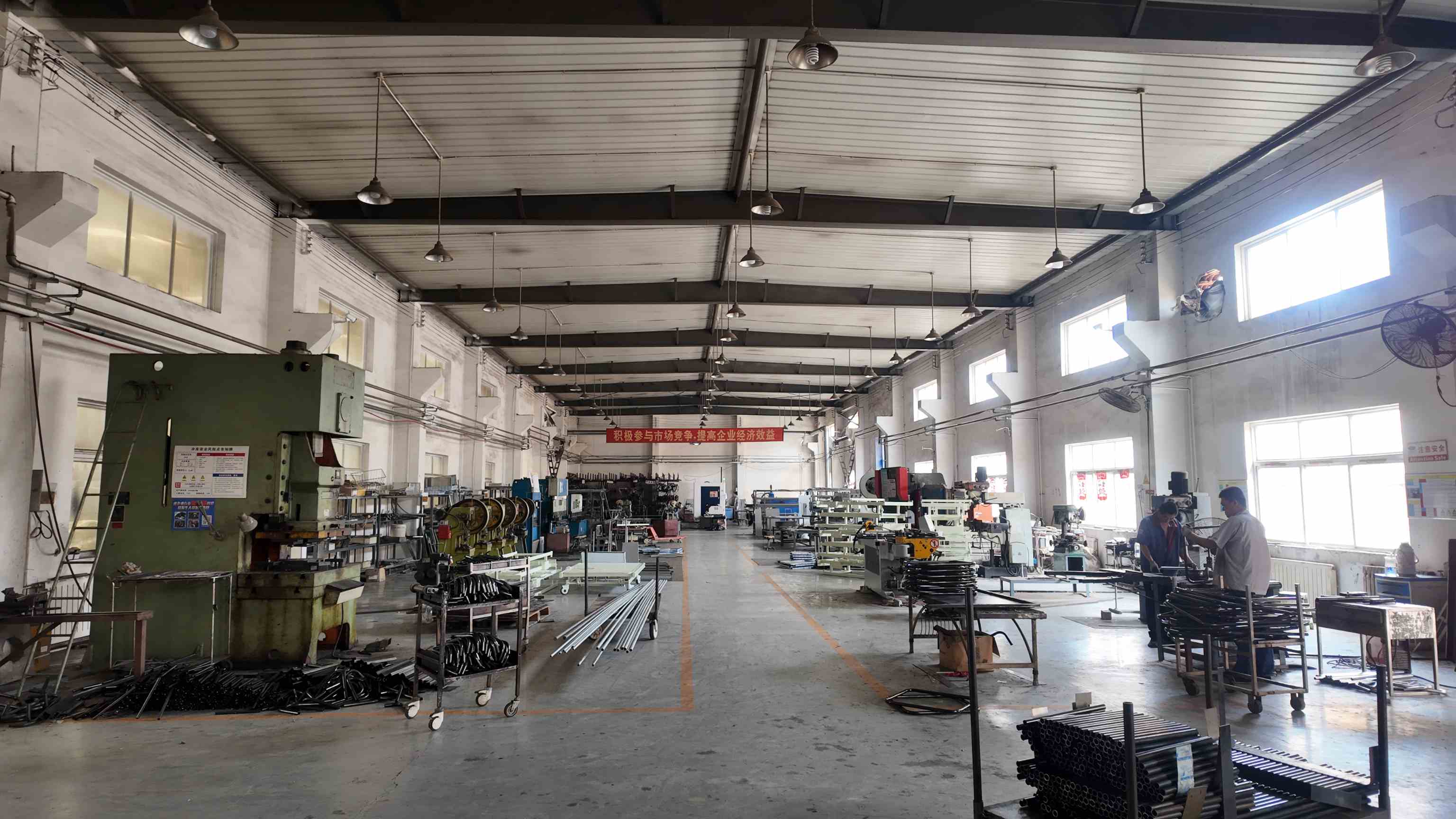

Tianjing Kangli Medical Appliance Co., Ltd. has manufactured medical equipment since 1998 and operates an approximately 20,000 m² production base in Tianjin, China.
We support distributors, importers, hospitals and institutional buyers with:
OEM and ODM production
Product configuration support
Export packaging
Technical documentation
Spare-parts supply
FOB and CIF quotations
After-sales support
Bulk-order and project procurement support
Yes. The aluminum-alloy frame folds to approximately 60 × 32 × 78 cm, making it more convenient for storage, transportation and export packing.
The theoretical driving range is at least 15 km. Actual range varies according to user weight, road conditions, slope, battery condition, temperature, tire condition and operating method.
Yes. Both 250W motors are equipped with an electromagnetic braking system.
Yes. Logo, frame color, upholstery, battery configuration, product labels, manuals, accessories and export packaging can be discussed according to order quantity and project requirements.
Battery-document availability is confirmed according to the selected battery, destination country, transport route and carrier requirements.
Please provide:
Required quantity
Destination country
Destination seaport or airport
Required battery configuration
Required accessories
Certification requirements
OEM or private-label requirements
Preferred trade term, such as FOB or CIF
Send us your quantity, destination country, destination seaport, battery requirements, accessories and OEM details for an accurate commercial quotation.
